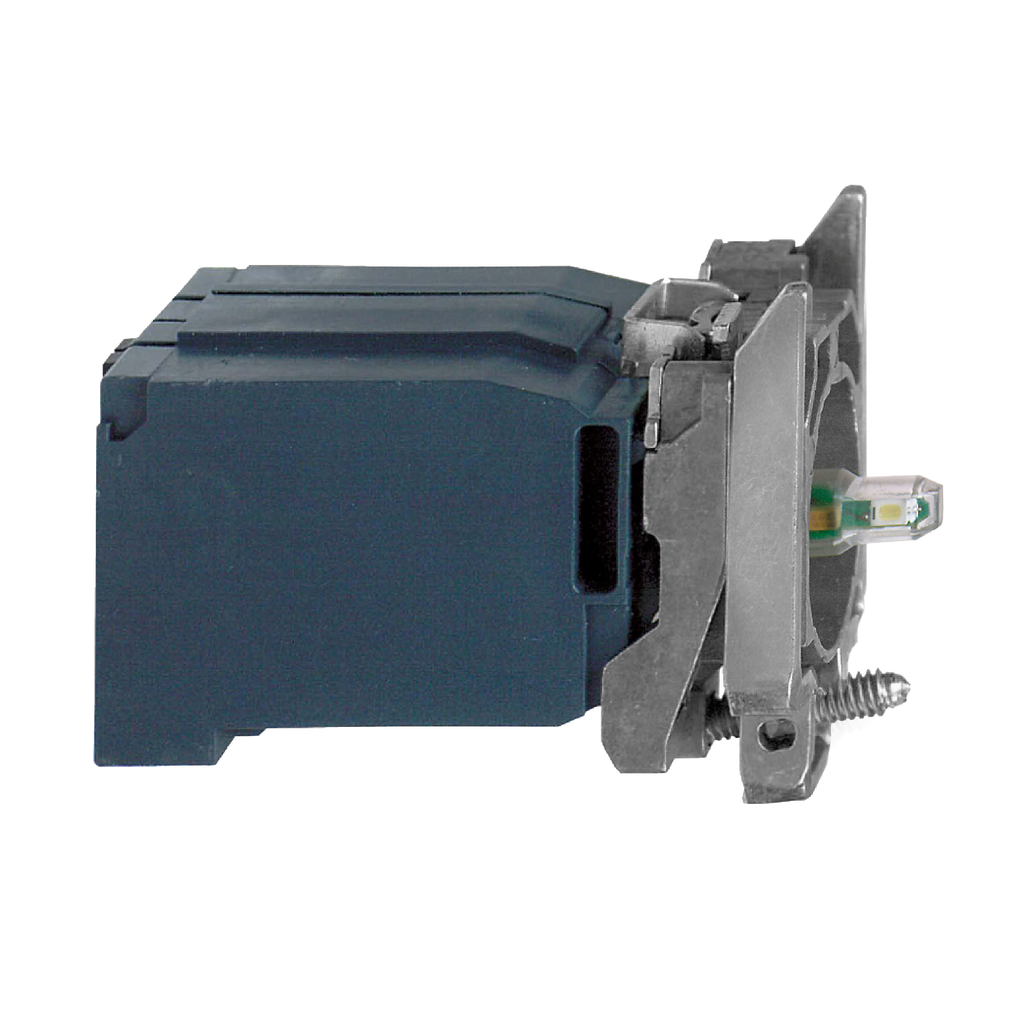

ZB4BV5D3
Complete body/light block assembly, Harmony XB4, green light, with body/fixing collar, BA9s LED bulb, 400V AC
Specifications
| Range Of Product | Harmony XB4 |
|---|---|
| Light Source | LED |
| Light Block Supply | via integral transformer 1.2 VA 6 V |
| Product Or Component Type | complete body/light block assembly |
| Fixing Collar Material | zamak |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end |
| Sale Per Indivisible Quantity | 1 |
| Light Source Colour | green |
| Device Short Name | ZB4 |
| [Us] Rated Supply Voltage | 400 V AC 50/60 Hz |
| Bulb Base | BA 9s |
| Warranty | 18 months |
| Mounting Of Block | front mounting |
| Terminals Description Iso N°1 | (X1-X2)PL |
| Electrical Composition Code | P4 |
| Net Weight | 0.134 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
| Cad Overall Height | 47 mm |
| [Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| Signalling Type | steady |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Cad Overall Width | 30 mm |
| Cad Overall Depth | 60 mm |
| Shape Of Screw Head | cross Philips no 1 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1808008EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1808008EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP20 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Electrical Shock Protection Class | class I IEC 60536 |
| Protective Treatment | TH |
