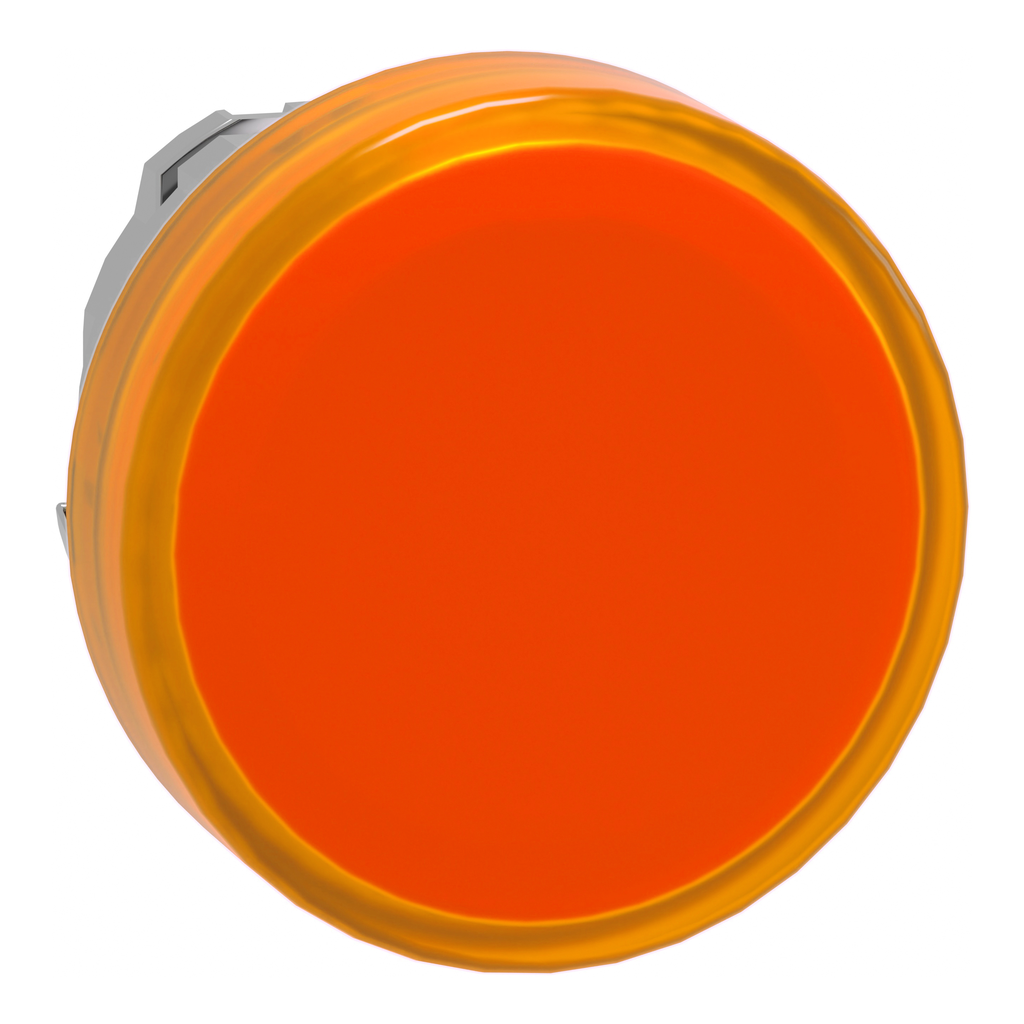

This Harmony XB4, plain lens head for pilot light with universal LED is orange. This head for universal LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Brand: Schneider Electric
Add to Quote CatalogueOperator Additional Information | with plain lens |
---|---|
Range Of Product | Harmony XB4 |
Mounting Diameter | 22 mm |
Product Or Component Type | head for pilot light |
Shape Of Signaling Unit Head | round |
Cap/Operator Or Lens Colour | orange |
Head Type | standard |
Sale Per Indivisible Quantity | 1 |
Bezel Material | chromium plated metal |
Product Compatibility | universal LED |
Device Short Name | ZB4 |
Warranty | 18 months |
Electrical Composition Code |
|
Net Weight | 0.026 kg |
Cad Overall Height | 29 mm |
Device Presentation | basic element |
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
Cad Overall Width | 29 mm |
Cad Overall Depth | 30 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1808008EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Reach Free Of Svhc | Yes |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1808008EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Ik Degree Of Protection | IK06 IEC 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection |
|
Ambient Air Temperature For Storage | -40-70 °C |
Overvoltage Category | class I IEC 60536 |
Nema Degree Of Protection |
|
Protective Treatment | TH |
