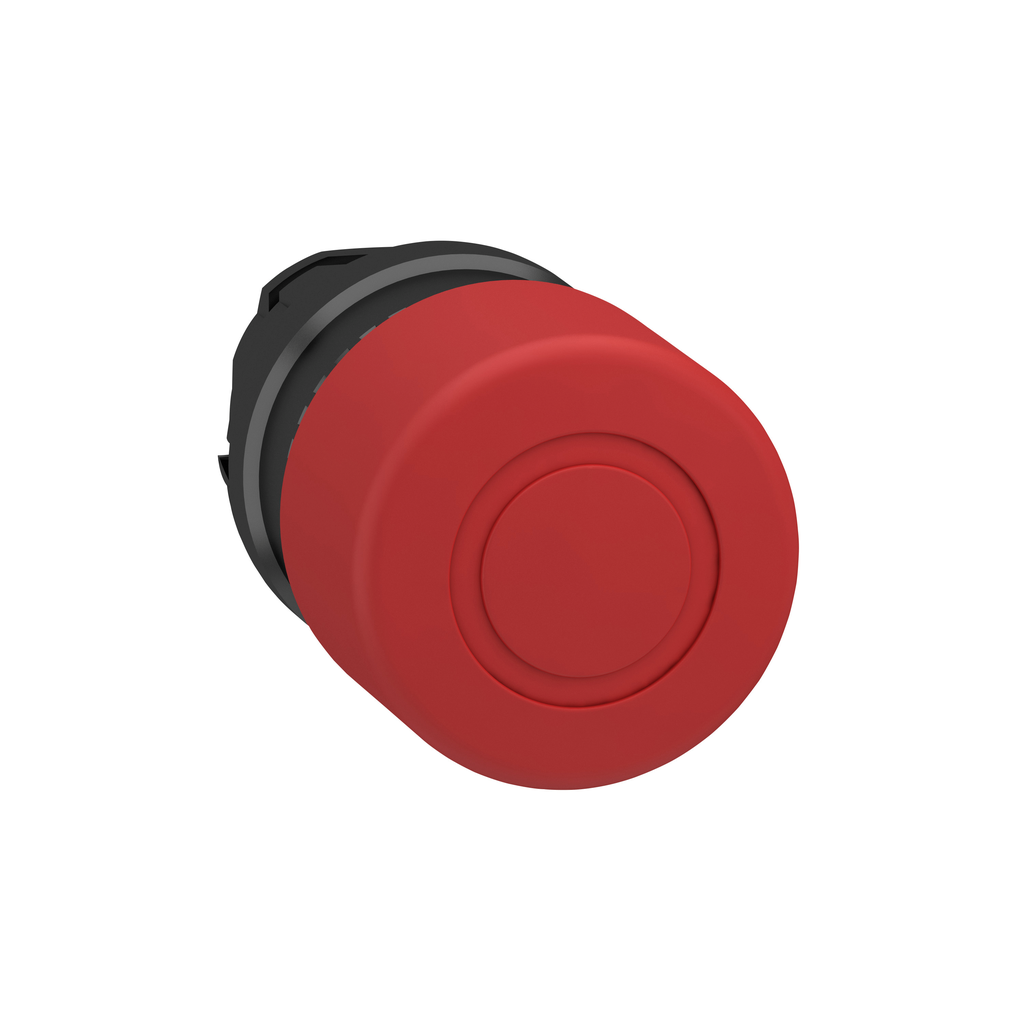

Head for emergency switching off push button, Harmony XB4, red, mushroom 30mm, 22mm, trigger/latching push-pull to release, unmarked
This Harmony XB4, emergency stop / shutdown 40mm mushroom red button head operates with a latched push-pull mechanism. This emergency stop / shutdown button head also called EMS (Emergency Machine Stop) and EMO (Emergency Off) provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off pushbuttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Reset | push-pull |
|---|---|
| Range Of Product | Harmony XB4 |
| Mounting Diameter | 22 mm |
| Type Of Operator | trigger action and mechanical latching |
| Product Or Component Type | head for emergency switching off push-button |
| Shape Of Signaling Unit Head | round |
| Head Type | standard |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | black metal |
| Operator Profile | red mushroom Ø 40 mm, unmarked |
| Device Short Name | ZB4 |
| Warranty | 18 months |
| Electrical Composition Code |
|
| Net Weight | 0.078 kg |
| Cad Overall Height | 40 mm |
| Device Presentation | basic element |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Mechanical Durability | 300000 cycles |
| Cad Overall Width | 40 mm |
| Cad Overall Depth | 56 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2201004EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2201004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ik Degree Of Protection | IK06 IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class I IEC 61140 |
| Protective Treatment | TH |
