ZB4BS5540

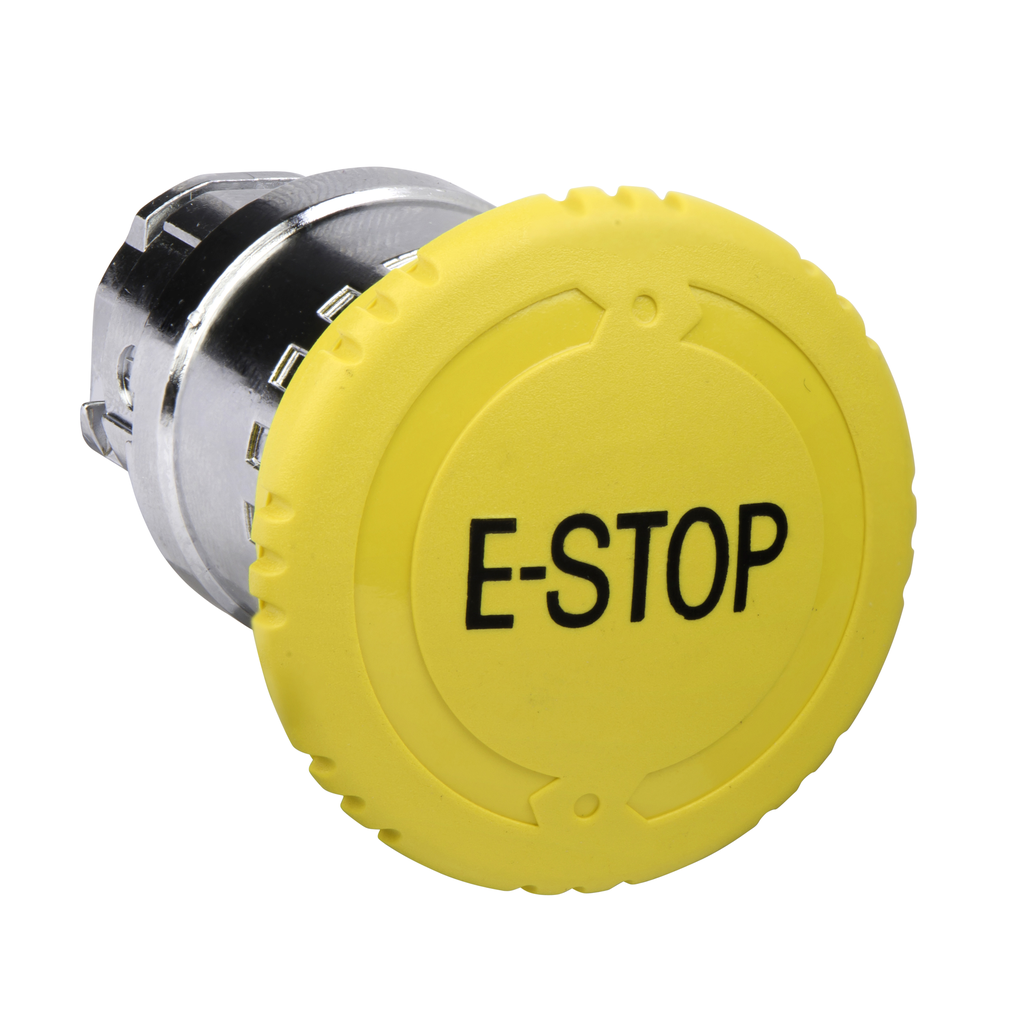

Head for non illuminated push button, Harmony XB4, yellow mushroom Ø 40 mm pushbutton Ø22 mm with marking
Specifications
| Reset | turn to release |
|---|---|
| Sale Per Indivisible Quantity | 1 |
| Range Of Product | Harmony XB4 |
| Bezel Material | chromium plated metal |
| Mounting Diameter | 22 mm |
| Type Of Operator | latching |
| Product Or Component Type | head for non-illuminated push-button |
| Shape Of Signaling Unit Head | round |
| Device Short Name | ZB4 |
| Head Type | standard |
| Warranty | 18 months |
| Mechanical Durability | 300000 cycles |
| Electrical Composition Code |
|
| Cad Overall Width | 40 mm |
| Cad Overall Depth | 57 mm |
| Net Weight | 0.07 kg |
| Cad Overall Height | 40 mm |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2201004EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2201004EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Product Certifications |
|
| Ik Degree Of Protection | IK06 IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class I IEC 60536 |
| Standards |
|
| Nema Degree Of Protection |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Protective Treatment | TH |
| Ip Degree Of Protection |
|
