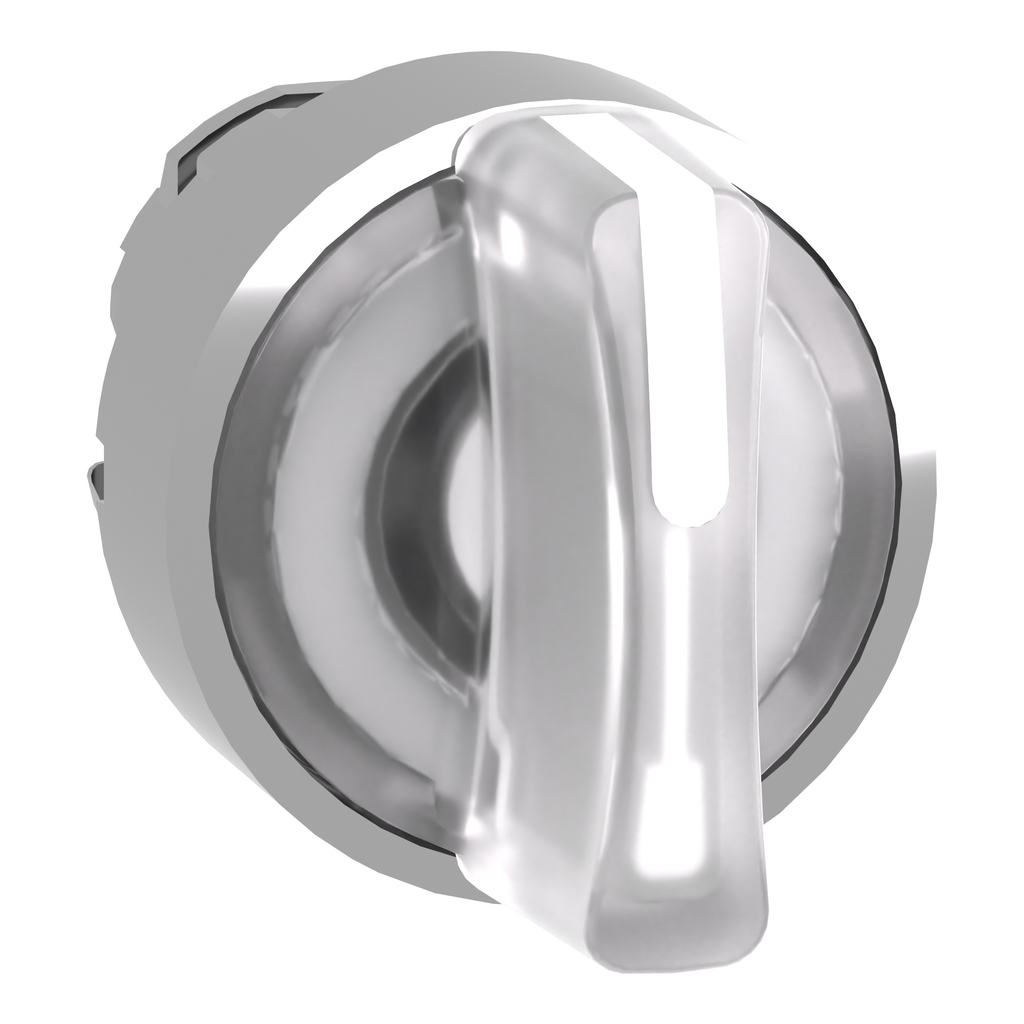

This Harmony XB4, illuminated white selector switch head for universal LED with standard handle has 3 positions, operates with stay-put mechanism. This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony XB4 |
---|---|
Mounting Diameter | 22 mm |
Type Of Operator | stay put |
Product Or Component Type | head for illuminated selector switch |
Shape Of Signaling Unit Head | round |
Head Type | standard |
Sale Per Indivisible Quantity | 1 |
Bezel Material | chromium plated metal |
Operator Profile | white standard handle |
Operator Position Information | 3 positions +/- 45° |
Product Compatibility | universal LED |
Device Short Name | ZB4 |
Warranty | 18 months |
Electrical Composition Code |
|
Net Weight | 0.036 kg |
Cad Overall Height | 29 mm |
Device Presentation | basic element |
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
Mechanical Durability | 500000 cycles |
Cad Overall Width | 29 mm |
Cad Overall Depth | 43 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1808008EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1808008EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK04 IEC 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection |
|
Ambient Air Temperature For Storage | -40-70 °C |
Overvoltage Category | class I IEC 60536 |
Nema Degree Of Protection |
|
Protective Treatment | TH |
