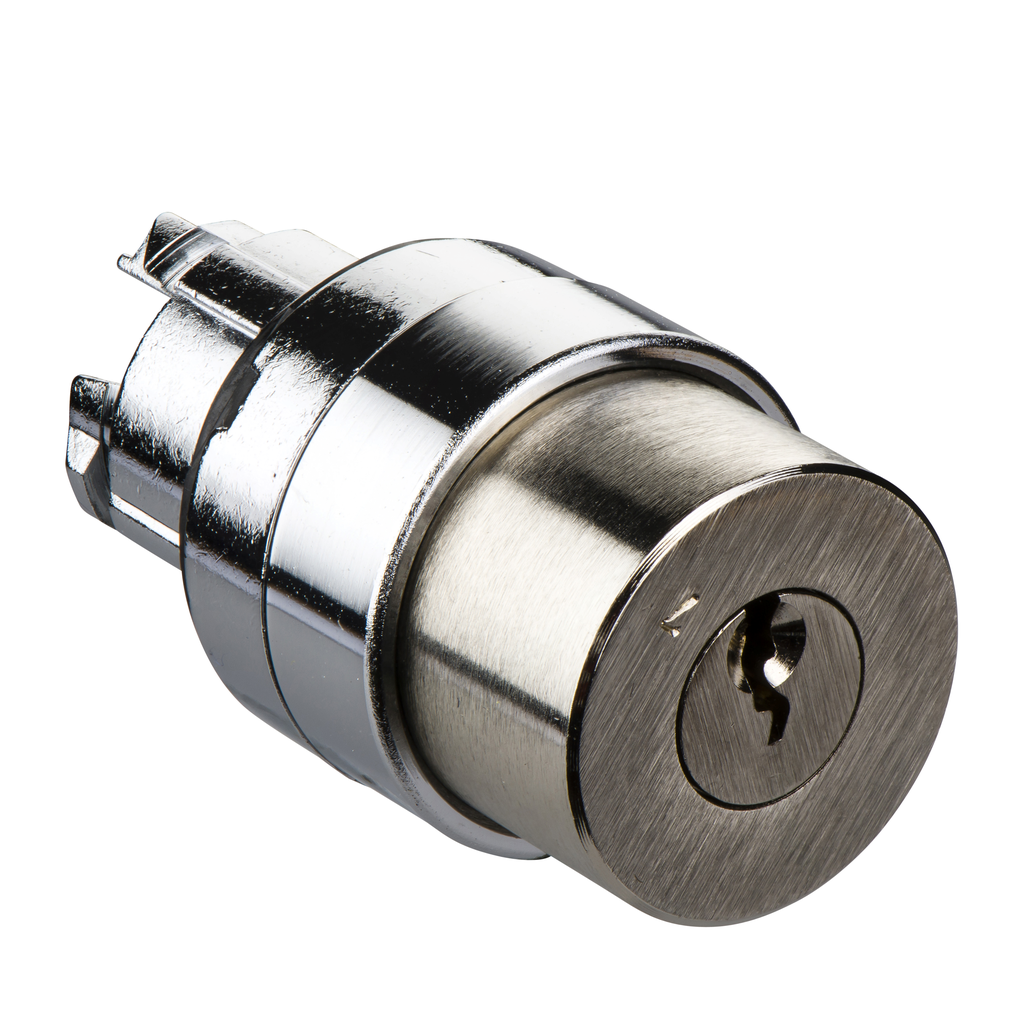

ZB4BG4E7
Head for key selector switch, Harmony XB4, bks E7
Specifications
| Key Withdrawal Position | in any position |
|---|---|
| Sale Per Indivisible Quantity | 1 |
| Range Of Product | Harmony XB4 |
| Bezel Material | chromium plated metal |
| Operator Profile | black key switch |
| Operator Position Information | 2 positions 90° |
| Mounting Diameter | 22 mm |
| Product Or Component Type | head for key selector switch |
| Shape Of Signaling Unit Head | round |
| Device Short Name | ZB4 |
| Type Of Keylock | special key |
| Head Type | standard |
| Warranty | 18 months |
| Mechanical Durability | 1000000 cycles |
| Electrical Composition Code |
|
| Cad Overall Width | 29 mm |
| Cad Overall Depth | 72 mm |
| Net Weight | 0.098 kg |
| Cad Overall Height | 29 mm |
| Device Presentation | basic element |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1808008EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1808008EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class I IEC 60536 |
| Standards |
|
| Nema Degree Of Protection |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Protective Treatment | TH |
| Ip Degree Of Protection |
|
