Push button head, Harmony XB4, metal, flush, black, 22mm, spring return, for harsh environment, marking-legend rotated 90 degree

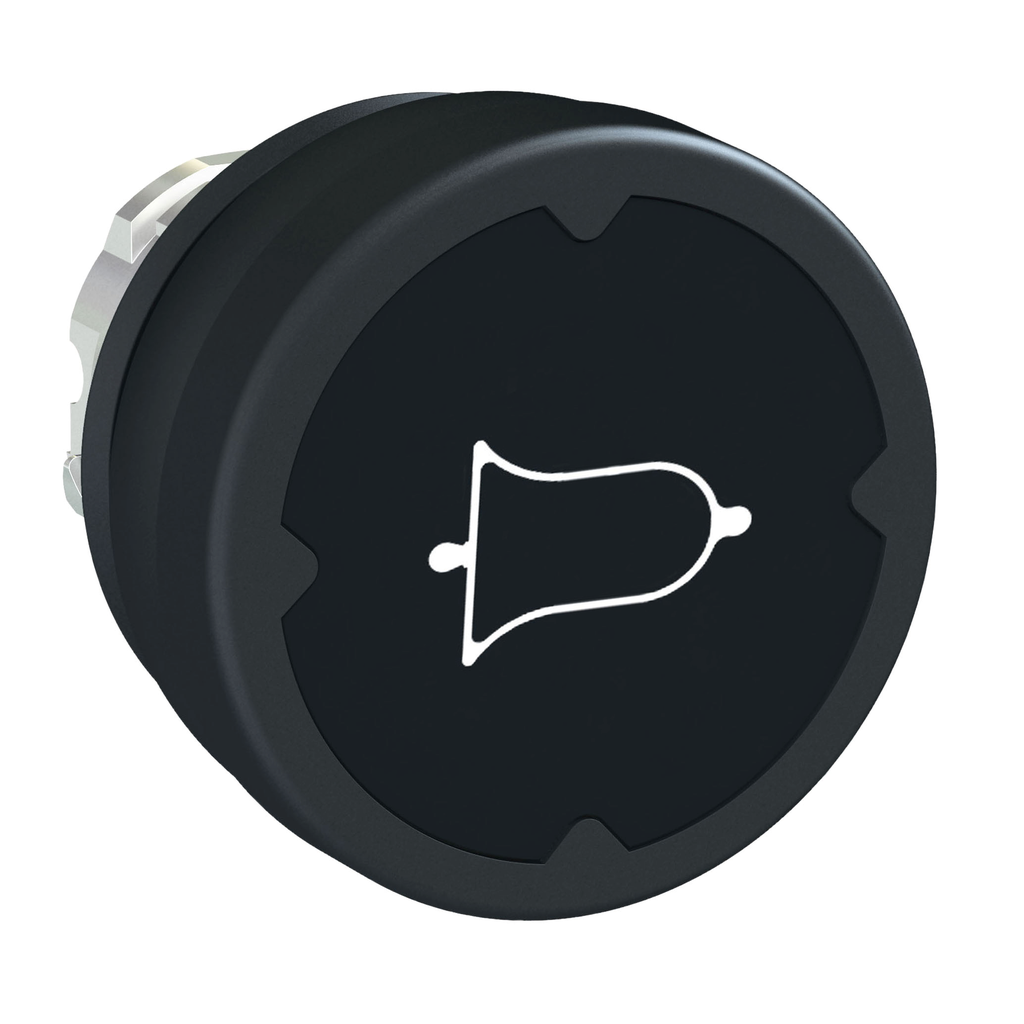

This head for push button is a separate component of the range of control and signaling units, Harmony XB4, metal, diameter 22mm. It has a chromium-plated metal bezel. It is supplied with a black flush cap, diameter 37mm, marked type H001 white, with bell symbol. The marking-legend is rotated 90°. This head allows the associated contact block to be mounted in horizontal position (instead of vertical). It operates with with spring return mechanism. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP69 / IP69K, making it ideal for operation in harsh environments. It weighs 36g. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XB4 |
|---|---|
| Mounting Diameter | 22 mm |
| Product Or Component Type | head for push-button |
| Head Type | standard |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | chromium plated metal |
| Device Short Name | ZB4 |
| Warranty | 18 months |
| Operator Additional Information | horizontal mounting |
| Main Group | harsh environment |
| Type Of Operator | spring return |
| Electrical Composition Code |
|
| Colour Of Marking | white |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
| Shape Of Signaling Unit Head | round |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Net Weight | 0.036 kg |
| Cad Overall Height | 18.5 mm |
| Cap/Operator Or Lens Colour | black |
| Operator Profile | black flush, type H001 white) |
| Mechanical Durability | 3000000 cycles |
| Marking | type H001 |
| Electrical Shock Protection Class | class I IEC 61140 |
| Cad Overall Width | 37 mm |
| Cad Overall Depth | 37 mm |
| Group Of Product | flush marked type H001 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1808008EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1808008EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ik Degree Of Protection | IK06 IEC 62262 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Ip Degree Of Protection |
|
| Resistance To High Pressure Washer | 90 Pa 82.5 °C |
| Ambient Air Temperature For Storage | -40-85 °C |
| Nema Degree Of Protection |
|
