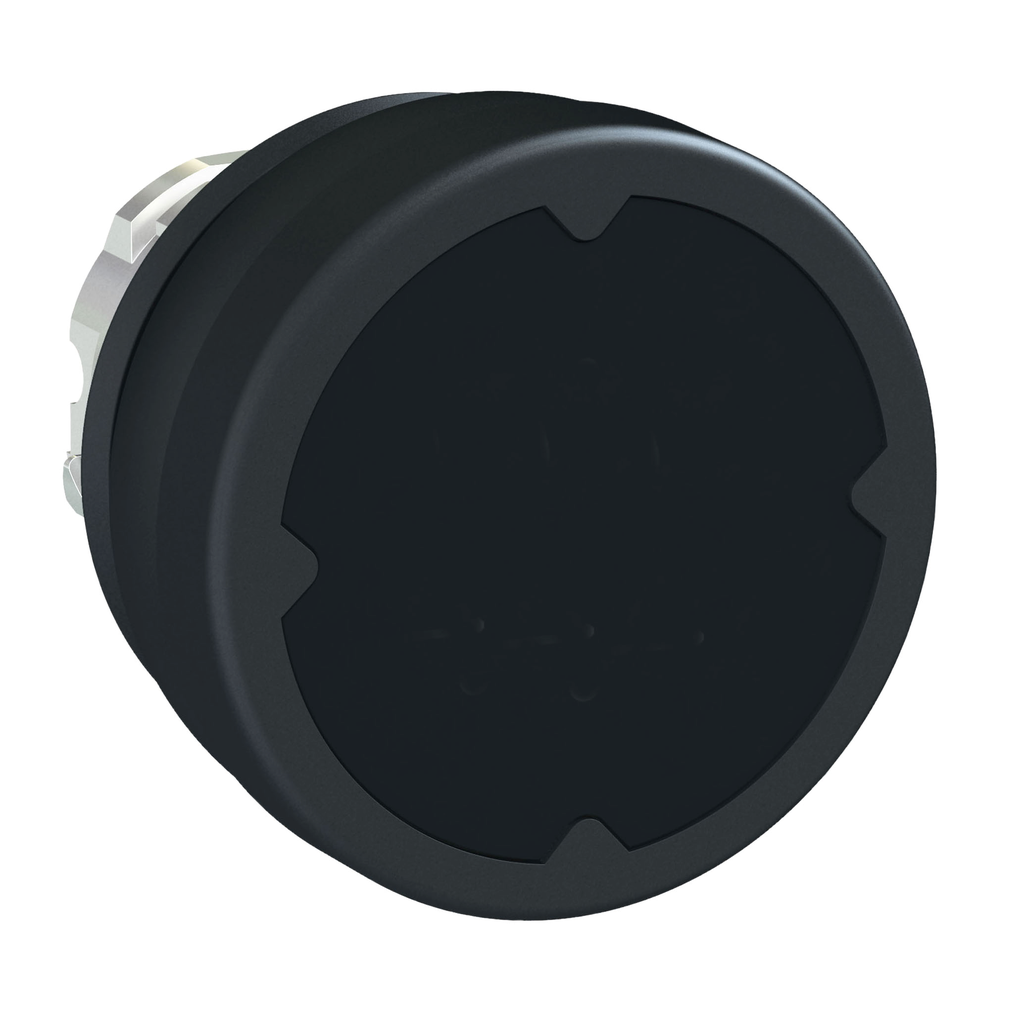

This Harmony XB4, flush black button head operates with a spring return / impulse mechanism, is used in harsh environment. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony XB4 |
---|---|
Mounting Diameter | 22 mm |
Product Or Component Type | head for push-button |
Head Type | standard |
Sale Per Indivisible Quantity | 1 |
Bezel Material | chromium plated metal |
Device Short Name | ZB4 |
Warranty | 18 months |
Operator Additional Information |
|
Main Group | harsh environment |
Type Of Operator | spring return |
Electrical Composition Code |
|
Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
Shape Of Signaling Unit Head | round |
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Net Weight | 0.036 kg |
Cad Overall Height | 18.5 mm |
Device Presentation | basic element |
Cap/Operator Or Lens Colour | black |
Operator Profile | black flush, unmarked |
Mechanical Durability | 10000000 cycles |
Marking | unmarked |
Electrical Shock Protection Class | class I IEC 61140 |
Cad Overall Width | 37 mm |
Cad Overall Depth | 37 mm |
Group Of Product | flush unmarked |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1808008EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1808008EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK06 IEC 62262 |
Ambient Air Temperature For Operation | -40-70 °C |
Standards |
|
Ip Degree Of Protection |
|
Resistance To High Pressure Washer | 90 Pa 82.5 °C |
Ambient Air Temperature For Storage | -40-85 °C |
Nema Degree Of Protection |
|
