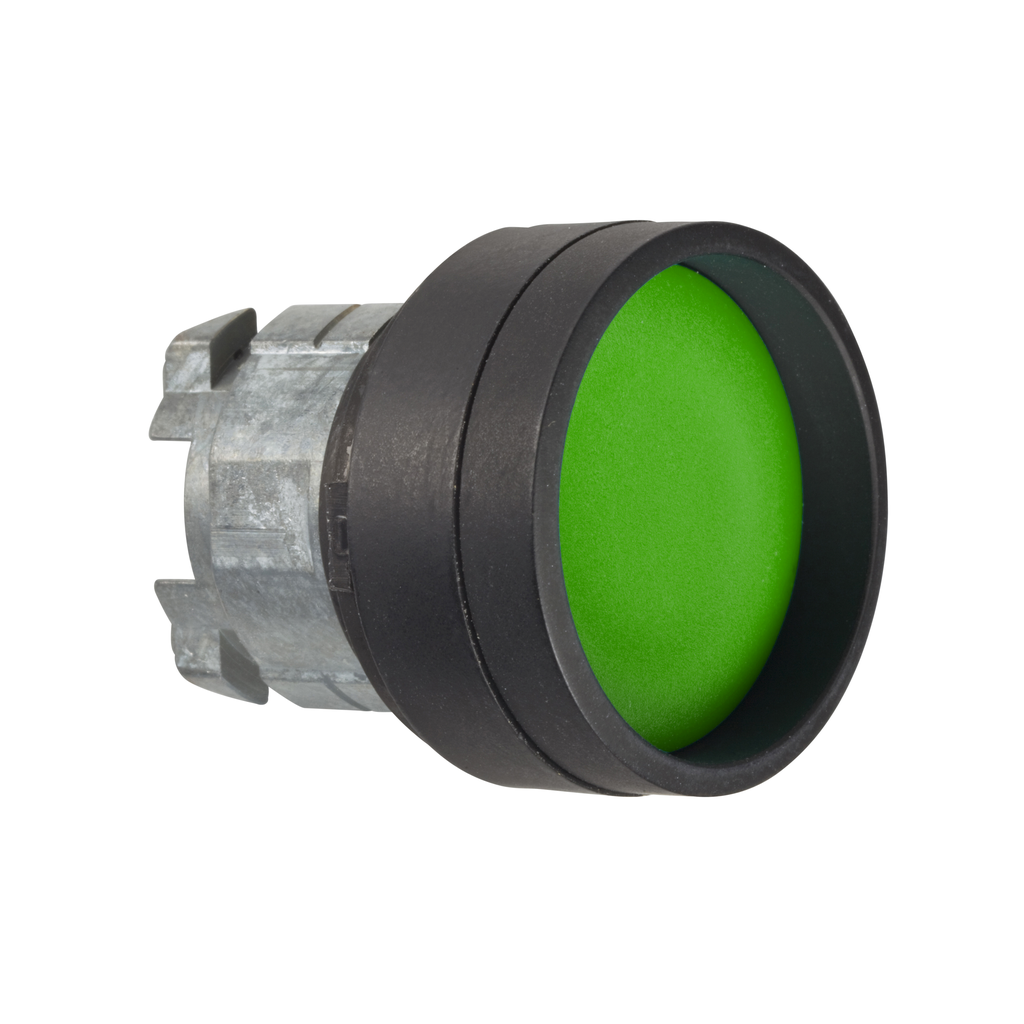

This Harmony XB4, recessed high guard green button head operates with a spring return / impulse mechanism. This button head provides a robust and ergonomic interface for controlling your machines thanks to its recessed high guard head. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly and is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Brand: Schneider Electric
Add to Quote CatalogueOperator Additional Information | high guard |
---|---|
Range Of Product | Harmony XB4 |
Mounting Diameter | 22 mm |
Type Of Operator | spring return |
Product Or Component Type | head for non-illuminated push-button |
Shape Of Signaling Unit Head | round |
Head Type | standard |
Sale Per Indivisible Quantity | 1 |
Bezel Material | black metal |
Operator Profile | green recessed, unmarked |
Device Short Name | ZB4 |
Warranty | 18 months |
Electrical Composition Code |
|
Cad Overall Height | 29 mm |
Device Presentation | basic element |
Mechanical Durability | 10000000 cycles |
Cad Overall Width | 29 mm |
Cad Overall Depth | 31 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1808008EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1808008EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK06 IEC 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection |
|
Ambient Air Temperature For Storage | -40-70 °C |
Overvoltage Category | class I IEC 60536 |
Nema Degree Of Protection |
|
Protective Treatment | TH |
