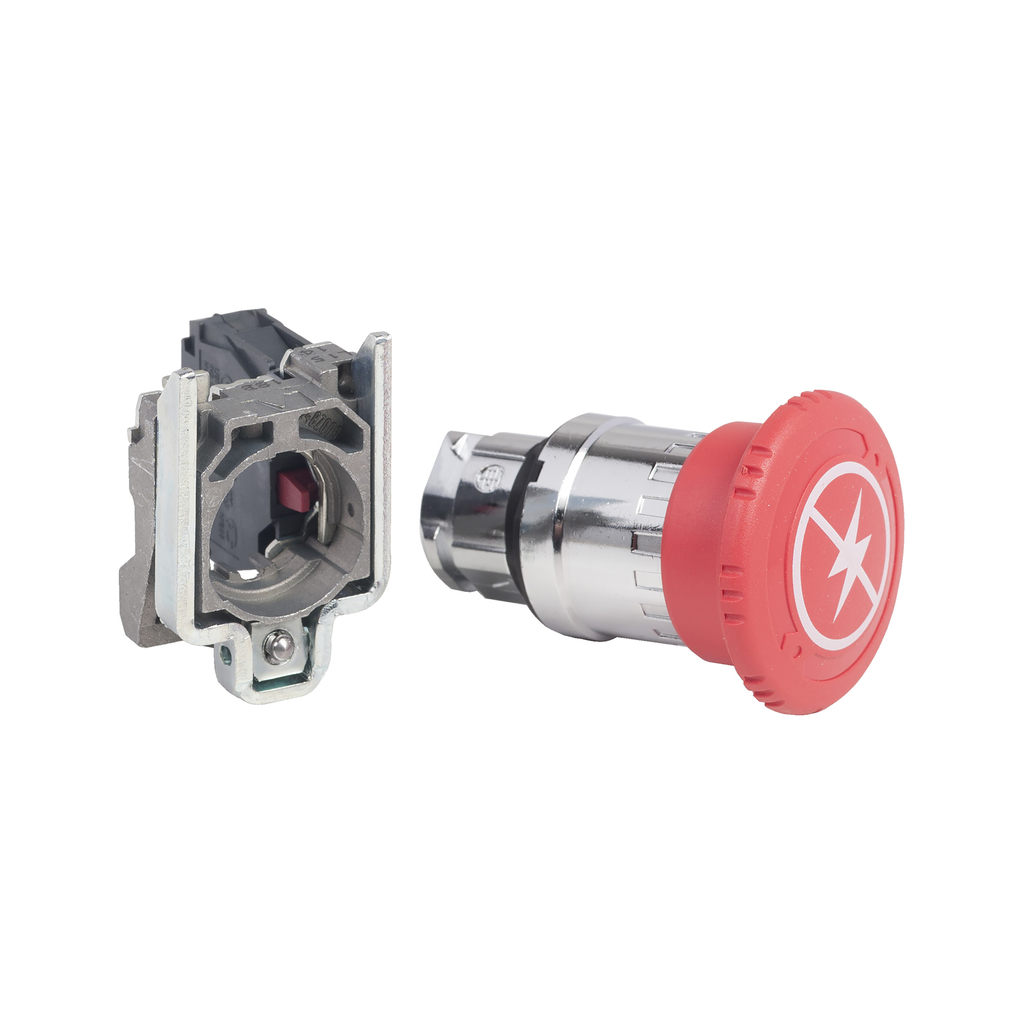

ZB4AEQ4020
Head for non illuminated push button, Harmony XB4, pushbutton 22mm, control station, customer special
This head for push button is a separate component of the range of control and signaling units, Harmony XB4, metal, diameter 22mm. It has a chromium-plated metal bezel. It is supplied with a red mushroom. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Sale Per Indivisible Quantity | 1 |
|---|---|
| Range Of Product | Harmony XB4 |
| Mounting Diameter | 22 mm |
| Product Or Component Type | head for non-illuminated push-button |
| Device Short Name | ZB4 |
| Head Type | standard |
| Warranty | 18 months |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1808008EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class I IEC 60536 |
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Protective Treatment | TH |
| Ip Degree Of Protection | IP66 IEC 60529 |
