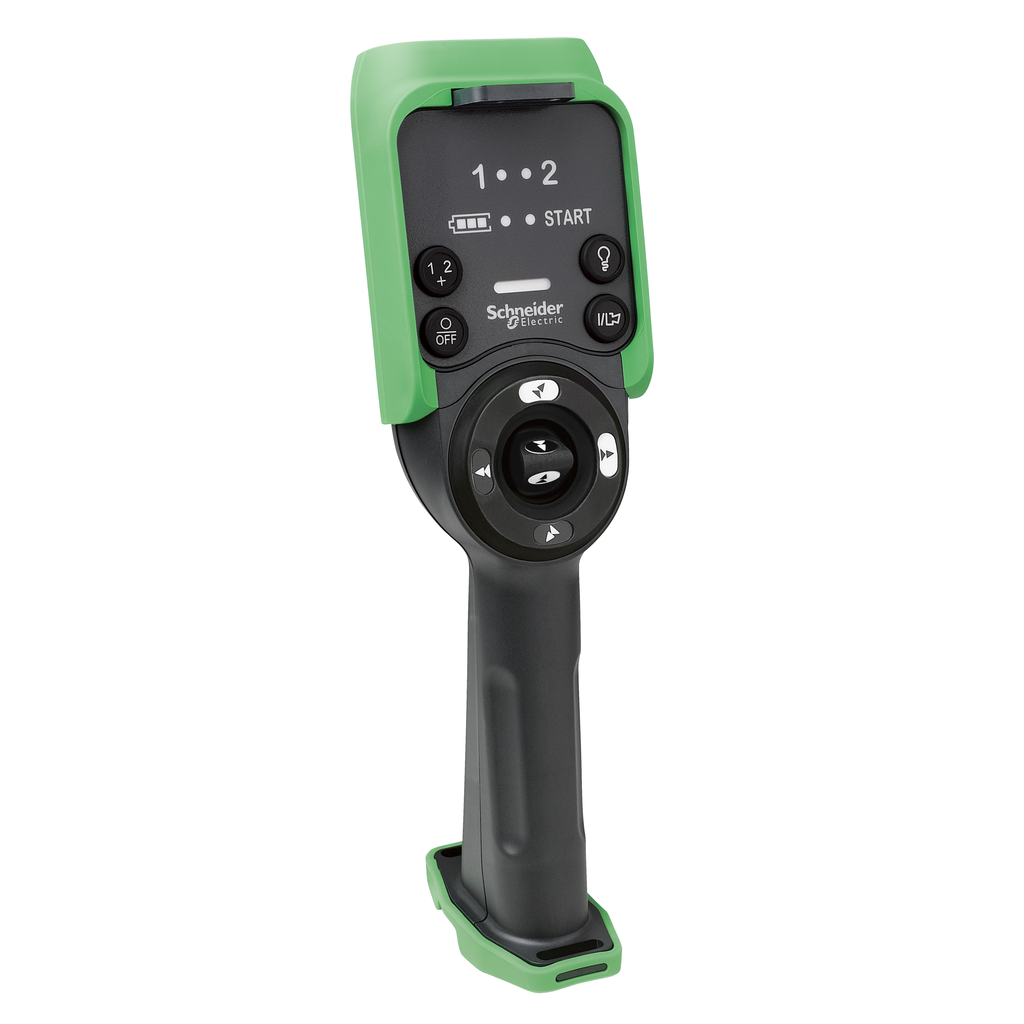

This Harmony eXLhoist / XAR black remote control (transmitter) has 2 configurable auxiliary push buttons with 6 configurable motion push buttons. It has 4 LEDs. This remote control (transmitter) with LEDs is designed as a transmitter for wireless remote control system. It has 6 configurable motion push buttons and 2 configurable auxiliary push buttons and can operate at a distance of 50m. It is compatible with base station ZARB12W and ZARB12H. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony eXLhoist |
---|---|
Control Button Type |
|
Product Or Component Type | hand-held remote control |
Device Short Name | ZART |
Mechanical Robustness | free fall resistance 4.5 m IEC 60068-2-27 |
Function Available | accelerometer function |
Height | 340 mm |
Maximum Sensing Distance | 100 m in free field |
Service Life | 5 year(s) |
Transmission Frequency | 2.4 GHz |
Material |
|
Mechanical Durability | 5000000 cycles |
Autonomy | 30 h |
Display Type | 4 LEDs |
Width | 100 mm |
Depth | 90 mm |
Operating Distance | 50 m |
Response Time | < 300 ms full duplex |
Net Weight | 0.65 kg |
Charging Time | 900 s |
Communication Network Type | wireless bluetooth low energy |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1403029EN |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1403029EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Product Certifications |
|
Ambient Air Temperature For Operation | -20-60 °C |
Ambient Air Temperature For Storage | -20-45 °C |
Relative Humidity | 0-95 % -20-60 °C operating |
Storage Altitude | 0-3000 m |
Nema Degree Of Protection | NEMA 4 |
Vibration Resistance | 0.075 mm 10-55 Hz)IEC 60068-2-6 |
Shock Resistance | 100 gn IEC 60068-2-27 |
Radio Agreement |
|
Operating Altitude | 0...6561.68 ft (0...2000 m) |
Ip Degree Of Protection | IP65 |
