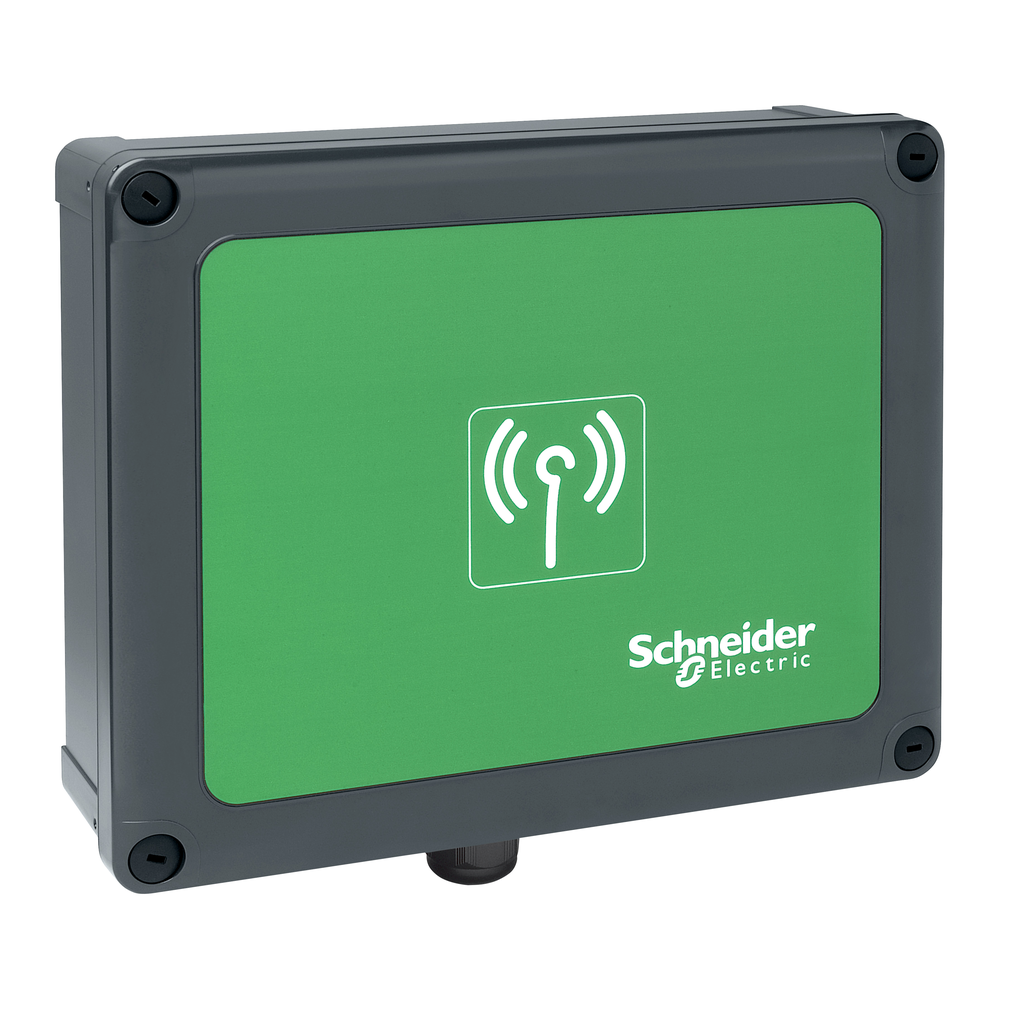

Base station, Harmony eXLhoist, standard, 18 relay outputs, cable gland connection, 24…240V AC DC
This Harmony eXLhoist / XAR black base station (receiver) has 18 relays outputs with 2 safety relays. This black base station (receiver) is designed as receiver for wireless remote control system. It is compatible with the remote control device ZART8D. It has 16 relay outputs with 2 safety relays and has wired connection cable gland. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Base station (receiver) has a unique identification code to allow the consistent and stable connection with its compatible remote control system.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony eXLhoist |
|---|---|
| Product Or Component Type | base station |
| Product Specific Application |
|
| Device Short Name | ZARB |
| Height | 305 mm |
| Maximum Switching Current | 6.8 mA |
| Switching Capacity In Va |
|
| Number Of Inputs | 12 |
| Fixing Mode | 4 holes |
| Transmission Frequency | 2.4 GHz |
| Shock Resistance | 15 gn 11 ms |
| Vibration Resistance | 0.075 mm 10-55 Hz) |
| Relay Type |
|
| Number Of Alarms | 6 programmable alarms |
| Material | PC (polycarbonate) |
| Net Weight | 1.45 kg |
| Communication Network Type | wireless bluetooth low energy |
| Nominal Output Current | 0.54 A 48 V AC IEC 60947-5-1 |
| [Us] Rated Supply Voltage | 24...240 V AC/DC |
| Maximum Sensing Distance | 100 m in free field |
| Number Of Channels | 40 |
| Service Life | 10 year(s) |
| Mechanical Durability | 1000000 cycles |
| Maximum Switching Voltage | 240 V AC/DC + 20 %) |
| Cable Entry | cable gland |
| Provided Equipment | internal antenna |
| Number Of Relays | 18 |
| Width | 280 mm |
| Depth | 100 mm |
| Safety Outputs | 2 NC relay outputs |
| Electrical Durability | 100000 cycles |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1404028EN |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1404028EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards | IEC 61000-6-2 |
| Electromagnetic Compatibility |
|
| Radio Agreement |
|
| Ip Degree Of Protection | IP65 |
| Relative Humidity | 0-97 % |
| Pollution Degree | 3 |
| Nema Degree Of Protection | NEMA 4 |
| Ambient Air Temperature For Storage | -40-70 °C |
