ZA2BV05

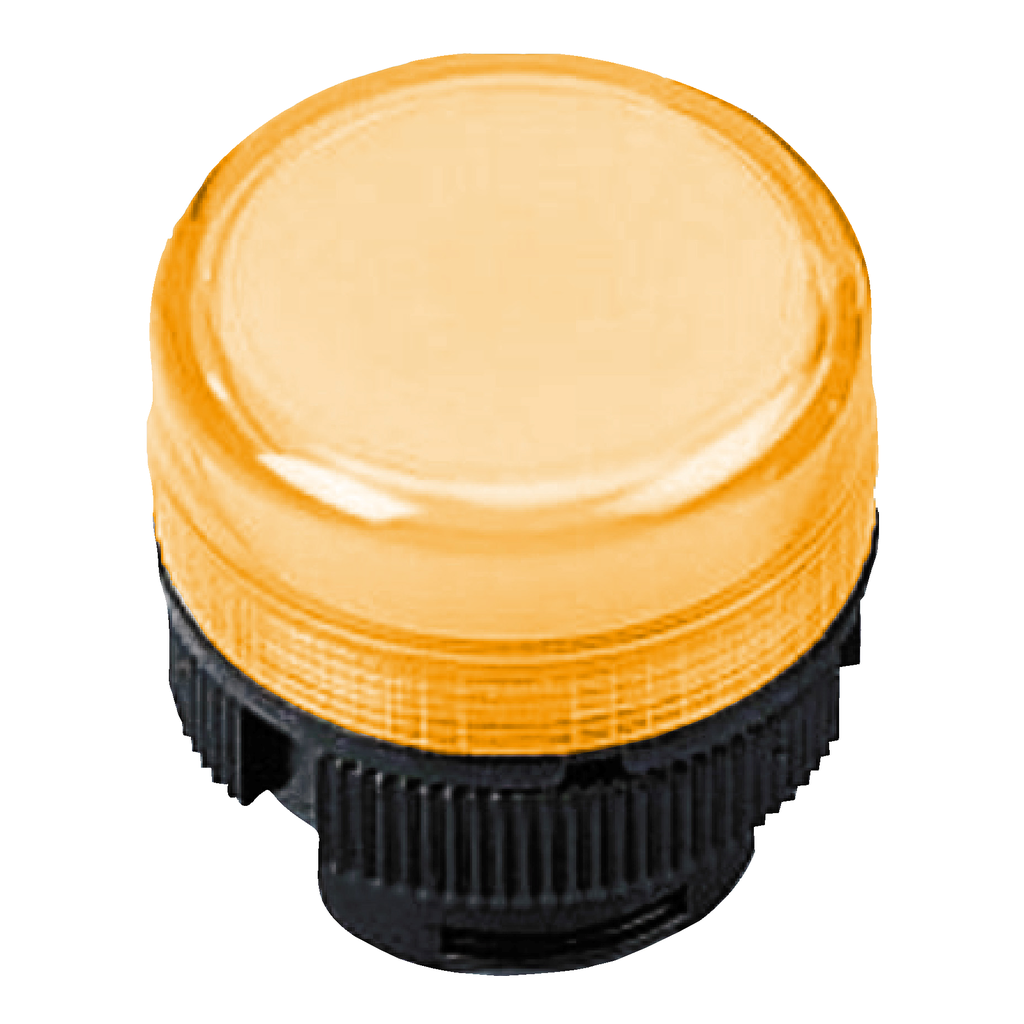

Head for pilot light, Harmony XAC, for incandescent bulb, plastic, yellow cap, 22mm
This Harmony ZA2BV05 is an amber pilot light. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony |
|---|---|
| Product Or Component Type | head for pilot light |
| Cap/Operator Or Lens Colour | yellow |
| Product Specific Application | for incandescent bulb |
| Warranty | 18 months |
| Net Weight | 0.015 kg |
| Mechanical Durability | 1000000 cycles |
| Compatibility Code | ZA2B |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710010EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ik Degree Of Protection | IK08 EN 50102 |
| Ambient Air Temperature For Operation | -25-55 °C |
| Standards |
|
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 61140 |
| Electrical Shock Protection Class | class II IEC 61140 |
| Protective Treatment | TH |
