ZA2BV03

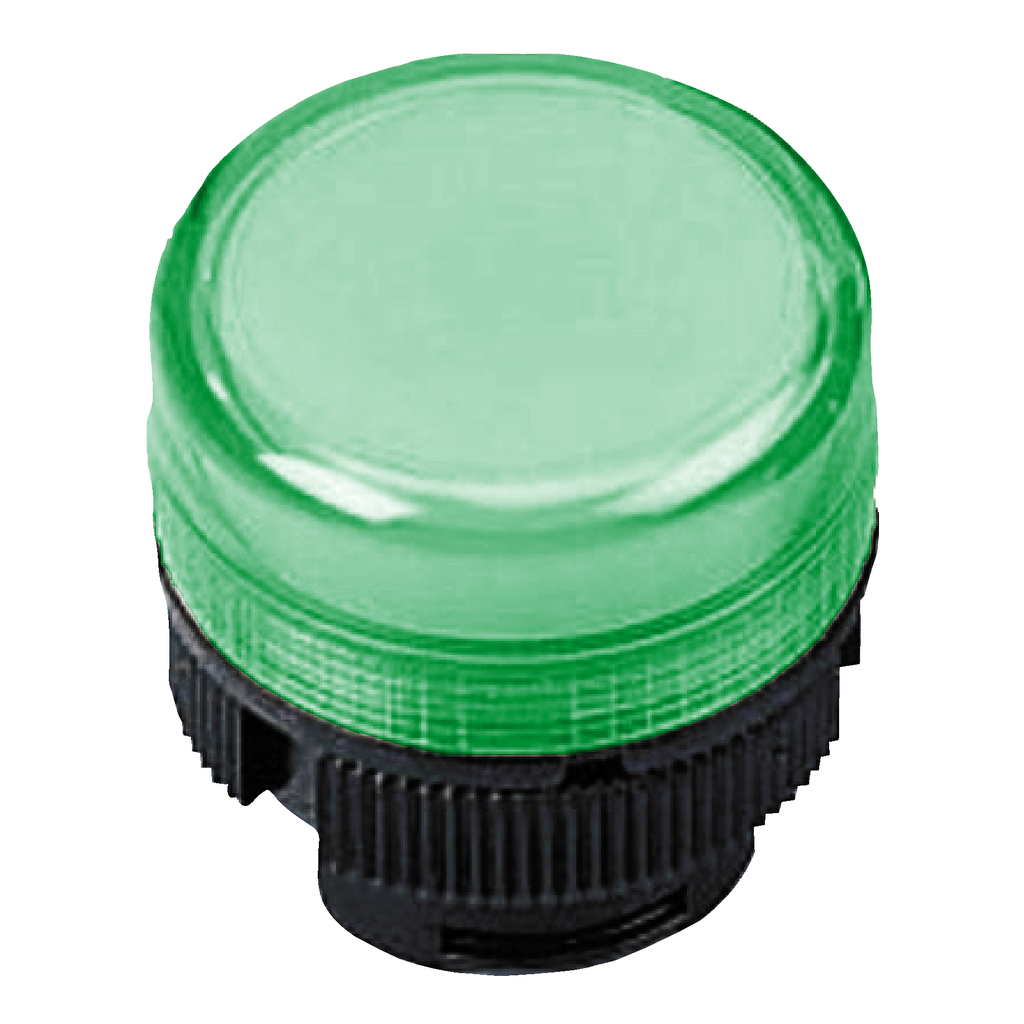

Head for pilot light, Harmony XAC, for incandescent bulb, plastic, green cap, 22mm
This Harmony ZA2BV03 is a green pilot light. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony |
|---|---|
| Product Or Component Type | head for pilot light |
| Cap/Operator Or Lens Colour | green |
| Product Specific Application | for incandescent bulb |
| Warranty | 18 months |
| Net Weight | 0.015 kg |
| Mechanical Durability | 1000000 cycles |
| Compatibility Code | ZA2B |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710010EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ik Degree Of Protection | IK08 EN 50102 |
| Ambient Air Temperature For Operation | -25-55 °C |
| Standards |
|
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 61140 |
| Electrical Shock Protection Class | class II IEC 61140 |
| Protective Treatment | TH |
