ZA2BS934

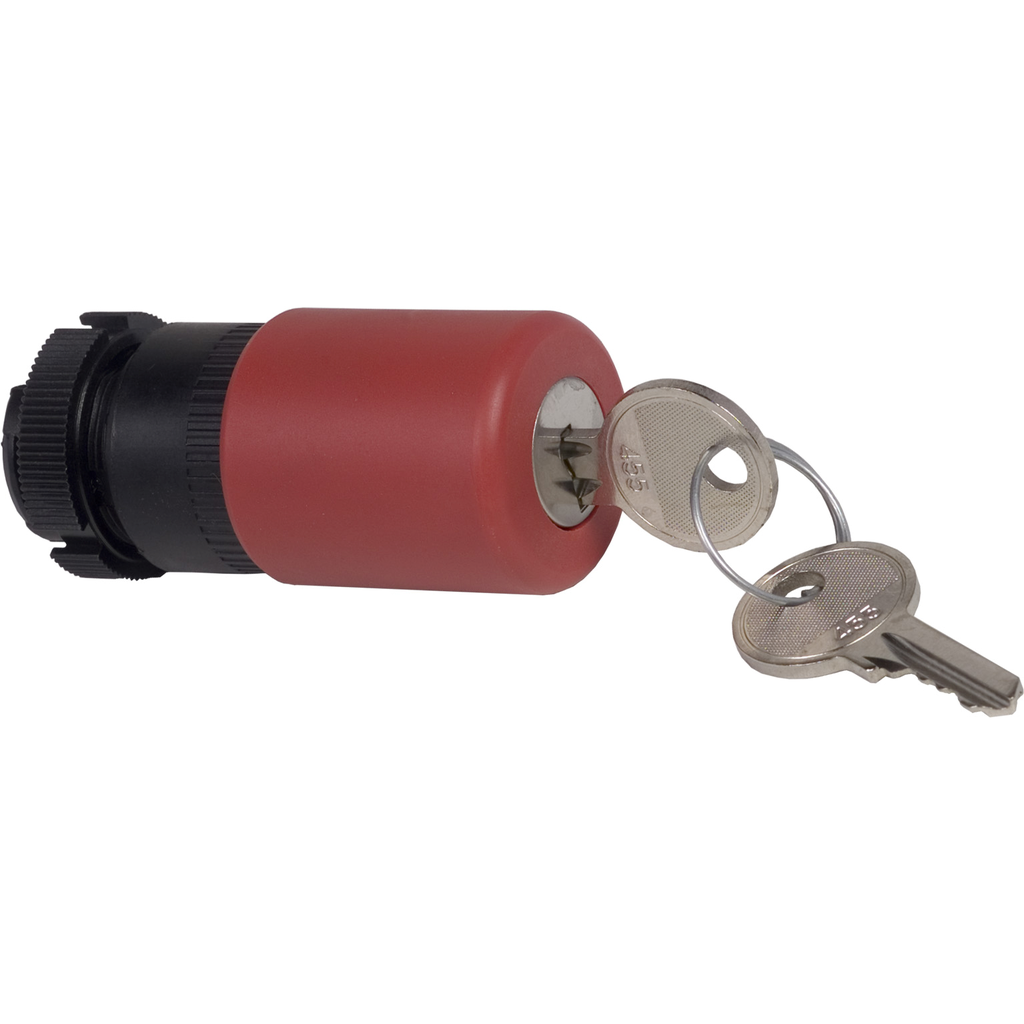

Head for emergency switching off push button, Harmony XAC, red mushroom 30mm, trigger/latching key release, unmarked
This Harmony ZA2BS934 is a red diameter 30mm Emergency stop, switching off head trigger and latching key release. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XAC |
|---|---|
| Product Or Component Type | head for emergency switching off push-button |
| Sale Per Indivisible Quantity | 1 |
| Warranty | 18 months |
| Marking | unmarked |
| Cap/Operator Or Lens Colour | red |
| Net Weight | 0.06 kg |
| Mounting Location | front of enclosure |
| Overvoltage Category | class II IEC 61140 |
| Product Compatibility | XACA.. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710010EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70 °C |
