ZA2BD5

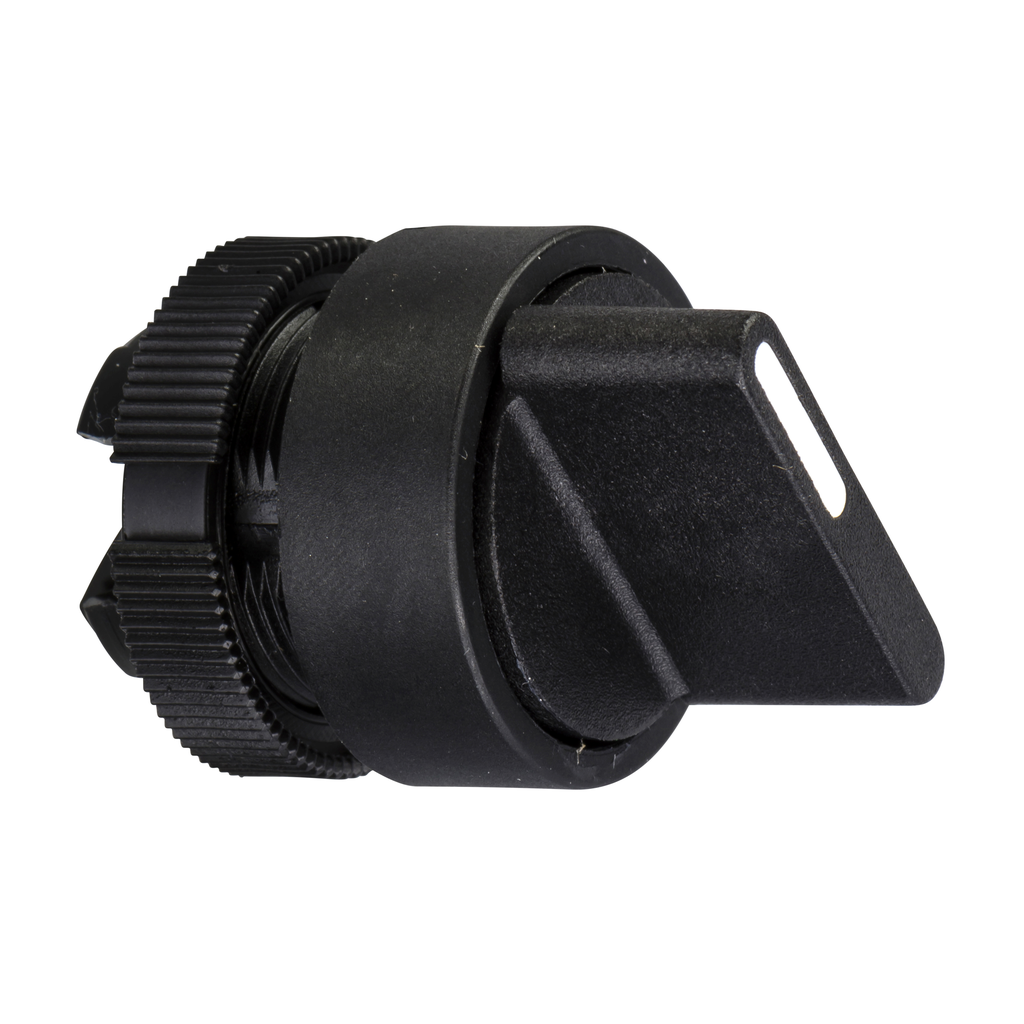

Selector switch, Harmony XAC, plastic, black handle, 22mm, 3 positions, unmarked
This Harmony ZA2BD5 is a selector switch head, 3 positions diameter 22mm, black. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XAC |
|---|---|
| Product Or Component Type | selector switch |
| Component Name | ZA2 |
| Product Compatibility | XACA |
| Warranty | 18 months |
| Marking | unmarked |
| Cap/Operator Or Lens Colour | black |
| Net Weight | 0.018 kg |
| Sale Per Indivisible Quantity | 1 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710010EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ik Degree Of Protection | IK08 EN 50102 |
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 61140 |
