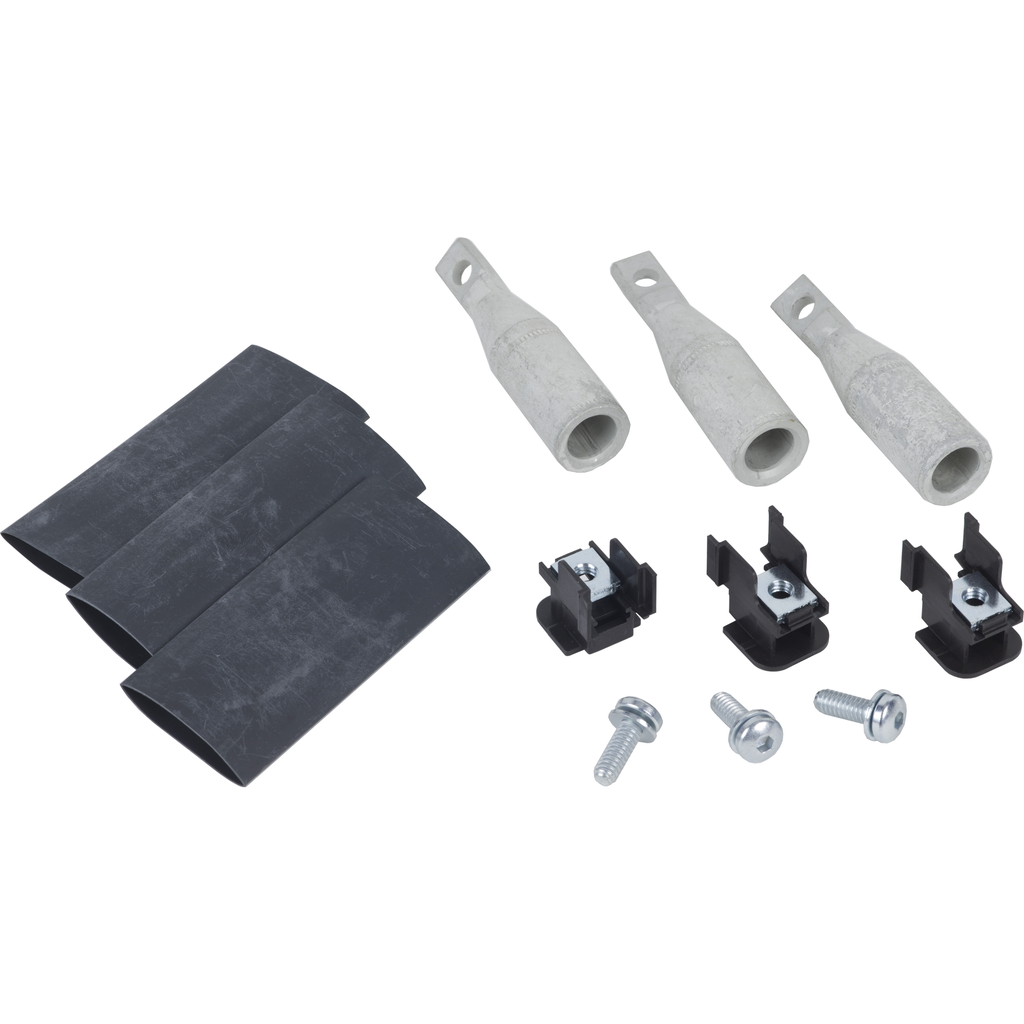

YA150HD is a PowerPact H-FRAME molded case circuit breaker, 150A, compression lug kit. This lug is for a unit mount and is made of aluminum. Certified to CSA & UL Standards. The PowerPactâ„¢ H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. Both copper and aluminum compression lug kits are available for the H-, J-, and L-frame circuit breakers. Each kit contains required insulators and all mounting hardware. Compression lugs require the long lug cover pack. The PowerPact Advantage. Proven Performance, Industry-leading circuit breaker innovation and protection for heavy-duty commercial and industrial applications. Smart, Integrated metering options provide a cost-effective solution to reduce energy consumption, optimize energy costs, and improve energy availability for your facilities. Flexible, Full range of thermal-magnetic and electronic trip molded case circuit breakers from 15 A to 3000 A, delivering the ratings, configurations, and operators for your unique applications. Simple, Common catalog numbers, standardized ratings, and a full range of field-installable accessories make product selection, installation and maintenance easier than ever. Common Design Features, Mounting holes, door trim, and handle accessories.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | PowerPact H |
---|---|
Circuit Breaker Type | H-frame |
Accessory / Separate Part Category | connection accessory |
Quantity Per Set | set of 3 |
Product Or Component Type | lug |
Warranty | 18 months |
Line Rated Current | 150-150 A |
Mounting Mode |
|
Tightening Torque | 9.0-10.2 N.m (AWG 1/0...AWG 4/0) |
Awg Gauge | AWG 1/0...AWG 4/0 aluminium/copper |
Product Compatibility | PowerPact H PowerPact H-Frame |
Material | aluminium |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI1311006EN |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1311006EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Product Certifications |
|
