YA1200R7

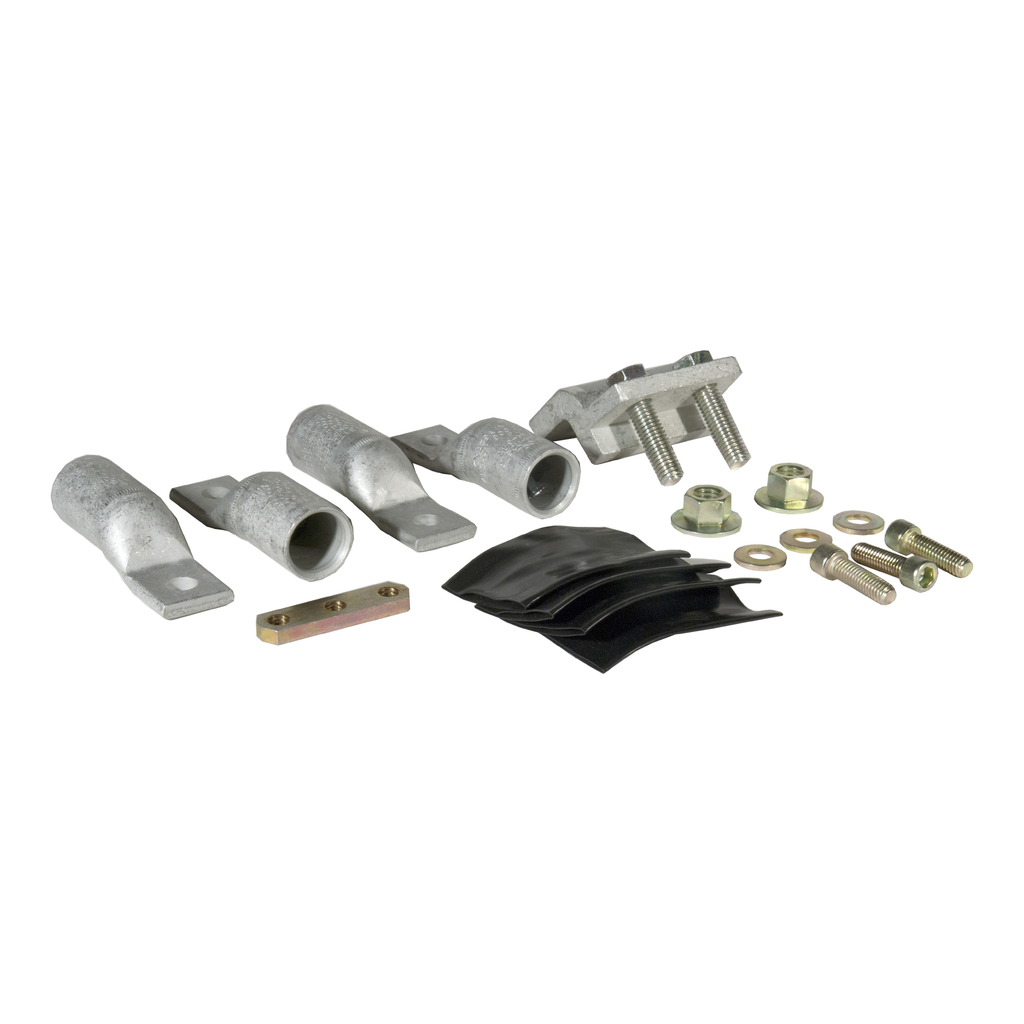

Circuit breaker accessory, PowerPacT R, compression lug kit, I-Line, aluminum, 4 lugs, 1200A
Specifications
| Range Of Product | PowerPact R |
|---|---|
| Circuit Breaker Type | R-Frame |
| Accessory / Separate Part Category | connection accessory |
| Quantity Per Set | set of 4 |
| Product Or Component Type | mechanical lug |
| Warranty | 18 months |
| Line Rated Current | 1200-1200 A |
| Mounting Mode |
|
| Tightening Torque | 28-28 N.m 240-400 mm² (500...750 kcmil) |
| Awg Gauge |
|
| Product Compatibility | PowerPact R PowerPact |
| Material | aluminium |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1407013EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407013EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Certifications |
|
