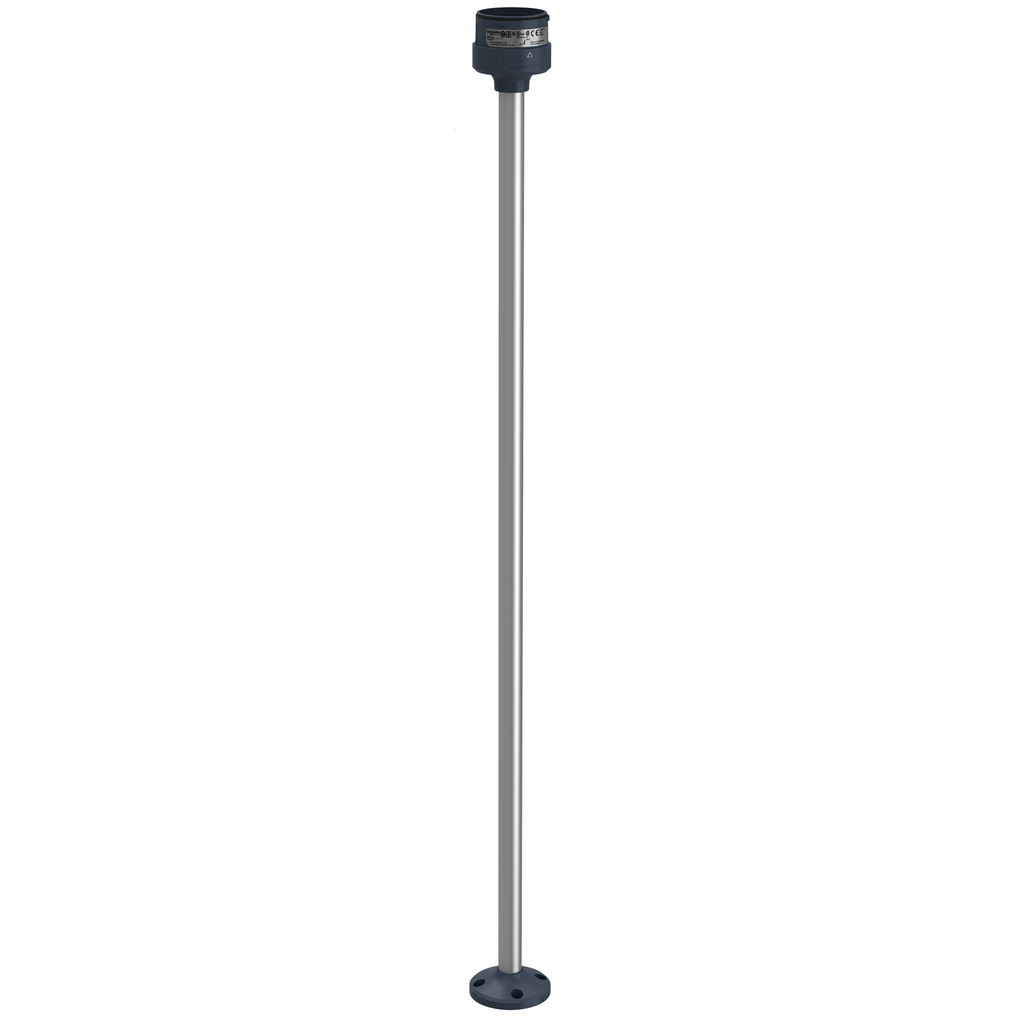

This Harmony XVU fixing plate is work with DC and AC base units. This black fixing plate with support pole is designed as a mounting and fixing accessory for modular tower light. It allows fast and easy replacement of your signaling units via simple push-in terminals. It has a diameter of 60mm with a pole height of 800mm. It complies with CSA, UL, and CE standards and it has IP65 protection index. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony XVU |
---|---|
Accessory / Separate Part Category | mounting and fixing accessory |
Mounting Diameter | 60 mm |
Product Or Component Type | modular tower light |
Component Name | XVU |
Accessory / Separate Part Type | fixing plate |
[Us] Rated Supply Voltage |
|
Housing Colour | black |
Pole Heigth | 800-800 mm |
Connections - Terminals | push-in |
Mounting Support | plate with pole |
Product Compatibility | top AC/DC body |
Material |
|
Net Weight | 0.43 kg |
Length | 817-817 mm |
China Rohs Regulation | X |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Product Certifications |
|
Ambient Air Temperature For Operation | -25-50 °C |
Ambient Air Temperature For Storage | -40-70 °C |
Ip Degree Of Protection | IP65 |
