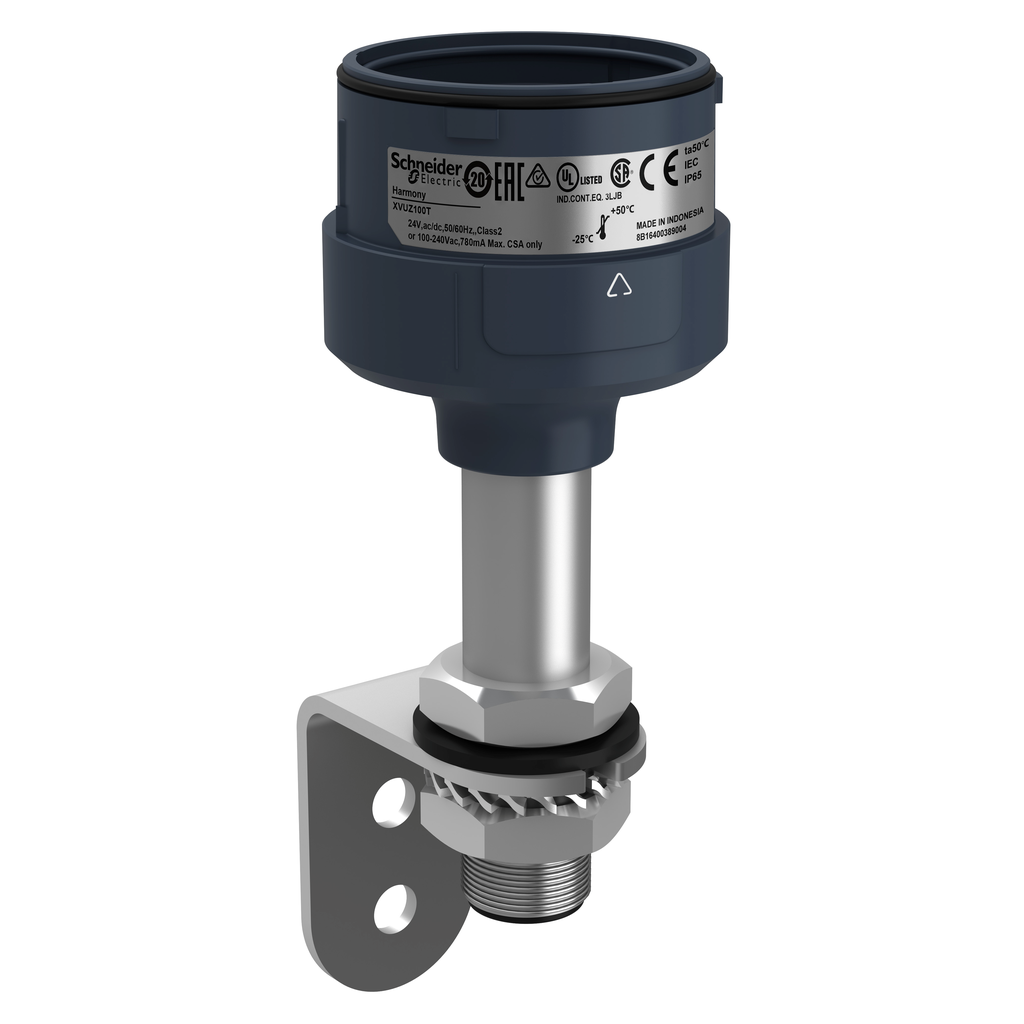

This Harmony XVU fixing plate is work with DC and AC base units. It contains base unit, support pole, and vertical fixing plate. This black fixing plate with support pole is designed as a mounting and fixing accessory for modular tower light. It allows fast and easy replacement of your signaling units via simple push-in terminals. It has a diameter of 60mm with a pole height of 100mm. It complies with CSA, UL, and CE standards and it has IP32 protection index. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony XVU |
---|---|
Accessory / Separate Part Category | mounting and fixing accessory |
Mounting Diameter | 60 mm |
Product Or Component Type | modular tower light |
Component Name | XVU |
Accessory / Separate Part Type | fixing plate |
[Us] Rated Supply Voltage |
|
Housing Colour | black |
Pole Heigth | 100-100 mm |
Connections - Terminals | push-in |
Mounting Support | metal bracket with pole |
Product Compatibility | top AC/DC body |
Material |
|
Net Weight | 0.22 kg |
Length | 150-150 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1403004EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1403004EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Operation | -25-50 °C |
Ambient Air Temperature For Storage | -40-70 °C |
Ip Degree Of Protection | IP32 |
