XVUZ04

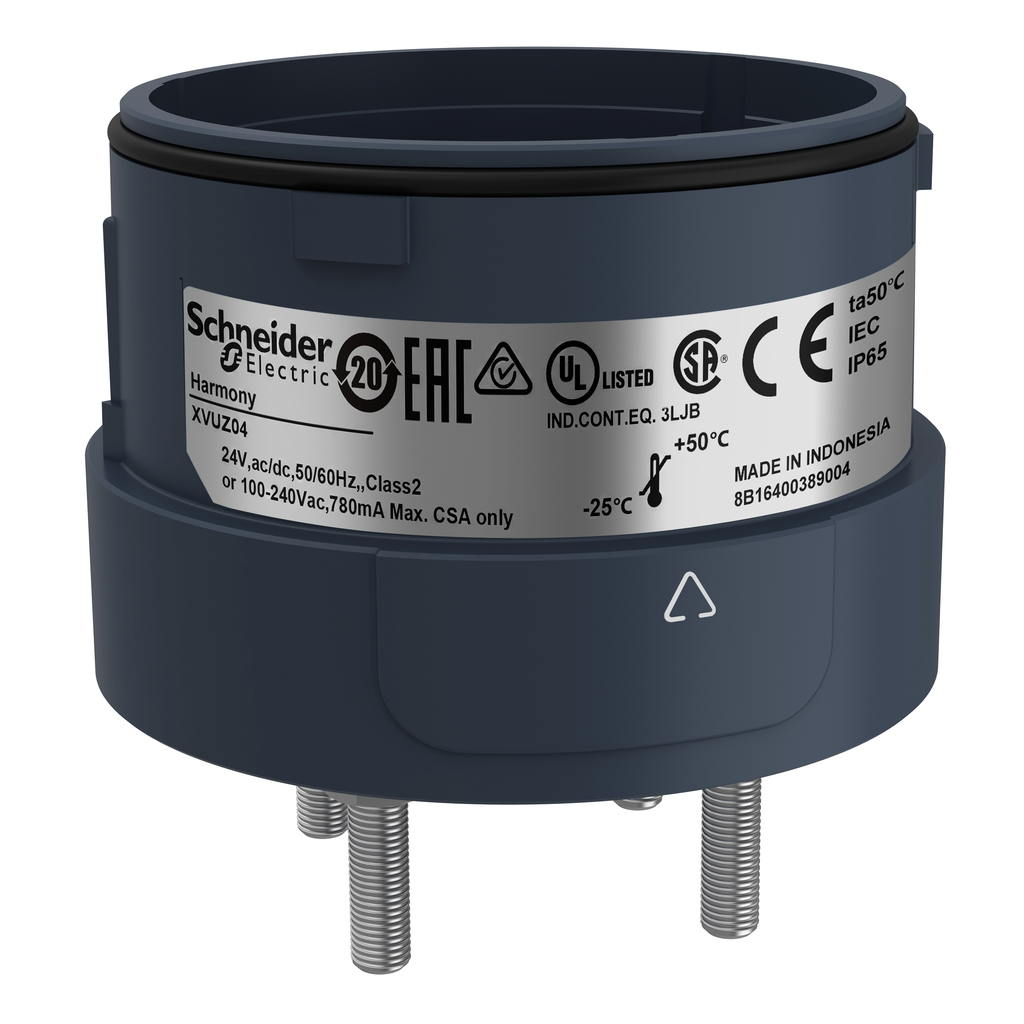

Fixing unit for modular tower lights, Harmony XVU, black, 60mm, 4 pins direct mounting
This Harmony XVU fixing unit has 4-pins direct mounting. It has black color with a diameter of 60mm and a height of 100mm. It contains base unit. This black fixing unit is a mounting and fixing accessory for modular tower light. It allows users with easy installation via push-in terminals. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XVU |
|---|---|
| Accessory / Separate Part Category | mounting and fixing accessory |
| Mounting Diameter | 60 mm |
| Product Or Component Type | modular tower light |
| Component Name | XVU |
| Accessory / Separate Part Type | mounting plate |
| [Us] Rated Supply Voltage |
|
| Housing Colour | black |
| Connections - Terminals | push-in |
| Mounting Support | direct mounting |
| Product Compatibility |
|
| Material |
|
| Net Weight | 0.066 kg |
| Pin Number | 4 |
| Length | 17-17 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403004EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1403004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-50 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Ip Degree Of Protection | IP65 |
