XVUZ01

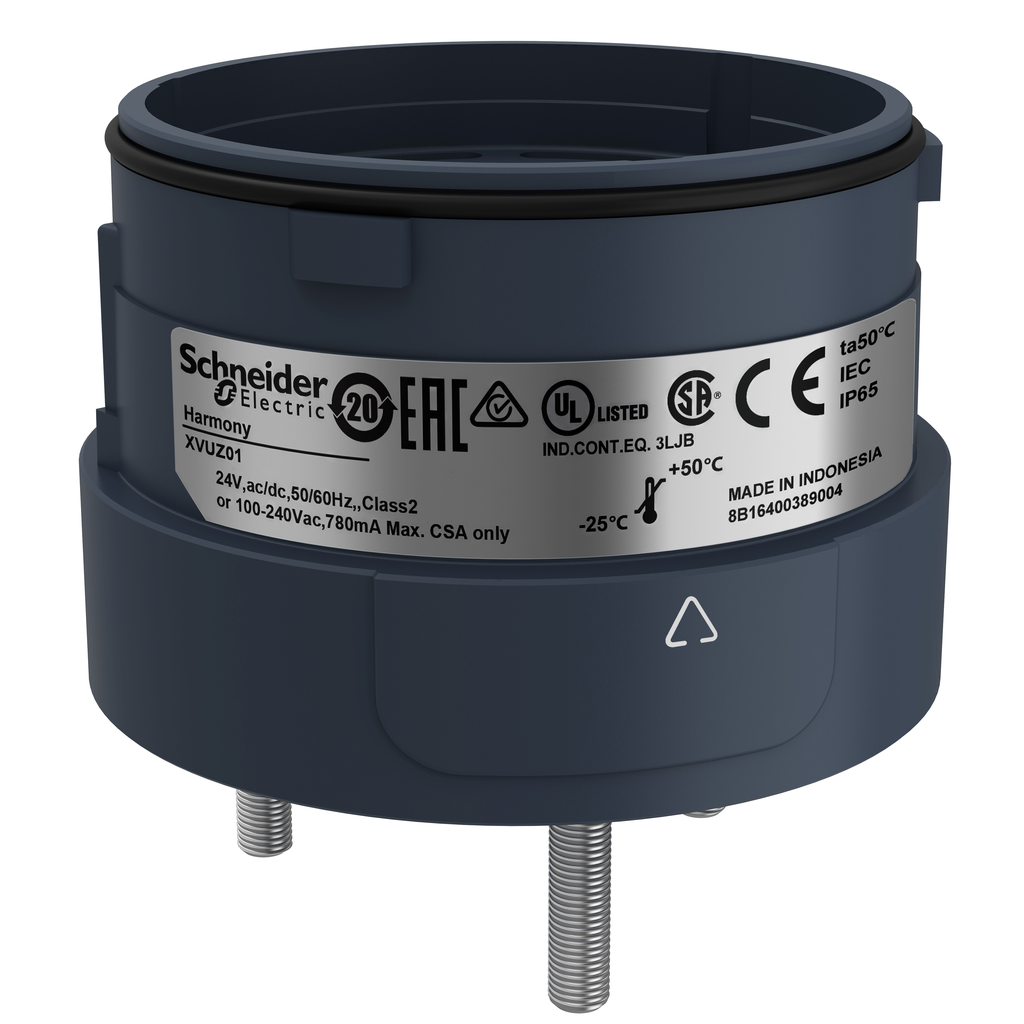

Fixing unit for modular tower lights, Harmony XVU, black, 60mm, 3 pins direct mounting
This black fixing unit is a mounting and fixing accessory for modular tower light. It is supplied with 110V-240V AC/DC and has a mounting diameter of 60mm. It allows users with easy installation via push-in terminals. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XVU |
|---|---|
| Accessory / Separate Part Category | mounting and fixing accessory |
| Mounting Diameter | 60 mm |
| Product Or Component Type | modular tower light |
| Component Name | XVU |
| Accessory / Separate Part Type | mounting plate |
| [Us] Rated Supply Voltage |
|
| Housing Colour | black |
| Connections - Terminals | push-in |
| Mounting Support | direct mounting |
| Product Compatibility |
|
| Material |
|
| Net Weight | 0.063 kg |
| Pin Number | 3 |
| Length | 17-17 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403004EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1403004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-50 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Ip Degree Of Protection | IP65 |
Documents
- Spec Sheet
- Catalog of Harmony XVU modular tower light, dia. 60 - DIA5ED2130407EN+(web) (pdf)
- Harmony XVU Modular Tower Lights Catalog - DIA5ED2130407EN-US (pdf)
- Digest Catalog 19: Push Buttons and Operator Interface (MAY 2019) - 0100CT1901_SEC-19 (pdf)
- Industrial Control Panel Solutions Catalog - 8800CT1801 (pdf)
- XVUC29P Multi-LED unit, Pulse signal - XVUC9VP Sound unit, Pulse signal, Instruction Sheet - EAV7278601_05 (pdf)
- XVUZ06 Flexible mounting element for use on horizontal or vertical support, Instruction Sheet - HRB1832101-05 (pdf)
- XVUZ01., XVUZ02., XVUZ05 Mounting accessories for Modular tower lights, Instruction Sheet - HRB1832201+09+(Web) (pdf)
- XVU... Modular tower lights (Ø 60), Instrution Sheet - HRB1831101-05 (pdf)
