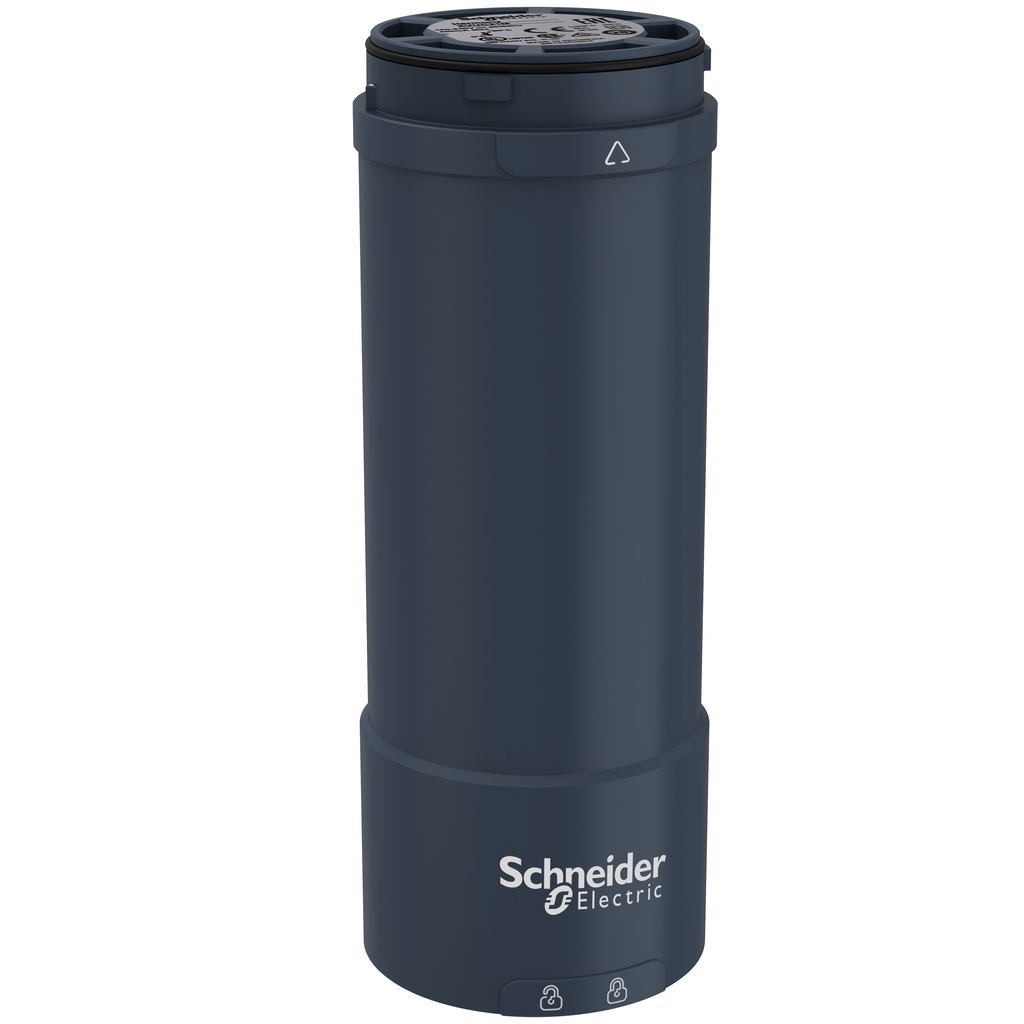

Base unit with top cover for modular tower lights, Harmony XVU, black, 60mm, PNP, 100...240V AC
This Harmony XVU black base unit with top cover is supplied with 100-240V AC and has a diameter of 60mm. This base unit with top cover is designed to be fitted with indicator bank to create complete tower light and allow clear display of the status of your machines. It it is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Simple and modular design to allow for easy installation with illuminated unit via tube fixing and make complete tower light. It complies with international standards and certifications (CCC, CSA, UL, RoHS, EAC, CE standards).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Housing Colour | black |
|---|---|
| Range Of Product | Harmony XVU |
| Mounting Diameter | 60 mm |
| Product Or Component Type | modular tower light |
| Component Name | XVU |
| Beacon Or Indicator Bank Unit Type | base unit |
| Fixing Mode | direct or tube fixing |
| Material |
|
| Current Consumption | <= 400 mA |
| Length | 151 mm |
| Net Weight | 0.235 kg |
| Assembly Style | customer assembly, up to 5 units |
| Kit Composition |
|
| [Us] Rated Supply Voltage | 100...240 V AC +/- 10 % |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403004EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1403004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | 0-50 °C |
| Ip Degree Of Protection | IP65 |
| Vibration Resistance | 2 gn |
| Ambient Air Temperature For Storage | -20-65 °C |
| Electrical Shock Protection Class | class II on base unit IEC 61140 |
