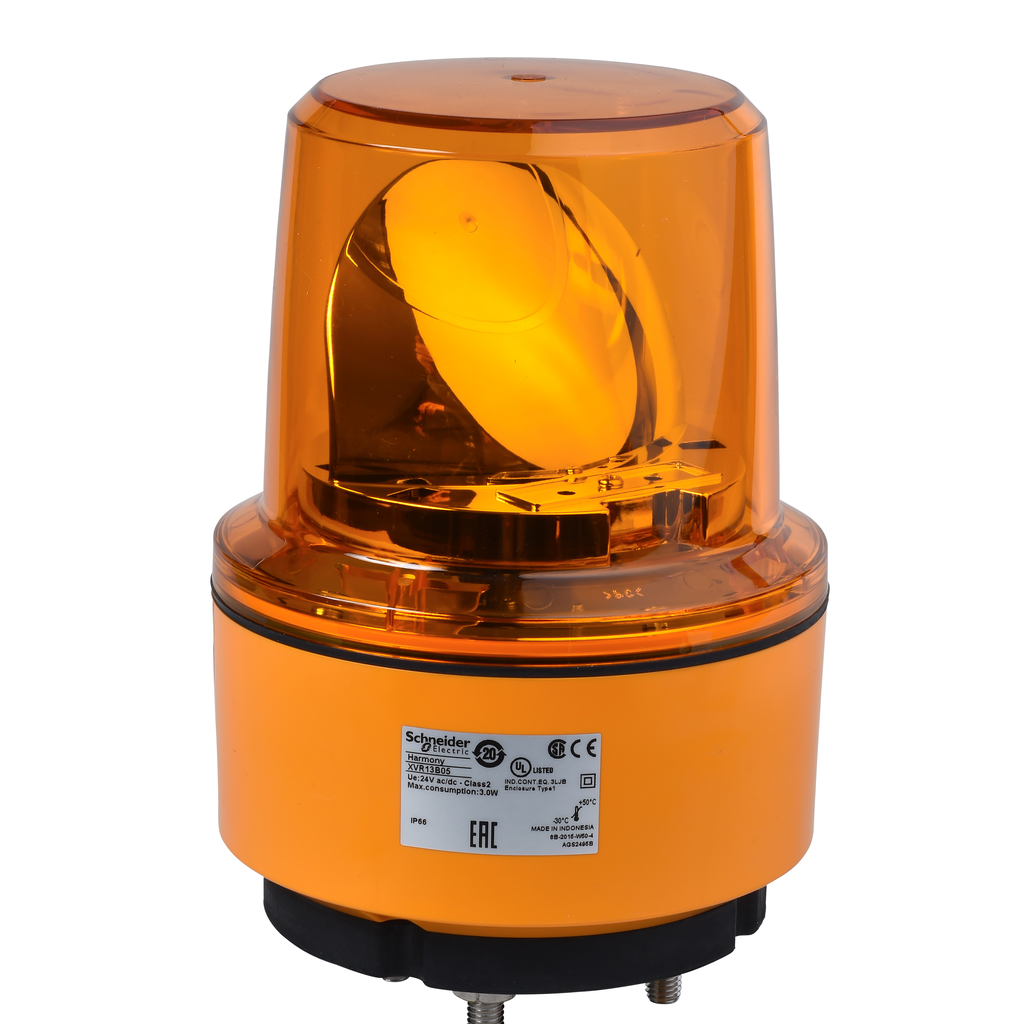

Rotating beacon, Harmony XVR, 130mm, orange, without buzzer, 24V DC
This rotating mirror is part of the range of pre-wired rotating/flashing beacons Harmony XVR. It is supplied complete, pre-cabled without buzzer. It features orange super bright LED light source and it can be supplied with 24V DC. It provides good illuminating power and a long service life (reduced time for maintenance) thanks to its super-bright LED. Its protection index is IP66. It weighs 800g, its diameter is 130mm and it is 179mm high. It provides PC (polycarbonate) globe and ABS (acrylonitrile butadiene-styrene) body part. It is designed for long distance signaling applications, used mainly in the iron and steel industry, on industrial handling vehicles or for safety applications. It is CE, UL and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XVR |
|---|---|
| Mounting Diameter | 130 mm |
| Light Source | high luminosity LED, orange |
| Product Or Component Type | prewired rotating mirror beacon |
| Ip Degree Of Protection | IP66 IEC 60529 resistant to vibration) |
| Sound Signalling | without |
| Device Short Name | XVR |
| [Us] Rated Supply Voltage | 24 V DC |
| Warranty | 18 months |
| Clamping Connection Capacity | 1.25 mm² |
| Flashing Frequency | 2.7 Hz |
| Cable Length | 400 mm |
| Marking | CE |
| Net Weight | 0.8 kg |
| [Uimp] Rated Impulse Withstand Voltage | 0.8 kV |
| Current Consumption | 125 mA |
| Awg Gauge | AWG 18 |
| Supply Voltage Limits | 19-30 V DC |
| Product Mounting | by 3 M8 screws |
| Material |
|
| Cad Overall Width | 130 mm |
| Cad Overall Depth | 130 mm |
| Environmental Disclosure | ENVPEP1402018EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1402018EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | -30-50 °C |
| Standards |
|
| Ambient Air Temperature For Storage | -35-70 °C |
| Electrical Shock Protection Class | class II IEC 61140 |
| Protective Treatment | TC |
