XVR08B04

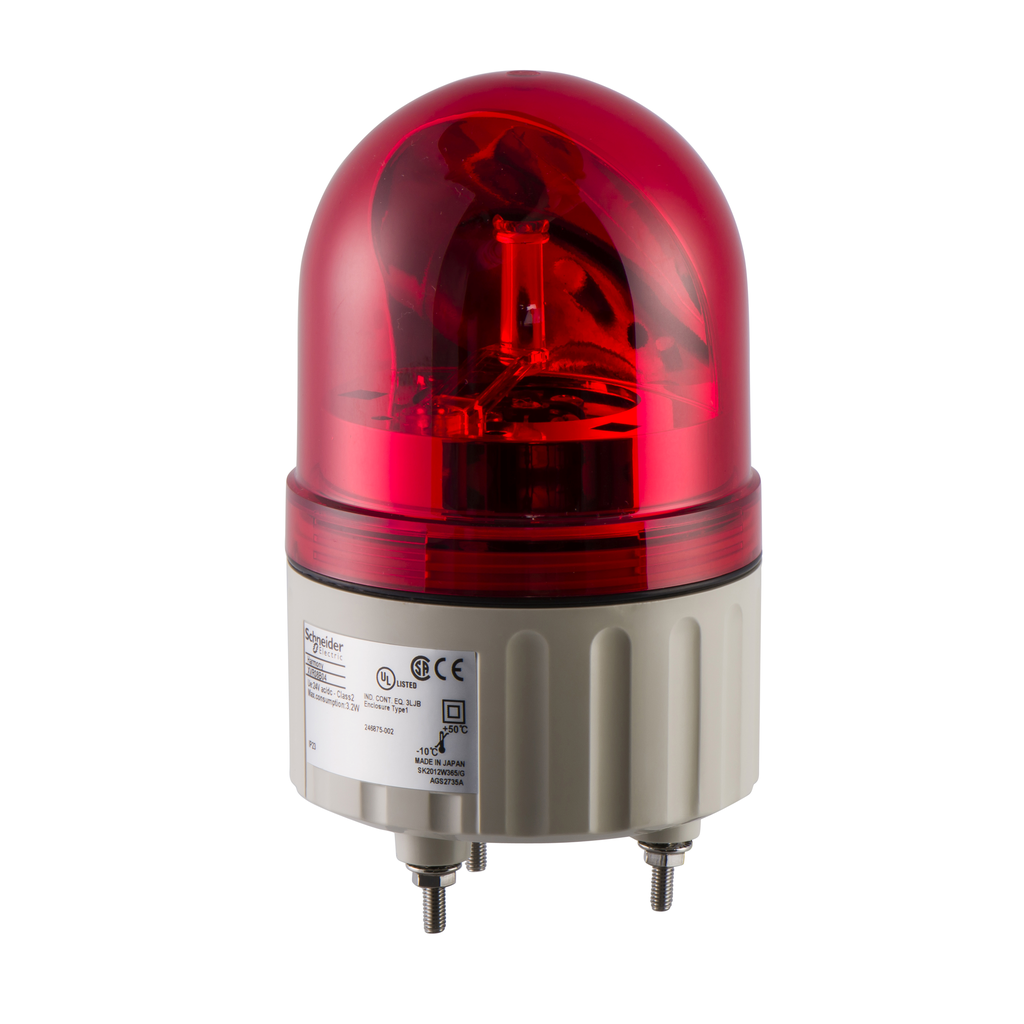

Rotating beacon, Harmony XVR, 84mm, red, without buzzer, 24V AC DC
This red beacon is part of the range of rotating beacons Harmony XVR diameter 84mm. It is supplied complete and pre-cabled. Supply voltage is 24V AC/DC and degree of protection is IP 23 and (IP 65 with accessories). It is designed for long distance signaling applications, thanks to the use of “super-bright” LED which provides good illuminating power, a long service life and reduced time for maintenance and also energy saving. It is used mainly in the iron and steel industry, on industrial handling vehicles or for safety applications.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XVR |
|---|---|
| Mounting Diameter | 84 mm |
| Light Source | high luminosity LED, red |
| Product Or Component Type | prewired rotating mirror beacon |
| Ip Degree Of Protection |
|
| Sound Signalling | without |
| Device Short Name | XVR |
| [Us] Rated Supply Voltage | 24 V AC/DC |
| Warranty | 18 months |
| Clamping Connection Capacity | 0.83 mm² |
| Flashing Frequency | 2.3 Hz |
| Cable Length | 500 mm |
| Marking | CE |
| Net Weight | 0.3 kg |
| [Uimp] Rated Impulse Withstand Voltage | 0.8 kV |
| Current Consumption | 125 mA |
| Awg Gauge | AWG 18 |
| Supply Voltage Limits |
|
| Product Mounting | by 3 M4 screws |
| Material |
|
| Cad Overall Width | 84 mm |
| Cad Overall Depth | 84 mm |
| Environmental Disclosure | ENVPEP1402018EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1402018EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications | UL |
| Ambient Air Temperature For Operation | -10-50 °C |
| Standards |
|
| Ambient Air Temperature For Storage | -35-70 °C |
| Electrical Shock Protection Class | class II IEC 61140 |
| Protective Treatment | TC |
