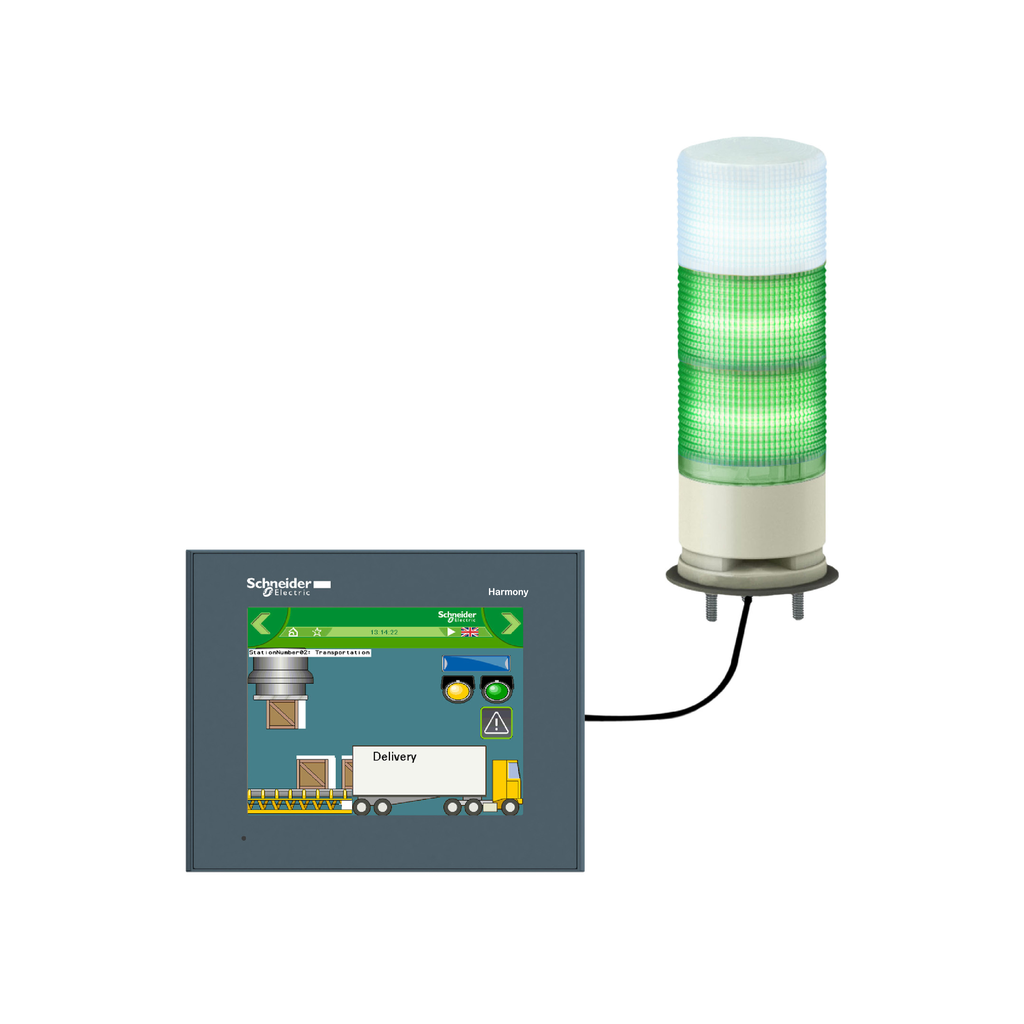

This XVGU multi-color USB programmable tower light has 3 tiers, whose color and flashing scheme can be independantly configured within the HMI application. It is designed to connect directly with Magelis HMI using a USB connection and clearly display the status of your machines in applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It offers configurable color combinations, flashing patterns and buzzer sounds. Included 82dB loud buzzer for alerting on critical machine statuses. Adjustable flashing schemes to allow for more advanced alerting to workfloor staff around the machine.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony XVGU |
---|---|
Mounting Diameter | 60 mm |
Light Source | LED steady or flashing multi-colour |
Product Or Component Type | USB configurable monolithic tower light |
Component Name | XVGU |
Noise Level | 82-82 dB 2 tone buzzer)1 m |
Beacon Or Indicator Bank Unit Type | 3 illuminated units |
Sound Signalling | buzzer |
Indicator Bank Base Type | base with integrated buzzer |
Warranty | 18 months |
Device Mounting | direct mounting |
Power Consumption In W | 2 W |
Net Weight | 0.3 kg |
Current Consumption | 400 mA |
Light Block Color | clear/clear/clear |
Connector Type | USB type A female |
Product Compatibility |
|
Sound Frequency |
|
Material | PC globe |
Flashing Frequency |
|
[Us] Rated Supply Voltage | 5 V DC |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP070907EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Operation | 0-55 °C |
Standards |
|
Ambient Air Temperature For Storage | -35-70 °C |
Electrical Shock Protection Class | class I |
Ip Degree Of Protection | IP54 |
