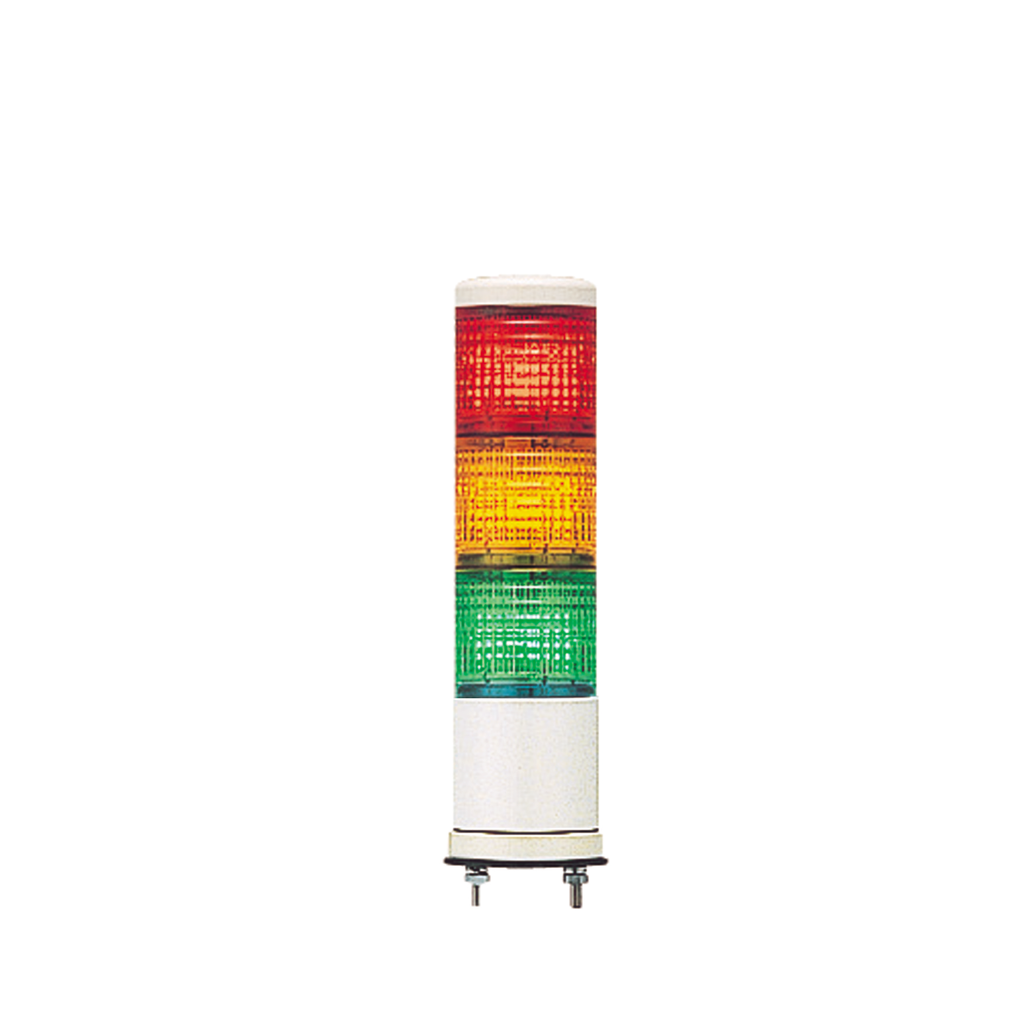

This monolithic tower light is part of the range of pre-assembled and pre-cabled tower lights Harmony type XVC diameter 60mm. It is supplied pre-assembled and pre-cabled with 3 illuminated signaling units (red, orange, green) and a base for mounting on horizontal surface. It also features a buzzer with continuous or intermittent tone and adjustable sound level from 70db to 85db at 1 m, + flashing light. It is designed for long distance indication of the operating states of a machine, visually by means of illuminated signaling units visible through 360°. It features LED for steady or flashing light source, and it can be supplied with 24 V AC/DC. Its protection index is IP54. It provides PC (polycarbonate) illuminated unit, ABS base unit and PBT + ABS (UL94HB) top cover. It weighs 300g and it is 201mm high. It is used mainly in the semi-conductor factories, on conveyor belts and on small food or drink dispensing machines in the commercial sector. It is CE and UL certified. It is designed to be mounted on horizontal surface thanks to its base fitted with 3 screws.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony XVC6 |
---|---|
Mounting Diameter | 60 mm |
Light Source |
|
Product Or Component Type | complete pre-wired monolithic tower light |
Component Name | XVC |
[Us] Rated Supply Voltage | 24 V |
Noise Level | 70-85 dB continuous or intermittent tone)1 m |
Beacon Or Indicator Bank Unit Type | 3 illuminated units |
Supply Circuit Type | AC/DC |
Sound Signalling | buzzer |
Warranty | 18 months |
Height | 200.8 mm |
[Uimp] Rated Impulse Withstand Voltage | 0.8 kV |
Fundamental Frequency | 2.23 kHz |
Flashing Frequency | 1 Hz |
Cable Length | 850 mm |
Marking | CE |
Net Weight | 0.3 kg |
Current Consumption | 115 mA |
Awg Gauge | AWG 22 |
Cable Cross Section | 0.33-0.33 mm² |
Product Mounting | on base |
Material |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1904008EN |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1904008EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications | UL |
Ambient Air Temperature For Operation | -10-50 °C |
Standards |
|
Ip Degree Of Protection | IP54 flat surface installation EN/IEC 60529 |
Ambient Air Temperature For Storage | -35-70 °C |
Electrical Shock Protection Class | class II EN/IEC 61140 |
Protective Treatment | TC |
