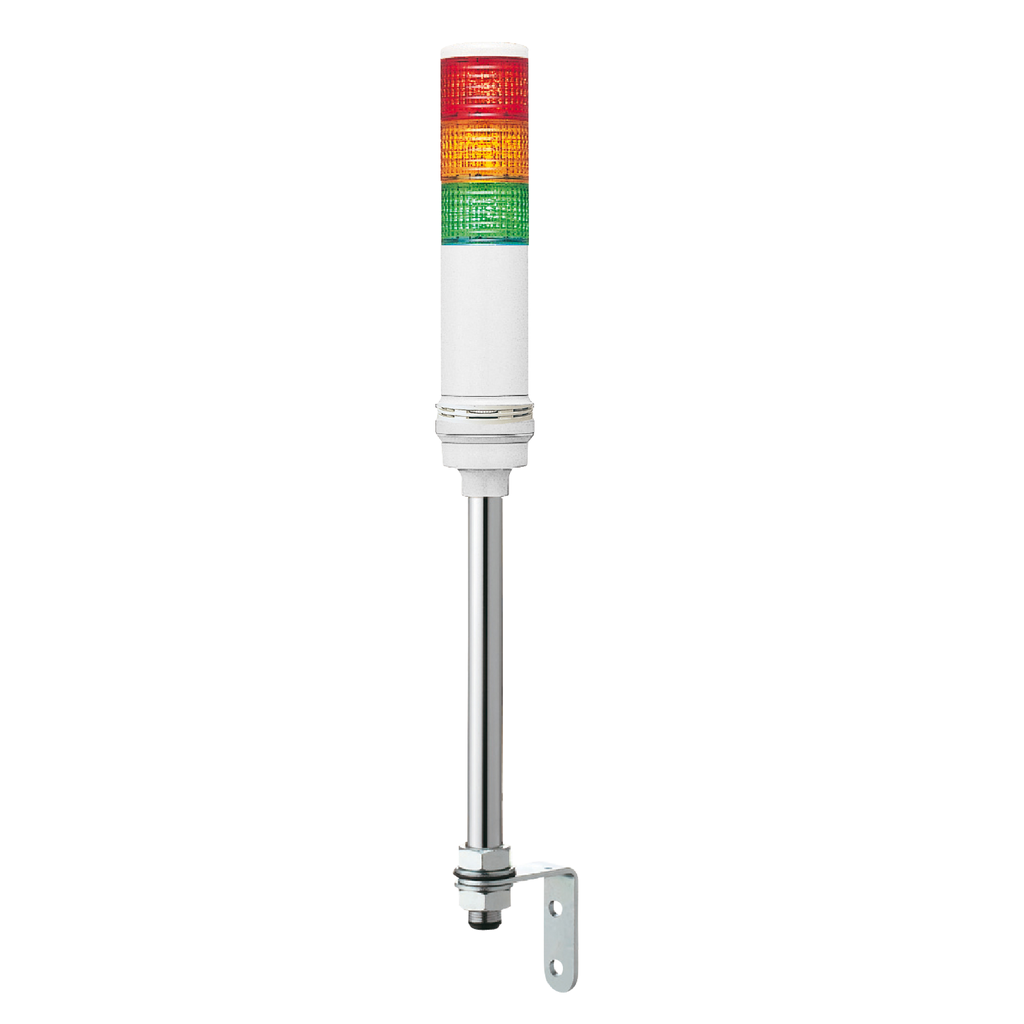

This Harmony XVC6B35S is a 60mm tower light. It has red, orange and green illuminated units flashing mode, with buzzer. It is part of the range Harmony XVC6 diameter 60mm pre-wired monolithic tower lights.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony XVC6 |
---|---|
Mounting Diameter | 60 mm |
Light Source |
|
Product Or Component Type | complete pre-wired monolithic tower light |
Component Name | XVC |
[Us] Rated Supply Voltage | 24 V |
Noise Level | 70-85 dB continuous or intermittent tone)1 m |
Beacon Or Indicator Bank Unit Type | 3 illuminated units |
Supply Circuit Type | AC/DC |
Sound Signalling | buzzer |
Warranty | 18 months |
Height | 563.1 mm |
[Uimp] Rated Impulse Withstand Voltage | 0.8 kV |
Fundamental Frequency | 2.23 kHz |
Flashing Frequency | 1 Hz |
Cable Length | 550 mm |
Marking | CE |
Net Weight | 0.98 kg |
Current Consumption | 115 mA |
Awg Gauge | AWG 22 |
Cable Cross Section | 0.33-0.33 mm² |
Product Mounting | on support tube, 22 mm |
Material |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1904008EN |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1904008EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications | UL |
Ambient Air Temperature For Operation | -10-50 °C |
Standards |
|
Ip Degree Of Protection | IP23 vertical surface installation EN/IEC 60529 |
Ambient Air Temperature For Storage | -35-70 °C |
Electrical Shock Protection Class | class I EN/IEC 61140 |
Protective Treatment | TC |
