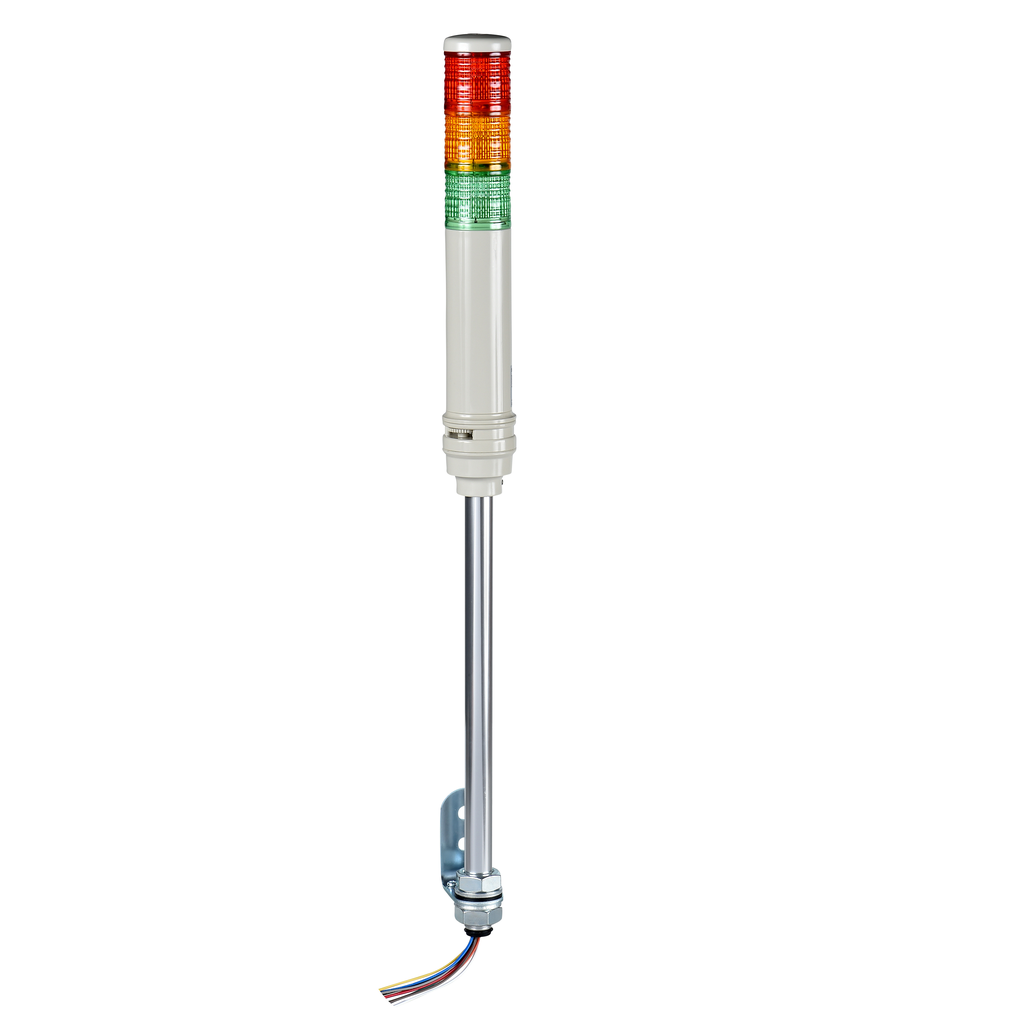

Monolithic pre wired tower light, Harmony XVC, plastic, red orange green, 40mm, tube mounting, steady or flashing, buzzer, IP23, 24V AC DC
This monolithic tower light is part of the range of pre-assembled and pre-cabled tower lights Harmony type XVC diameter 40mm. It is supplied pre-assembled and pre-cabled with 3 illuminated signaling units (red, orange, green), a buzzer and a base mounted on a support tube with a bracket for mounting on horizontal (IP 54) or vertical surface (IP 23). Supply voltage is 24 V AC/DC. It is designed for long distance indication of the operating states of a machine, either visually by means of illuminated signaling units visible through 360° (super bright LED for steady or flashing light), or audibly by means of a buzzer. It is used mainly in the food-processing and medical sectors.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XVC4 |
|---|---|
| Mounting Diameter | 40 mm |
| Light Source |
|
| Product Or Component Type | complete pre-wired monolithic tower light |
| Component Name | XVC |
| Noise Level | 70-85 dB continuous or intermittent tone)1 m |
| Beacon Or Indicator Bank Unit Type | 3 illuminated units |
| Supply Circuit Type | AC/DC |
| Sound Signalling | buzzer |
| Device Short Name | XVC |
| Warranty | 18 months |
| [Us] Rated Supply Voltage | 24 V |
| Height | 594.5 mm |
| [Uimp] Rated Impulse Withstand Voltage | 0.8 kV |
| Fundamental Frequency | 2.23 kHz |
| Flashing Frequency | 1 Hz |
| Cable Length | 900 mm |
| Marking | CE |
| Net Weight | 0.64 kg |
| Mounting Location | on support tube, 17 mm |
| Current Consumption | 115 mA |
| Awg Gauge | AWG 22 |
| Cable Cross Section | 0.33-0.33 mm² |
| Product Mounting | on support tube, 17 mm |
| Material |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1904008EN |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1904008EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications | UL |
| Ambient Air Temperature For Operation | -10-50 °C |
| Standards |
|
| Ip Degree Of Protection | IP23 vertical surface installation EN/IEC 60529 |
| Ambient Air Temperature For Storage | -35-70 °C |
| Overvoltage Category | class I EN/IEC 61140 |
| Electrical Shock Protection Class | class I EN/IEC 61140 |
| Protective Treatment | TC |
