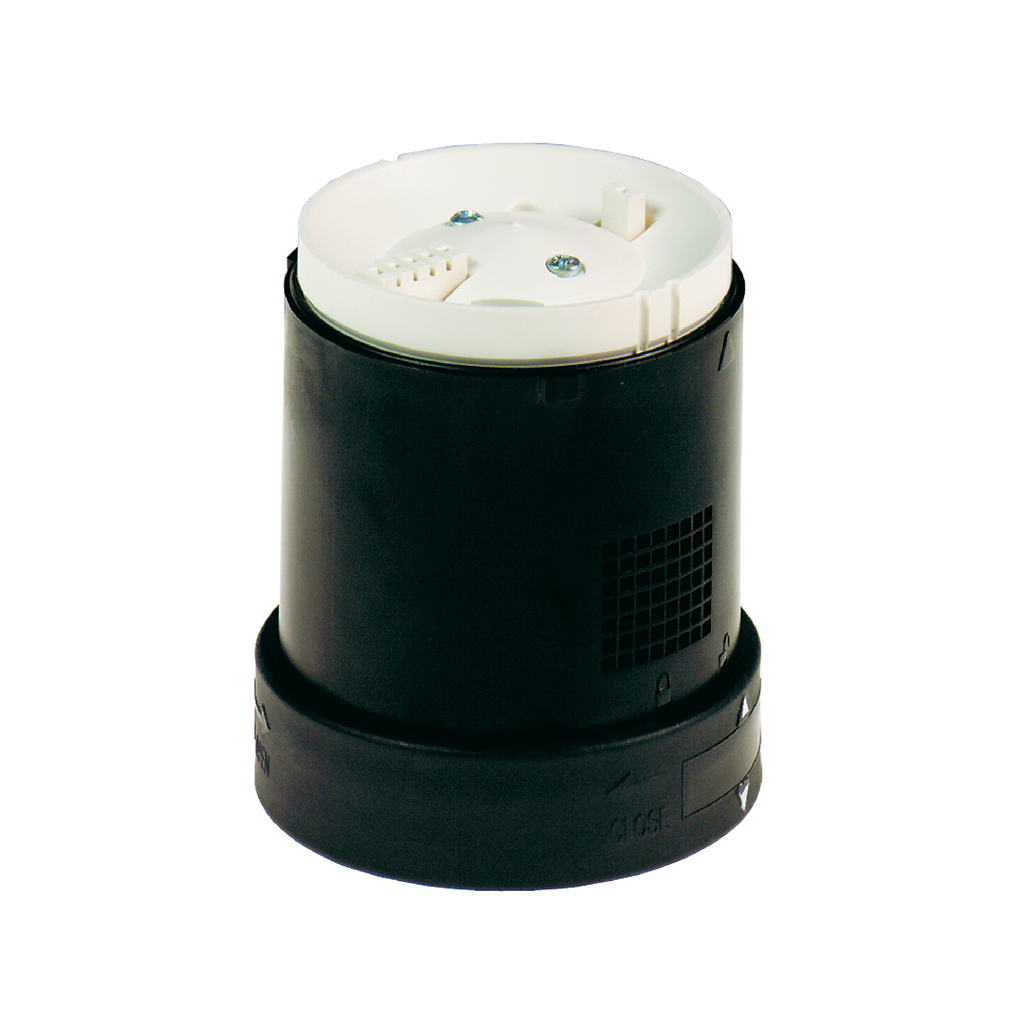

This Harmony XVB audible buzzer unit is supplied with 12V to 230V AC. This indicating bank buzzer is an accessory designed as an audible and signalling unit for custom assembly. It has a 70mm diameter It has a continuous or intermittent signal and its sound acoustic level is adjustable. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony XVB Universal |
---|---|
Mounting Diameter | 70 mm |
Product Or Component Type | indicator bank |
Component Name | XVBC |
Noise Level | 70-90 dB 1 m |
Beacon Or Indicator Bank Unit Type | audible unit |
[Us] Rated Supply Voltage | 120...230 V AC |
Warranty | 18 months |
Net Weight | 0.18 kg |
[Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60947-1 |
Cad Overall Height | 63 mm |
Current Consumption | < 25 mA |
Connections - Terminals | screw clamp terminals, <= 1 x 1.5 mm² with cable end |
Fundamental Frequency | 2.8 kHz |
[Ui] Rated Insulation Voltage | 250 V IEC 60947-1 |
Signalling Type | continuous or intermittent buzzer |
Nominal Voltage Limit | 0.85...1.1 Un IEC 60947-5-1 |
Assembly Style | customer assembly, up to 5 units |
Cad Overall Width | 70 mm |
Cad Overall Depth | 70 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP070907EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Operation | -25-50 °C |
Standards | EN/IEC 60947-5-1 |
Ip Degree Of Protection |
|
Ambient Air Temperature For Storage | -40-70 °C |
Nema Degree Of Protection | Type 4X UL indoor) |
Electrical Shock Protection Class |
|
Protective Treatment | TC |
