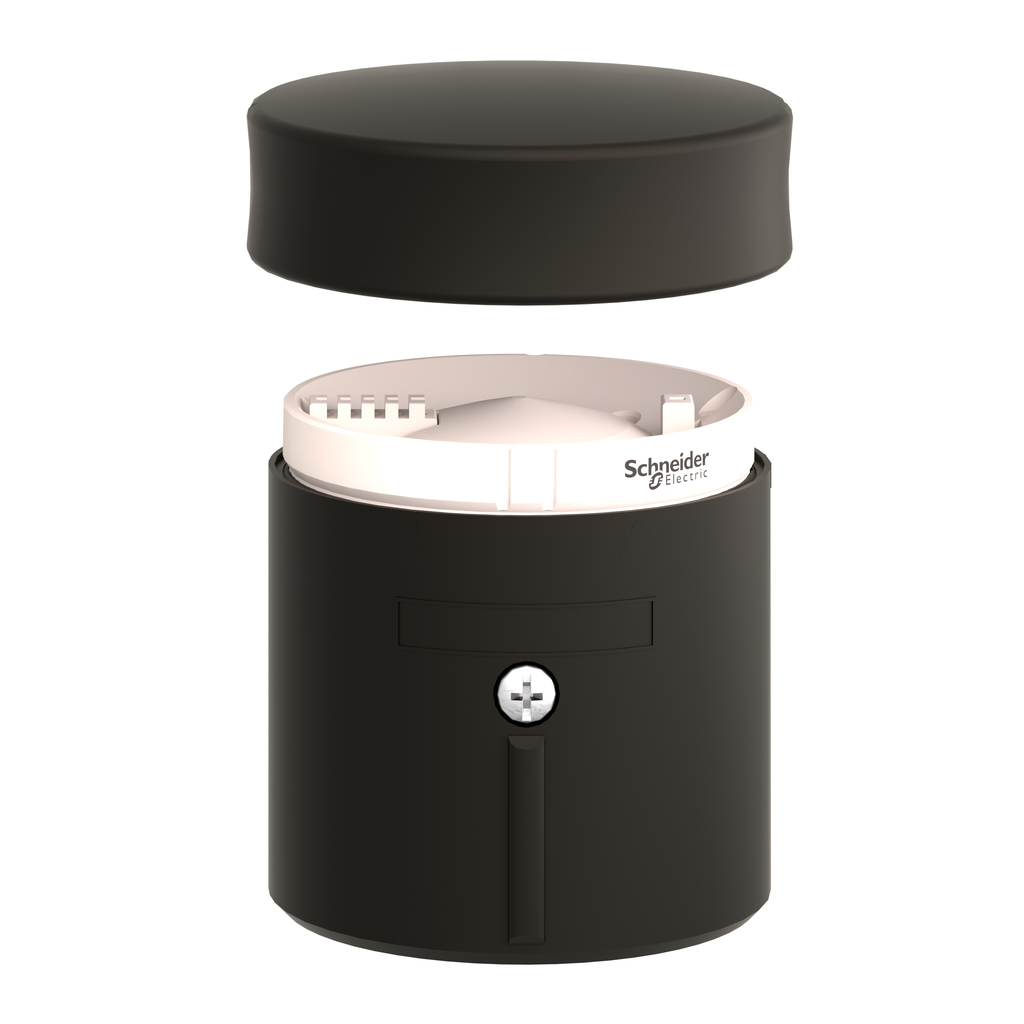

Indicating Bank, 70mm, base unit and cap, direct or tube mounting, bottom or side cable entry
Harmony XVB 70 mm modular beacons and tower lights are available with steady or flashing lights, and with incandescent or LED illumination. The XVB 70mm tower light range is modular line makes assembly simple which minimizes installation time. There are 5 illuminated units and an audible unit that are simple interchangeable units. The LEDs have a service life of 100,000 hours which reduces the need for maintenance. The wide variety of modules simplifies designing a tower light to meet your requirements. Harmony XVB 70 mm tower lights can be used in automotive, machine tool, material handling, packaging, assembly stations, conveyors and more. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XVB Universal |
|---|---|
| Product Or Component Type | base unit with cover |
| Component Name | XVBC |
| Material |
|
| Warranty | 18 months |
| Product Destination | banks without flash discharge tube unit |
| Terminals Description Iso N°1 |
|
| Fixing Mode | direct or tube fixing |
| Mounting Diameter | 70 mm |
| Net Weight | 0.19 kg |
| Electrical Connection | 1 connector standard input |
| Assembly Style | customer assembly, up to 5 units |
| Cable Entry | bottom or side entry |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP070907EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Standards | EN/IEC 60947-5-1 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection | Type 4X UL indoor) |
| Protective Treatment | TC |
