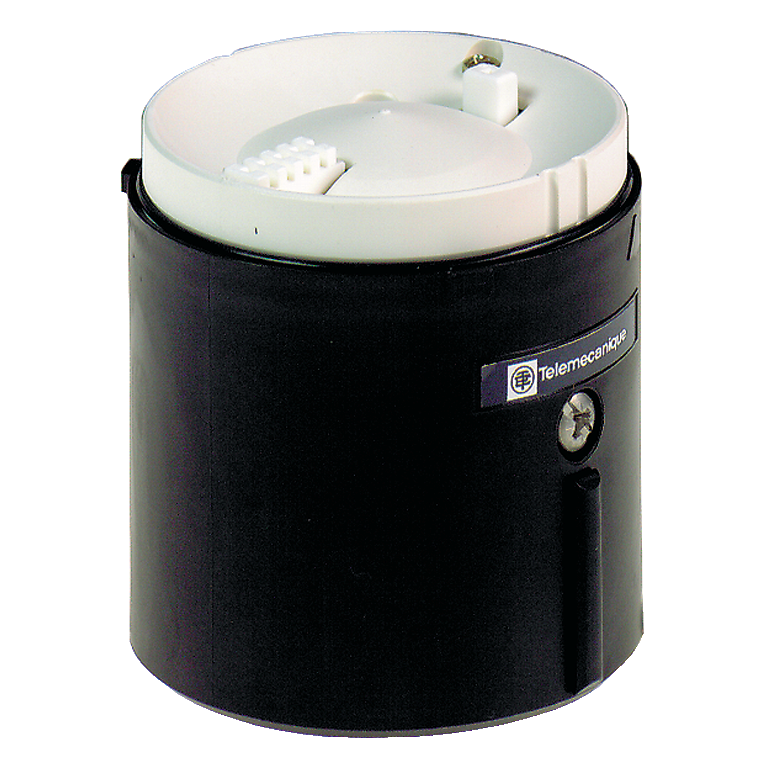

Base unit for modular tower lights, Harmony XVB, plastic, black, 70mm, bottom or side cable entry
This Harmony XVB base unit with bottom or side cable entry has a diameter of 70mm. This base unit is designed to be fitted with indicator bank to create complete tower light and allow clear display of the status of your machines. It is made of glass reinforced polyamide material and it allows the cable to entry from bottom or side. It complies with CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards with NEMA 4X protection. Simple and modular design to allow for easy installation with illuminated unit via tube fixing and make complete tower light. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XVB Universal |
|---|---|
| Product Or Component Type | base unit |
| Component Name | XVBC |
| Material | glass reinforced polyamide base unit |
| Warranty | 18 months |
| Product Destination | banks without flash discharge tube unit |
| Terminals Description Iso N°1 |
|
| Fixing Mode | direct or tube fixing |
| Mounting Diameter | 70 mm |
| Net Weight | 0.16 kg |
| Electrical Connection | 1 connector standard input |
| Assembly Style | customer assembly, up to 5 units |
| Cable Entry | bottom or side entry |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP070907EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Standards | EN/IEC 60947-5-1 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection | Type 4X UL indoor) |
| Protective Treatment | TC |
