expansion module, Modicon MCM, 4 safety relay outputs, with diagnostic outout, with backplane connection, screw

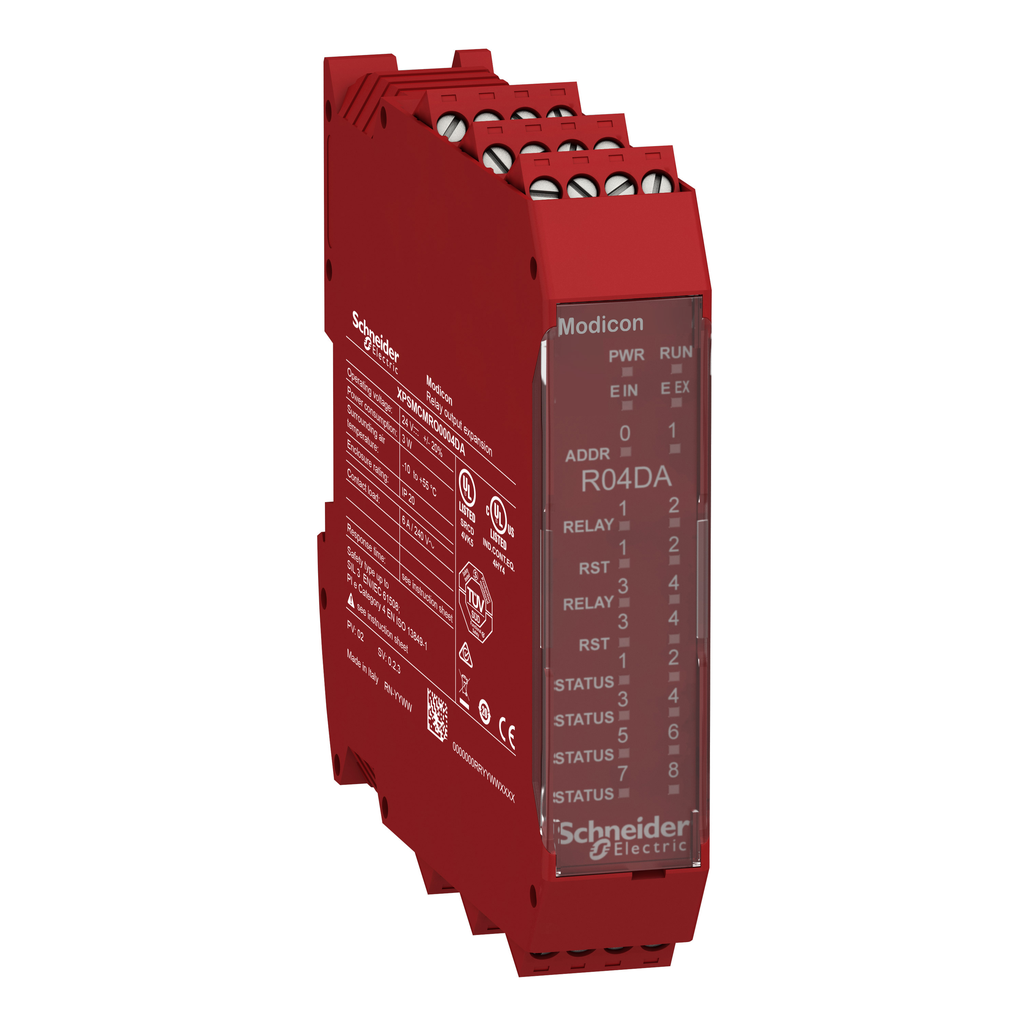

This Modicon MCM safe relay output expansion module has 4 start/restart interlock inputs, 4 relays with 8 status outputs and is fitted with captive screw clamp terminals. It is designed to monitor safety actuators for relay outputs, with a rated supply voltage of 24V DC and a maximum power dissipation of 3W. It is furnished with screw clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. The safe relay modules type XPSMCMER0004 use guided contact safety relays, each of which provides two N.O. contacts and one N.C. contact in addition to the N.C. feedback contact. This safe relay output expansion module figures LEDs on its front face, displaying the status (power supply, run, internal or external errors, inputs status, restart signal, output channels). The safe relay output modules type XPSMCMER0002 and XPSMCMER0004 do not require the backplane expansion connectors as they are directly wired to the selected OSSD. It weighs 0.3kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. The safe controller CPU Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. Compatible accessory for safe relay output module is a memory card. The module instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Preventa Safety automation |
|---|---|
| Number Of Outputs | 4 relay |
| Discrete Output Number | 8-8 solid state 125 mA diagnostics) |
| Product Or Component Type | safe relay output module |
| [Us] Rated Supply Voltage | 24 V - 20...20 % DC |
| Electrical Connection | screw terminal |
| Device Short Name | XPSMCM |
| Function Of Module | monitoring safety actuators relay output |
| Connections - Terminals |
|
| Switching Time | 12 ms |
| Number Of Terminal Blocks | 6 |
| Height | 99 mm |
| Integrated Connection Type | backplane expansion bus |
| Cable Cross Section |
|
| Maximum Switching Current | 6 A |
| Associated Fuse Rating | 3.5 A, slow-blow |
| Local Signalling |
|
| Net Weight | 0.33 kg |
| Maximum Switching Voltage |
|
| Output Type | relay, 4 NO, volt-free |
| Maximum Power Dissipation In W | 3 W |
| Quality Labels | CE |
| Minimum Switching Current | 20 mA |
| Mounting Support | omega 35 mm DIN rail EN 50022 |
| Quantity Per Set | 1 |
| Switching Voltage | 10 V DC |
| Width | 22.5 mm |
| Depth | 114.5 mm |
| Safety Level |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1409010EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1409010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -10-55 °C |
| Standards |
|
| Pollution Degree | 2 |
| Electromagnetic Compatibility |
|
| Vibration Resistance | +/-0.35 mm 10-55 Hz)EN/IEC 61496-1 |
| Shock Resistance | 10 gn 16 ms 1000 shocks on each axis)EN/IEC 61496-1 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 61800-5-1 |
| Ip Degree Of Protection | IP20 |
| Ambient Air Temperature For Storage | -20-85 °C |
| Service Life | 20 year(s) |
| Relative Humidity | 10-95 % |
| Mechanical Durability | 20000000 cycles |
| Safety Reliability Data |
|
| Overvoltage Category | II |
| Electrical Durability | 20000000 cycles |
| Insulation | 250 V AC between power supply and housing EN/IEC 61800-5-1 |
