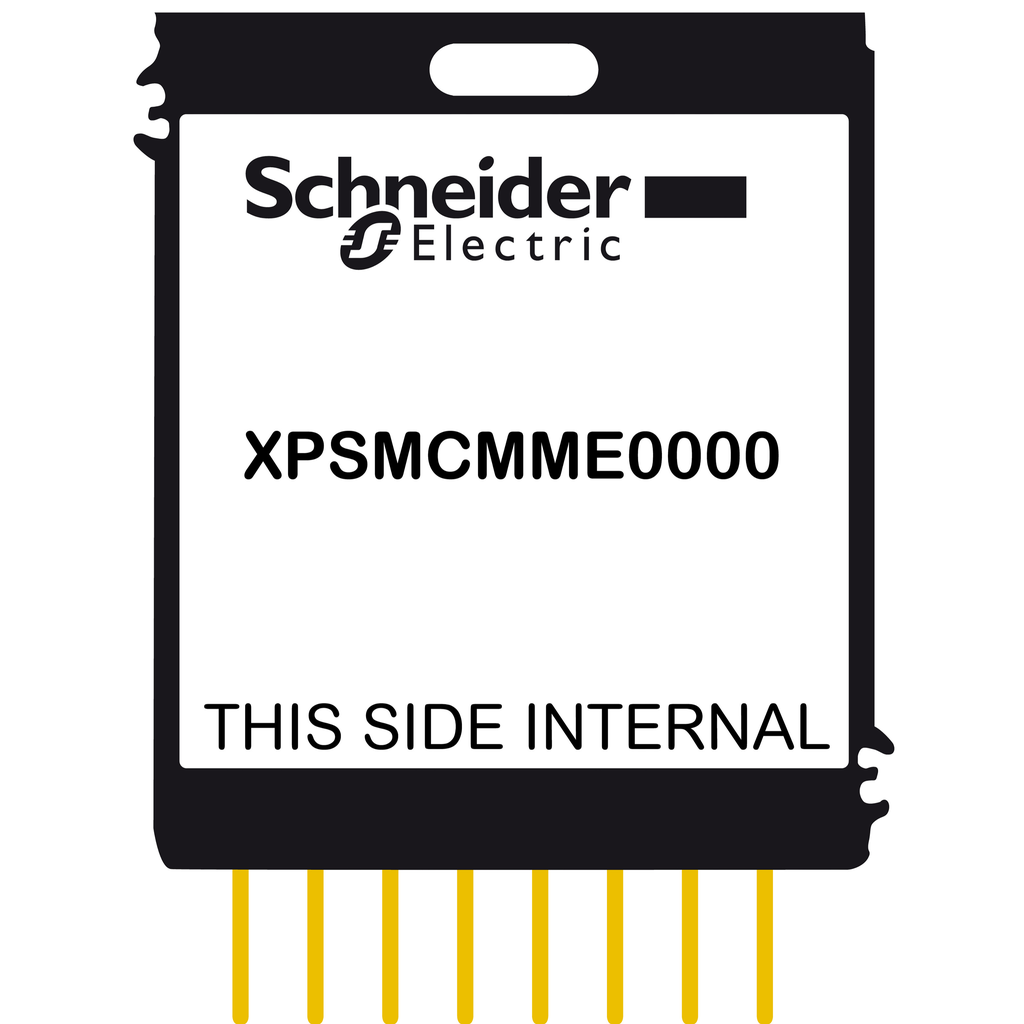

This Modicon MCM memory card is used to save safety PLC configuration data for subsequent transfer to a new PLC without using a PC. It enables quick and easy restart of your safety controller after an incident, without using a PC or checking configuration parameters. Its capacity is 512MB. Its dimensions are 18mm (Depth), 21.5mm (Height), and 2mm (Width). It weighs 0.004kg. The modular safety controllers Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. This memory card is compatible with the expansion modules and the safety controllers CPU. The memory card instals in the slot in the rear panel of the controller. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Preventa Safety automation |
---|---|
Memory Capacity | 512 MB |
Product Compatibility | XPSMCM |
Accessory / Separate Part Type | memory card |
Memory Usage | save and transfer configuration |
Memory Type | SDRAM |
Height | 21.5 mm |
Accessory / Separate Part Category | separate parts |
Net Weight | 0.004 kg |
Quantity Per Set | 1 |
Width | 2 mm |
Depth | 18 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
China Rohs Regulation | X |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Ambient Air Temperature For Operation | -10-55 °C |
Ambient Air Temperature For Storage | -20-85 °C |
Relative Humidity | 10-95 % without condensation |
