expansion modules, Modicon MCM, 2 digital output pairs, screw

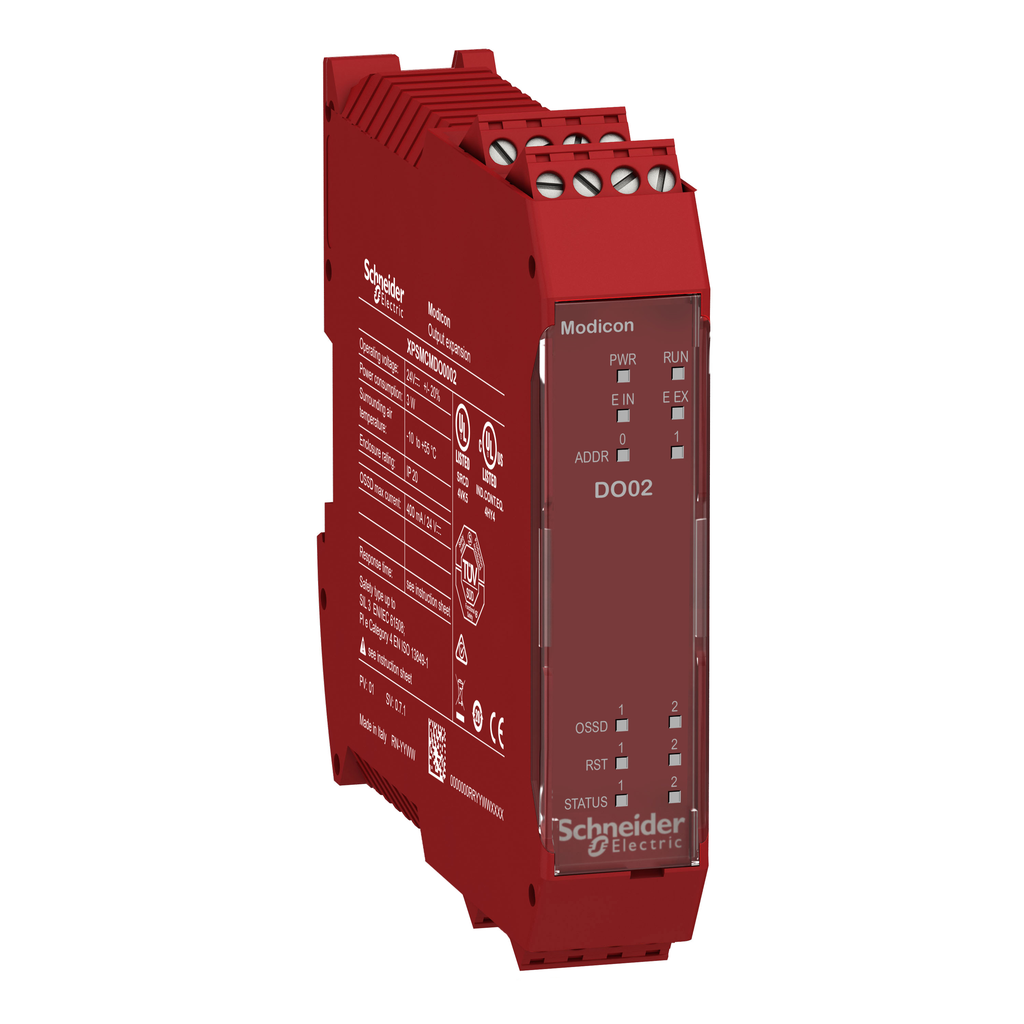

This Modicon MCM safe output expansion module has 2 start/restart interlock inputs, 2 output OSSD pairs and 2 status outputs and is fitted with captive screw clamp terminals. It is designed to monitor remotely your safe I/O. It is furnished with screw clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. This safe I/O module figures configurable filters and delays for each single input, configurable output activation and de-activation delays, independent control of pairs of outputs, and configurable diagnostic output signals. This module figures LEDs on its front face, displaying the status (power supply, run, internal or external errors, input and output status). This safe I/O module is connected to the safety controller via the backplane expansion connector. It weighs 0.23kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. This safe I/O module is certified by RCM, CULus and TÜV. It can reach such safety levels as category 4 conforming to EN/ISO 13849-1, PLe conforming to EN/ISO 13849-1, Type 4 conforming to EN/IEC 61496-1, and SILCL3 conforming to IEC 62061. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The module instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Discrete Output Type | PNP |
|---|---|
| Discrete Input Type | isolated |
| Range Of Product | Preventa Safety automation |
| Number Of Outputs |
|
| Product Or Component Type | safe output expansion module |
| Number Of Inputs | 2 digital external device monitoring |
| [Us] Rated Supply Voltage | 24 V - 20...20 % DC |
| Electrical Connection | screw terminal |
| Device Short Name | XPSMCM |
| Function Of Module | monitoring safety actuators discrete output |
| Connections - Terminals |
|
| Number Of Terminal Blocks | 4 |
| Height | 99 mm |
| Integrated Connection Type | backplane expansion bus |
| Cable Cross Section |
|
| Load Type | resistive load |
| Discrete Input Voltage | 24 V DC |
| Power Consumption In W | 3 W |
| Local Signalling |
|
| Net Weight | 0.23 kg |
| Discrete Output Voltage | 24 V DC |
| Power Dissipation In W | 3 W |
| Quality Labels | CE |
| Mounting Support | omega 35 mm DIN rail EN 50022 |
| Width | 114.5 mm |
| Discrete Output Current |
|
| Depth | 22.5 mm |
| Safety Level |
|
| Output Load | 60 Ohm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1409010EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1409010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Standards |
|
| Pollution Degree | 2 |
| Ambient Air Temperature For Operation | -10-55 °C |
| Electromagnetic Compatibility |
|
| Shock Resistance | 10 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1 |
| Vibration Resistance | +/-0.35 mm 10-55 Hz)EN/IEC 61496-1 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 61800-5-1 |
| Ip Degree Of Protection | IP20 enclosure) |
| Ambient Air Temperature For Storage | -20-85 °C |
| Service Life | 20 year(s) |
| Relative Humidity | 10-95 % |
| Safety Reliability Data |
|
| Overvoltage Category | II |
| Insulation | 250 V AC between power supply and housing EN/IEC 61800-5-1 |
