XESD1291 - Double contact block, Harmony XAC, spring return, 2 speed, snap action, 2NO 1 CO

XESD1291

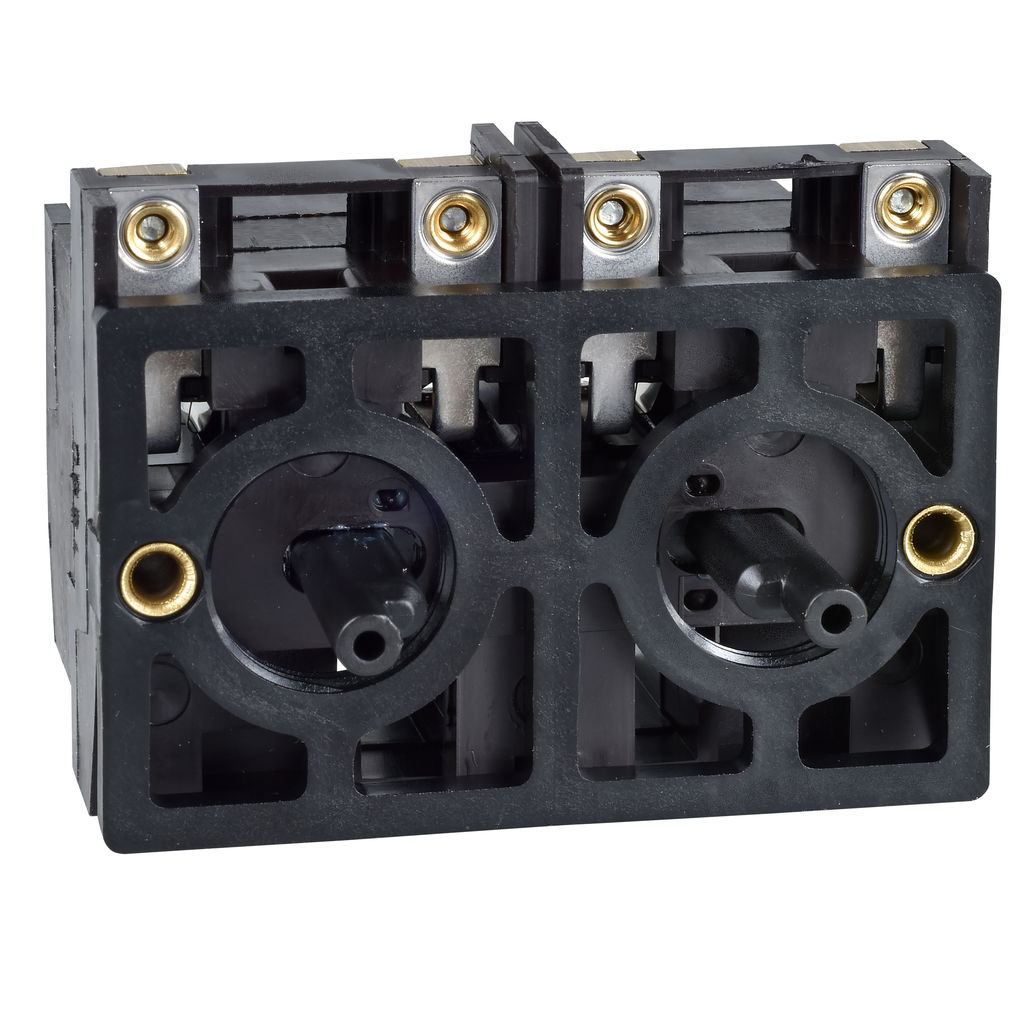

Double contact block, Harmony XAC, spring return, 2 speed, snap action, 2NO+1 CO

This Harmony XAC, contact block uses screw-clamp terminals and has 2 x NO + 1 changeover contact SPDT single pole double throw. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XACM and XACB pendant control stations and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It has clear labelling of the contact wiring and terminals names on the side of the block. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Mounting Of Block	front mounting
Range Of Product	Harmony XAC
Contact Block Type	double
Product Or Component Type	contact block
Contact Block Application	2-speed
Component Name	XESD
Contacts Type And Composition	2 NO + 1 C/O
Contact Operation	snap action staggered
Mechanical Interlocking	with mechanical interlocking
Poles Description	2-pole
Type Of Operator	2 spring return
Electrical Circuit Type	power circuit
Product Compatibility	XACB
Warranty	18 months
Terminal Identifier	(13-14)NO (11-12)NC
Terminals Description Iso N°2	B (43-44)NO (61-62-64)OC (33-34)NO
Terminals Description Iso N°1	(13-14)NO B (23-24)NO (51-52-54)OC
Horizontal Fixing Centres	40 mm
[Ithe] Conventional Enclosed Thermal Current	12 A
Short-Circuit Protection	10 A fuse protection cartridge aM
Net Weight	0.19 kg
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Electrical Durability	300000 cycles AC-3, 2200 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A 300000 cycles AC-3, 2200 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A 300000 cycles AC-4, 2200 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A 300000 cycles AC-4, 2200 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A 500000 cycles AC-3, 1500 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A 500000 cycles AC-4, 1500 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A 800000 cycles AC-3, 1500 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A 800000 cycles AC-4, 1500 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A
Connections - Terminals	screw clamp terminals, 1 x 2.5 mm² with or without cable end screw clamp terminals, 2 x 1.5 mm² with or without cable end
[Ui] Rated Insulation Voltage	600 VCSA
Mechanical Durability	500000 cycles 1000000 cycles
Rated Power In Hp	2 hp 240 V, CSA 3 hp 600 V, CSA 5 hp 400 V, CSA
Operating Force	17 N
Rated Operational Power In W	2200 W AC-3 240 V IEC 60947-3 appendix A 2200 W AC-4 400 V IEC 60947-3 appendix A
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation	-25-70 °C
Standards	IEC 60947-3 CSA C22.2 No 14 EN 60947-3
Shock Resistance	100 gn IEC 60068-2-27
Vibration Resistance	15 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-40-70 °C
Electrical Shock Protection Class	class II IEC 61140
