XENG3791 - Contact block, Harmony XAC, double contact, latching, single speed, front mounting, 1NO 1NC

XENG3791

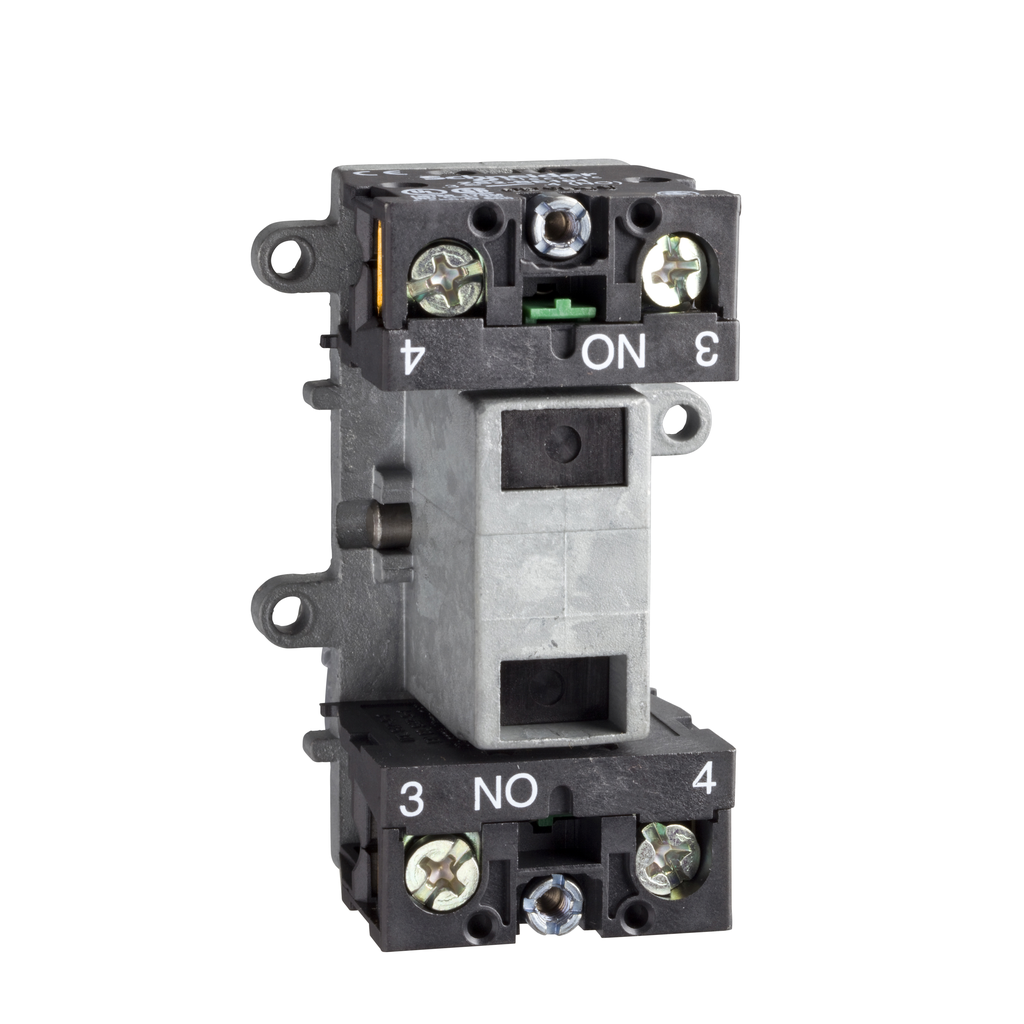

Contact block, Harmony XAC, double contact, latching, single speed, front mounting, 1NO + 1NC

This contact block allows fast and easy replacement and configuration of your push buttons and selector switches It protects operators from unexpected contact with live circuits thanks to its IP20 protection index It is easily installed and replaced on XACM and XACB pendant control stations and connects to control circuits with simple screw-clamp connections

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Mounting Of Block	front mounting
Contacts Type And Composition	1 NO + 1 NC
Range Of Product	Harmony XAC
Contact Operation	slow-break
Type Of Operator	latching
Contact Block Type	double
Electrical Circuit Type	control circuit
Product Or Component Type	contact block
Contact Block Application	single speed
Component Name	XENG
Product Compatibility	XACA
Warranty	18 months
Connections - Terminals	screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
Terminals Description Iso N°2	(11-12)NC B
Terminals Description Iso N°1	(13-14)NO B
[Ui] Rated Insulation Voltage	600 V 3)IEC 60947-1
Maximum Resistance Across Terminals	25 MOhm
Mechanical Durability	1000000 cycles
[Ithe] Conventional Enclosed Thermal Current	10 A
Operating Force	13 N
Short-Circuit Protection	10 A fuse protection cartridge gG
Contact Code Designation	A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
Rated Operational Power In W	40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
China Rohs Regulation	X
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Overvoltage Category	class II IEC 61140
Standards	UL 508 EN/IEC 60947-5-1 CSA C22.2 No 14
Shock Resistance	100 gn IEC 60068-2-27
Vibration Resistance	15 gn 10-500 Hz)IEC 60068-2-6
