Mounting Of Block | front mounting |
---|---|
Contacts Type And Composition | 2 NO |
Range Of Product | Harmony XAC |
Contact Operation |
|
Mechanical Interlocking | with mechanical interlocking |
Type Of Operator | 2 spring return |
Contact Block Type | double |
Electrical Circuit Type | control circuit |
Product Or Component Type | contact block |
Contact Block Application | single speed |

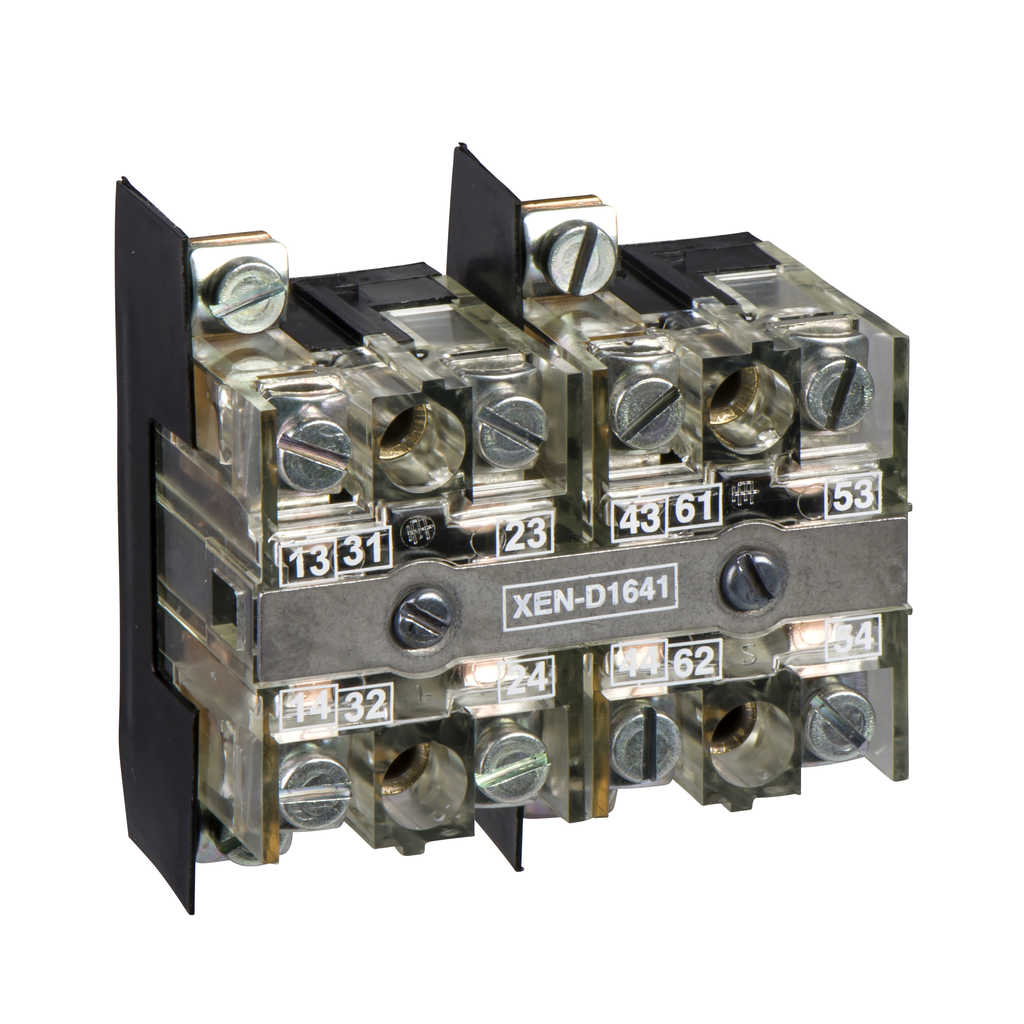

Component Name | XEND |
Product Compatibility |
|
Warranty | 18 months |
Terminal Identifier |
|
Connections - Terminals |
|
Terminals Description Iso N°2 |
|
Terminals Description Iso N°1 |
|
[Ui] Rated Insulation Voltage | 400 V 3)IEC 60947-1 |
Rated Operational Power In Va |
|
Maximum Resistance Across Terminals | 25 MOhm |
Mechanical Durability | 1000000 cycles |
[Ithe] Conventional Enclosed Thermal Current | 10 A |
Short-Circuit Protection | 10 A fuse protection cartridge gG |
Contact Code Designation |
|
Net Weight | 0.11 kg |
Rated Operational Power In W |
|
[Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
China Rohs Regulation | X |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Toxic Heavy Metal Free | Yes |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Ambient Air Temperature For Operation | -25-70 °C |
Ambient Air Temperature For Storage | -40-70 °C |
Standards |
|
Shock Resistance | 100 gn IEC 60068-2-27 |
Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
