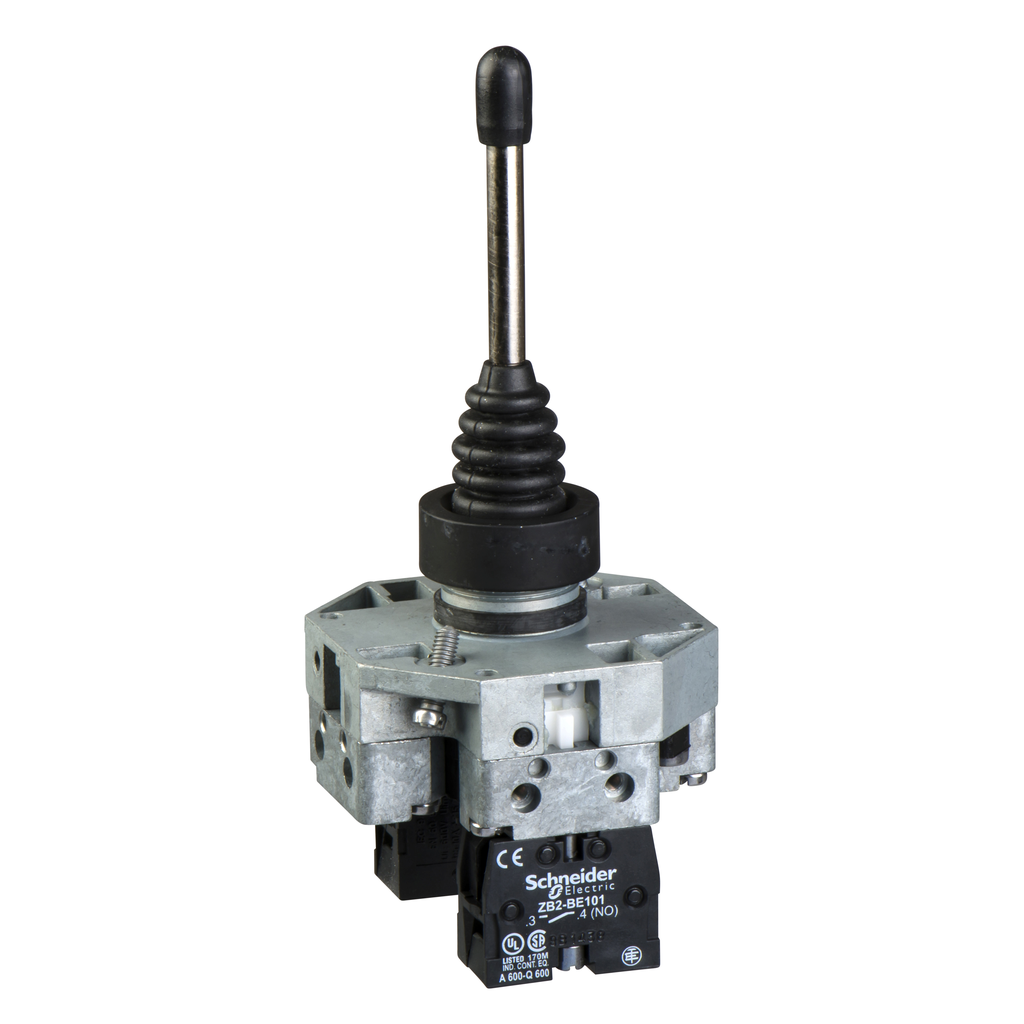

XDPC1111C1
Complete joystick controller, Harmony XK, XDP
This complete joystick controller provides an ergonomic interface for controlling your machines The joystick pocess 4 directions with 1 NO contact per direction It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments It is easily installed into a standard panel cut-outs and connected to control circuits with classic screw-clamp connections It provides a smooth and precise control of your machine in a variety of industrial applications
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Sale Per Indivisible Quantity | 1 |
|---|---|
| Range Of Product | Harmony XK |
| Bezel Material | plastic |
| Mounting Diameter | 48 mm |
| Product Or Component Type | complete joystick controller |
| Device Short Name | XDP |
| Warranty | 18 months |
| Contacts Usage | standard |
| Contacts Type And Composition | 4 NO |
| Height | 158.6 mm |
| Operator Position Information | 2 positions |
| Mechanical Durability | 1000000 cycles |
| Return | spring return |
| Width | 65 mm |
| Depth | 44 mm |
| Operator Direction Information | 1 direction |
| Net Weight | 0.5 kg |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1310004EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1310004EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Ambient Air Temperature For Operation | -40-60 °C |
| Standards |
|
| Ip Degree Of Protection | IP65 |
