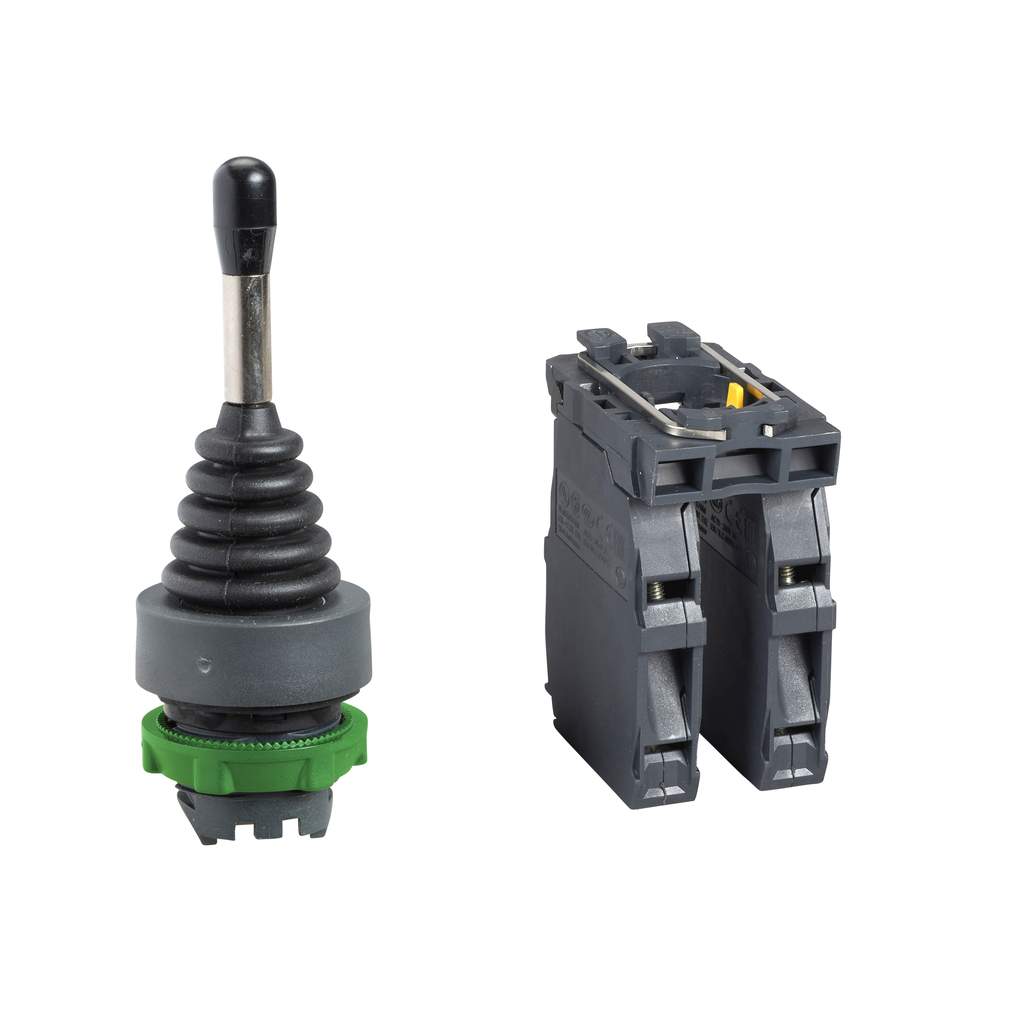

This Harmony XB5, joystick controller operates with 4 direction stay-put mechanism. It has 1 x NO contact and a plastic bezel. This complete joystick controller provides an ergonomic interface for controlling your machines. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It provides a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is deal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony XB5 |
---|---|
Mounting Diameter | 22 mm |
Type Of Operator | stay put |
Product Or Component Type | joystick controller |
Shape Of Signaling Unit Head | round |
Operator Direction Information | 4 directions |
Fixing Collar Material | plastic |
Connections - Terminals |
|
Sale Per Indivisible Quantity | 1 |
Bezel Material | plastic |
Operator Profile | 54 mm long operating shaft |
Operator Position Information | 5 positions |
Device Short Name | XD5 |
Warranty | 18 months |
Contacts Usage | standard |
Height | 47 mm |
Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
Contacts Material | silver alloy (Ag/Ni) |
Positive Opening | without |
[Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
Net Weight | 0.077 kg |
[Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
Device Presentation | complete product |
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
Electrical Durability |
|
Contacts Type And Composition | 1 NO |
[Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
[Ie] Rated Operational Current |
|
Contact Operation | slow-break |
Mechanical Durability | 1000000 cycles |
Notch Per Direction | 1-1 |
Electrical Reliability |
|
Width | 30 mm |
Depth | 132 mm |
Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
Shape Of Screw Head |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP111026EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK03 IEC 50102 |
Ambient Air Temperature For Operation | -25-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection | IP66 IEC 60529 |
Ambient Air Temperature For Storage | -40-70 °C |
Nema Degree Of Protection |
|
Electrical Shock Protection Class | class II IEC 60536 |
Protective Treatment | TH |
