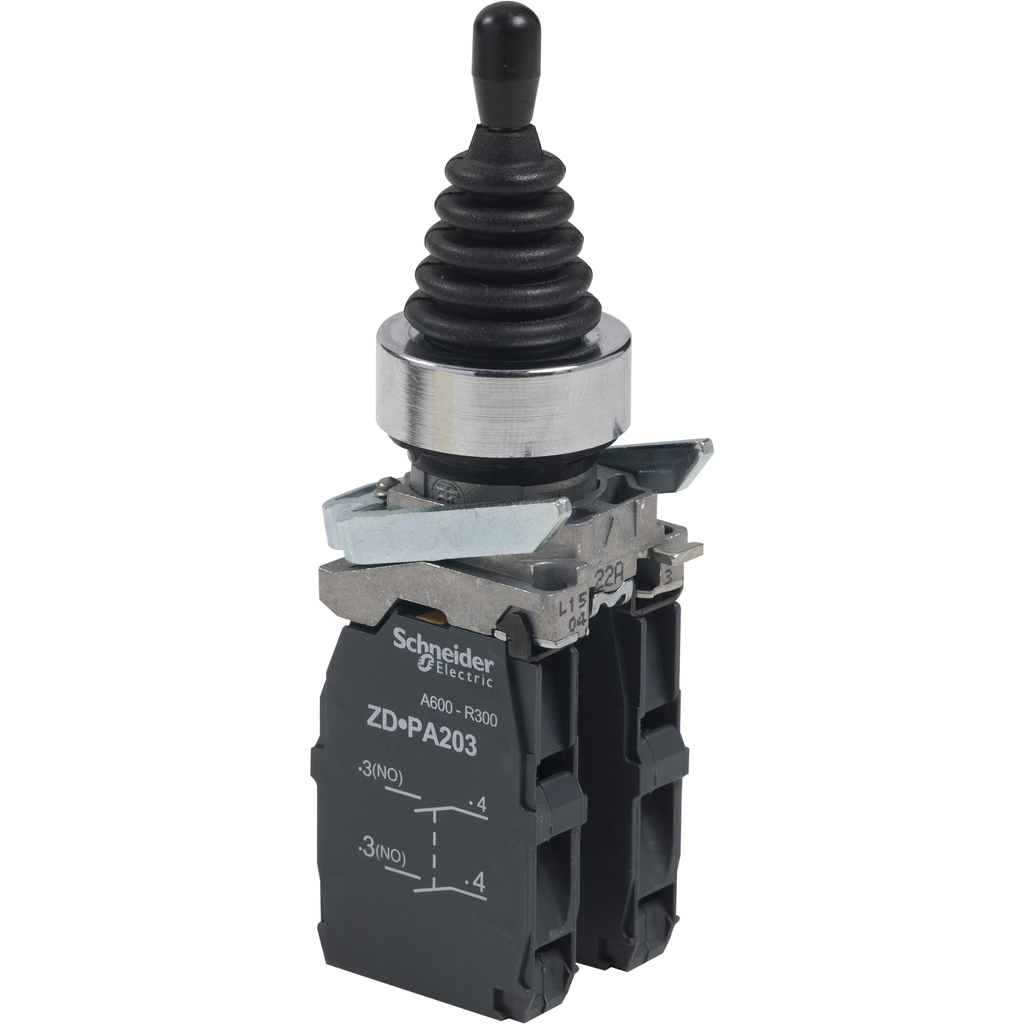

XD4PA1656241
XD4 joystick controller with 50mm shaft
This complete joystick controller is part of the range Harmony XD. It features a 50mm shaft and screw connection type. It is easily installed into a standard 30mm diameter cut-out.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Sale Per Indivisible Quantity | 1 |
|---|---|
| Bezel Material | chromium plated metal |
| Mounting Diameter | 30 mm |
| Product Or Component Type | joystick controller |
| Device Short Name | XD4 |
| Fixing Collar Material | zamak |
| Warranty | 18 months |
| Contacts Usage | standard |
| Shape Of Signaling Unit Head | round |
| Device Presentation | complete product |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110718EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications | BV |
| Ik Degree Of Protection | IK03 IEC 50102 |
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | CSA C22.2 No 14 |
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class I IEC 60536 |
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
