XD4PA14

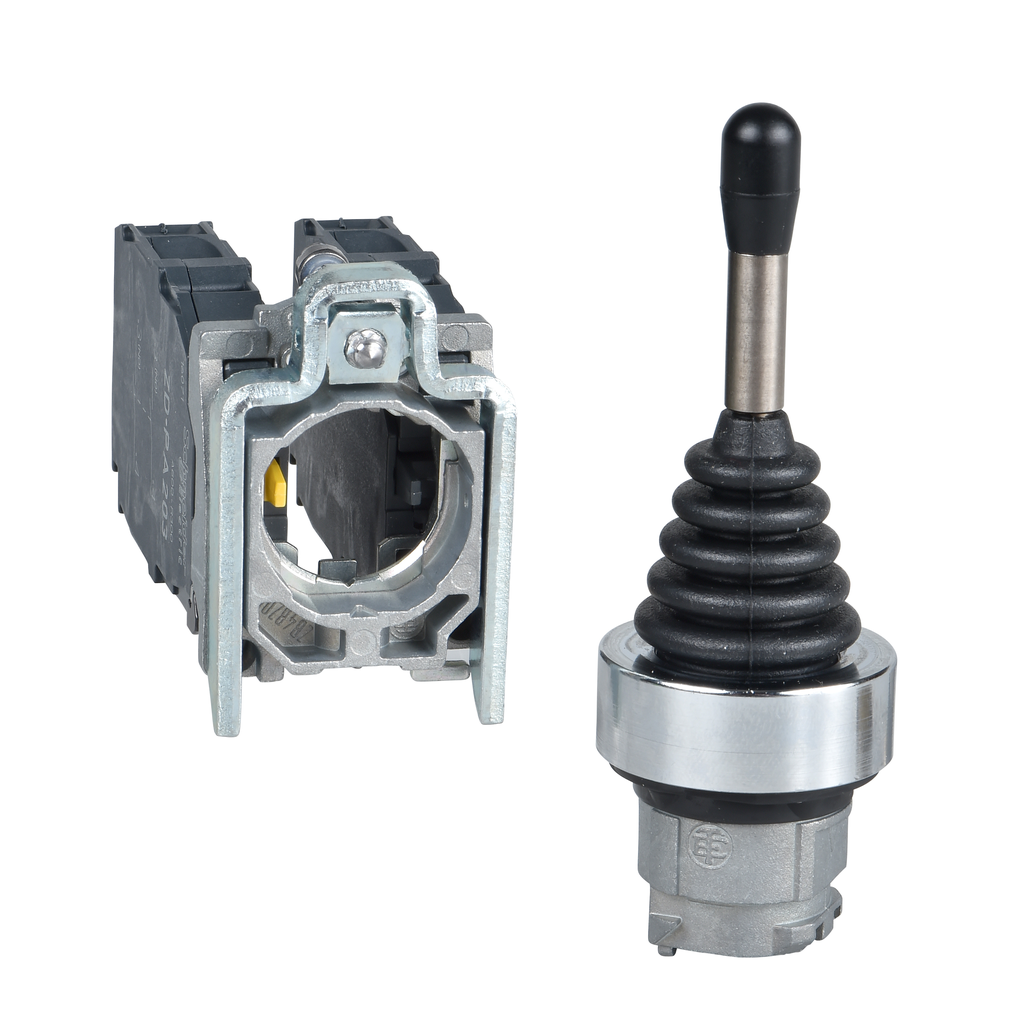

Joystick controller, Harmony XB4, metal, 22mm, 4 directions, stay put, 1NO
This Harmony XB4, joystick controller operates with 2-direction stay-put mechanism. It has 2 x NO (1 per direction) contacts and a chromium-plated metal bezel. This joystick provides a versatile and intuitive interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XDA |
|---|---|
| Mounting Diameter | 22 mm |
| Product Or Component Type | joystick controller |
| Operator Direction Information | 4 directions |
| Fixing Collar Material | zamak |
| Type Of Operator | stay put, long operating shaft 54 mm |
| Connections - Terminals |
|
| Contacts Type And Composition | 1 NO |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | chromium plated metal |
| Contact Operation | slow-break |
| Operator Position Information | 5 positions |
| Device Short Name | XD4 |
| Warranty | 18 months |
| Contacts Usage | standard |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Contacts Material | silver alloy (Ag/Ni) |
| Positive Opening | without |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Shape Of Signaling Unit Head | round |
| Net Weight | 0.133 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
| Device Presentation | complete product |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Electrical Durability |
|
| [Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| [Ie] Rated Operational Current |
|
| Mechanical Durability | 1000000 cycles |
| Notch Per Direction | 1-1 |
| Electrical Reliability |
|
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Shape Of Screw Head |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110718EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ik Degree Of Protection | IK03 IEC 50102 |
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class I IEC 60536 |
| Protective Treatment | TH |
