XBTZG9721
Harmony XBT - direct connection cable - for XBTGK, XBTGT, XBTGR - 2.5 m

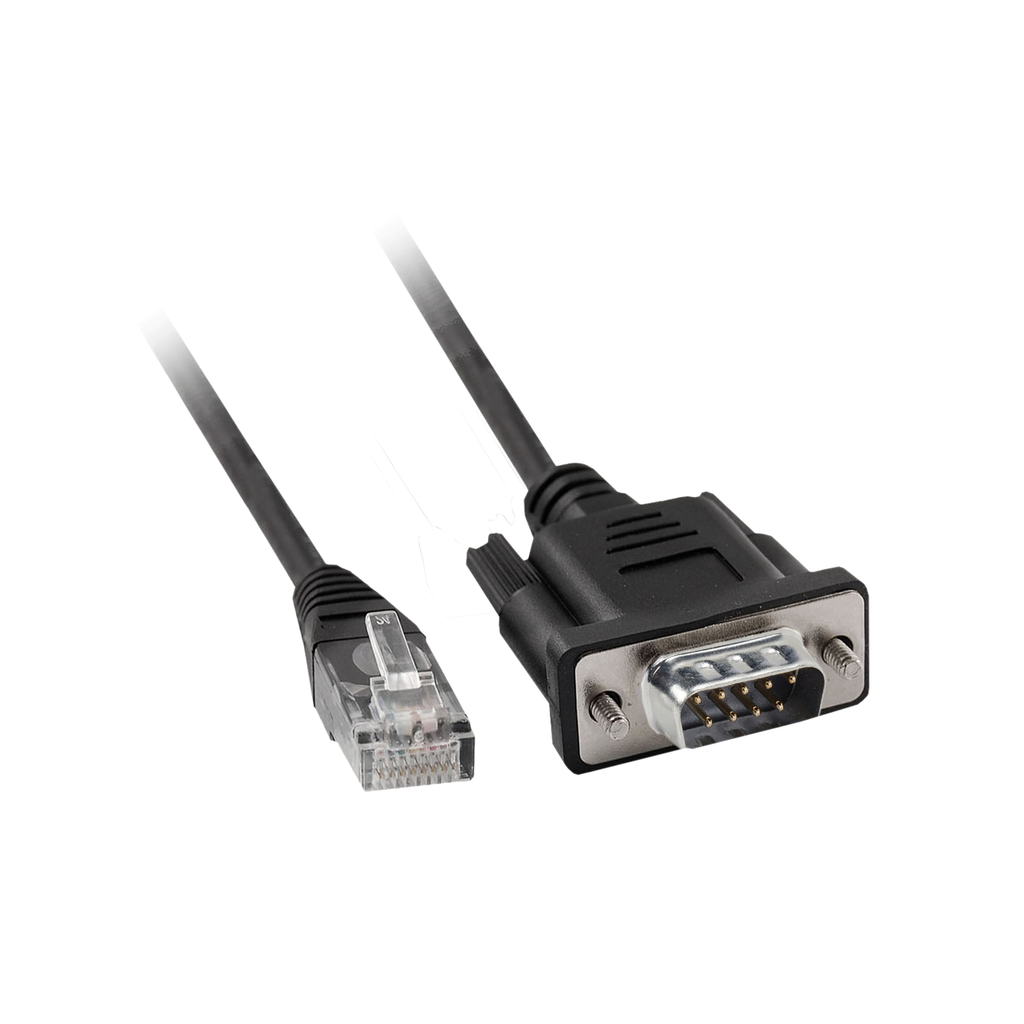

This Magelis XBTZ is a RS 485 cable for connecting Magelis terminals to third-party PLCs. It enables direct connection of XBTGH / XBTGT and GTO / GTU terminals to Siemens, Simatic PLCs. It is equipped with one RJ45 male connector at one end and one 9-way male SUB-D connector at the other end. It complies with Siemens PPI protocol. it is 2.5 meters long.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XBT |
|---|---|
| Accessory / Separate Part Designation | direct connection cable |
| Accessory / Separate Part Category | connection accessories |
| Accessory / Separate Part Type | connecting cable |
| Accessory / Separate Part Destination |
|
| Warranty | 18 months |
| Communication Port Protocol |
|
| Physical Interface | RS485 |
| Electrical Connection |
|
| Cable Length | 2.5 m |
| Range Compatibility |
|
| Product Compatibility |
|
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1402015EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1402015EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Documents
- Spec Sheet
- Catalog Harmony GTO Standard and Stainless HMI panels English 03/2020 - DIA5ED2130616EN (pdf)
- Catalog Harmony STO and STU Compact color HMI panels English 10/2021 - Catalog+Harmony+STO+and+STU+compact+color+HMI+panels (pdf)
- Catalog Magelis XBTGT Advanced Touch panels English 03/2017 - DIA5ED2131201EN+(web) (pdf)
- Catalog Harmony GTU: High-performance IoT-ready modular HMI panels - English 2023 - DIA5ED2140401EN_v10.0 (pdf)
- Catalog - Harmony GTUX: eXtreme outdoor HMI panels_English 06/2023 - DIA5ED2181203EN (pdf)
- Catalog Harmony GK Keyboard-Touchscreen HMI panels English 03/2020 - DIA5ED2160601EN (pdf)
