XBTZ9980
Magelis XBT N, R, RT, Modbus serial link for XBT terminal, 2.5 m, connectors RJ45

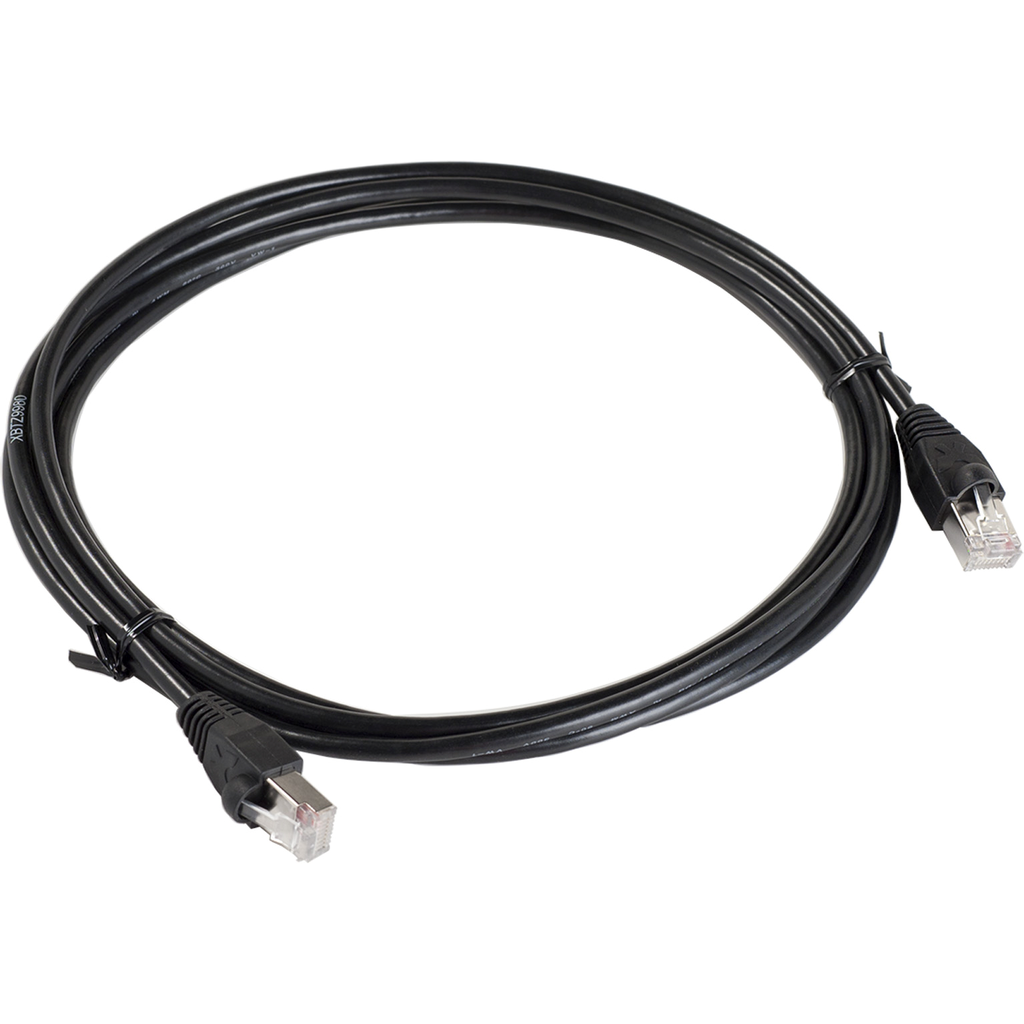

This Magelis XBTZ is a RS 485 cable for Modbus serial link. It is equipped with one male RJ45 connector at each end. it is 2.5 meters long. It enables direct connection between Magelis XBT terminals and PLCs.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product |
|
|---|---|
| Accessory / Separate Part Designation | Modbus serial link |
| Cable Length | 2.5 m |
| Accessory / Separate Part Category | connection accessories |
| Accessory / Separate Part Type | connecting cable |
| Accessory / Separate Part Destination |
|
| Warranty | 18 months |
| Electrical Connection | 2 male connectors RJ45 |
| Communication Port Protocol | Modbus |
| Physical Interface | RS485 |
| Range Compatibility |
|
| Product Compatibility |
|
| Net Weight | 0.23 kg |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
