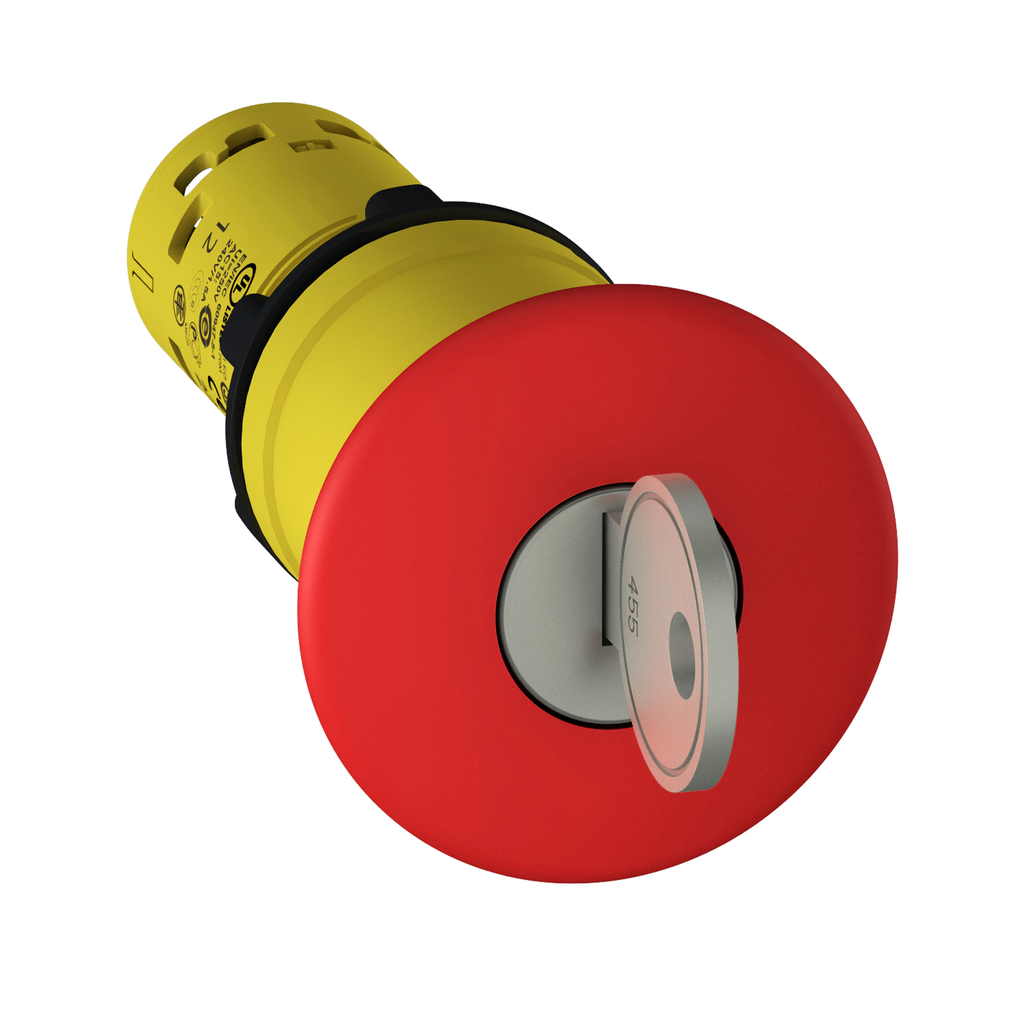

This Harmony XB7, Emergency stop 40mm mushroom head monolithic red push button operates with a latched key release (key no.455) mechanism and screw clamp terminals. This emergency stop is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Brand: Schneider Electric
Add to Quote CatalogueReset | key release |
---|---|
Range Of Product | Harmony XB7 |
Mounting Diameter | 22 mm |
Type Of Operator | mechanical latching |
Product Or Component Type | emergency stop push-button |
Shape Of Signaling Unit Head | round |
Device Presentation | monolithic product |
Connections - Terminals |
|
Contacts Type And Composition | 2 NC |
Sale Per Indivisible Quantity | 10 |
Operator Profile | red mushroom Ø 40 mm, unmarked |
Device Short Name | XB7 |
Type Of Keylock | key 455 |
Warranty | 18 months |
Contacts Usage | standard |
Terminals Description Iso N°1 |
|
Short-Circuit Protection | 4 A cartridge fuse gG EN/IEC 60947-5-1 |
Fixing Center |
|
Positive Opening | with EN/IEC 60947-5-1 appendix K |
Fixing Mode | fixing nut beneath head 2-2.4 N.m |
Net Weight | 0.035 kg |
[Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 |
Cad Overall Height | 40 mm |
Electrical Durability |
|
[Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
[Ie] Rated Operational Current |
|
Contact Operation | snap action |
Mechanical Durability | 100000 cycles |
Electrical Reliability | λ < 5 x 10exp(-7) 17 V 5 mA IEC 60947-5-4 |
Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
Cad Overall Width | 40 mm |
Cad Overall Depth | 72 mm |
Shape Of Screw Head |
|
Device Mounting | fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1 |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1805012EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1805012EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Operation | -25-70 °C |
Standards |
|
Shock Resistance | 15 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection |
|
Ambient Air Temperature For Storage | -40-70 °C |
Nema Degree Of Protection |
|
Electrical Shock Protection Class | class II IEC 60536 |
Protective Treatment | TH |
