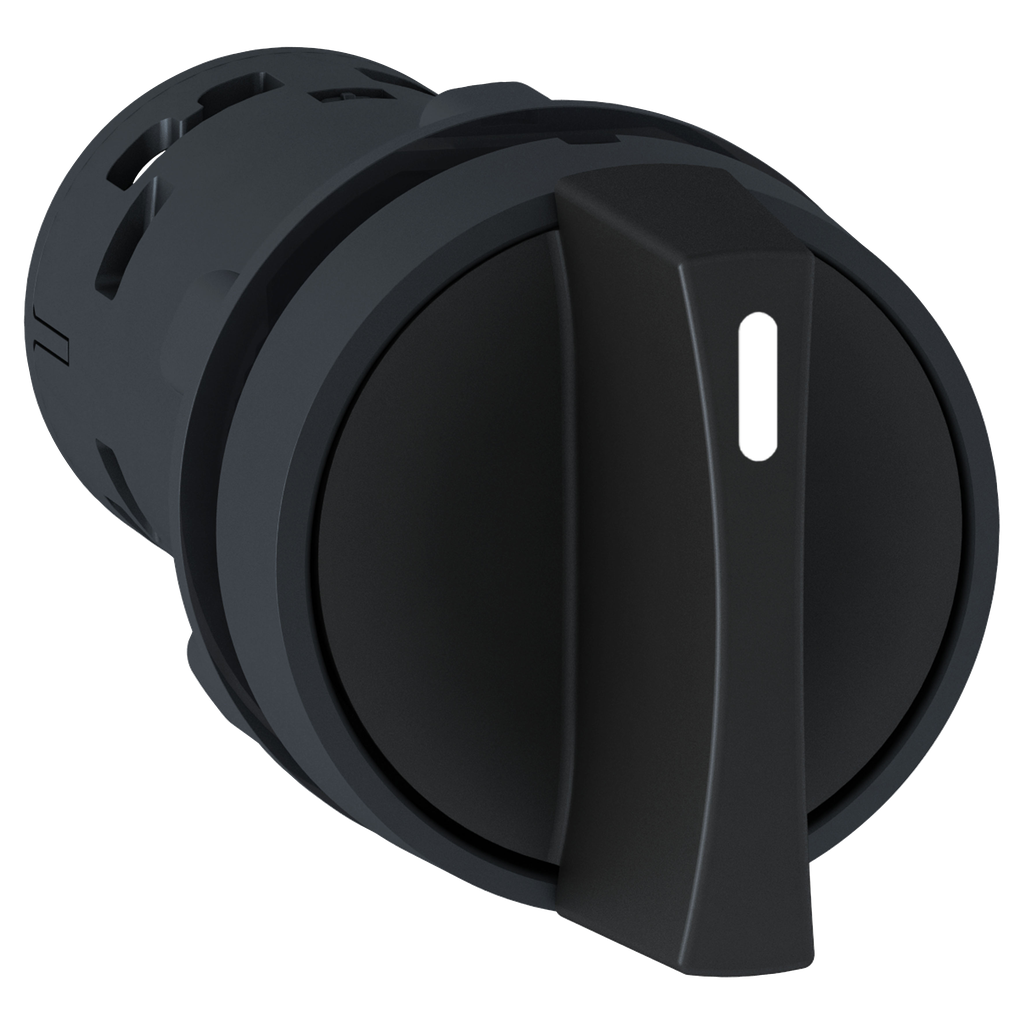

This Harmony XB7, monolithic black selector switch has 2 positions, operates with a stay-put mechanism and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to give your machine multiple different inputs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony XB7 |
---|---|
Positive Opening | without |
Mounting Diameter | 22 mm |
Type Of Operator | stay put |
Product Or Component Type | selector switch |
Shape Of Signaling Unit Head | round |
Net Weight | 0.026 kg |
Ip Degree Of Protection |
|
Contacts Type And Composition | 1 NO |
Sale Per Indivisible Quantity | 10 |
Operator Profile | black standard handle |
Operator Position Information | 2 positions 90° |
Device Short Name | XB7 |
Warranty | 18 months |
Terminals Description Iso N°1 | (13-14)NO |
Short-Circuit Protection | 4 A cartridge fuse gG EN/IEC 60947-5-1 |
Fixing Center |
|
Fixing Mode | fixing nut 2-2.4 N.m |
[Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 |
Cad Overall Height | 29 mm |
Electrical Durability |
|
Connections - Terminals |
|
[Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
[Ie] Rated Operational Current |
|
Contact Operation | slow-break |
Mechanical Durability | 300000 cycles |
Electrical Reliability | λ < 10exp(-6) 17 V 5 mA IEC 60947-5-4 |
Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
Cad Overall Width | 29 mm |
Cad Overall Depth | 68.5 mm |
Shape Of Screw Head |
|
Device Mounting | fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1 |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1805012EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1805012EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Ambient Air Temperature For Operation | -25-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ambient Air Temperature For Storage | -40-70 °C |
Nema Degree Of Protection |
|
Electrical Shock Protection Class | class II IEC 61140 |
Protective Treatment | TH |
