XB7NA65

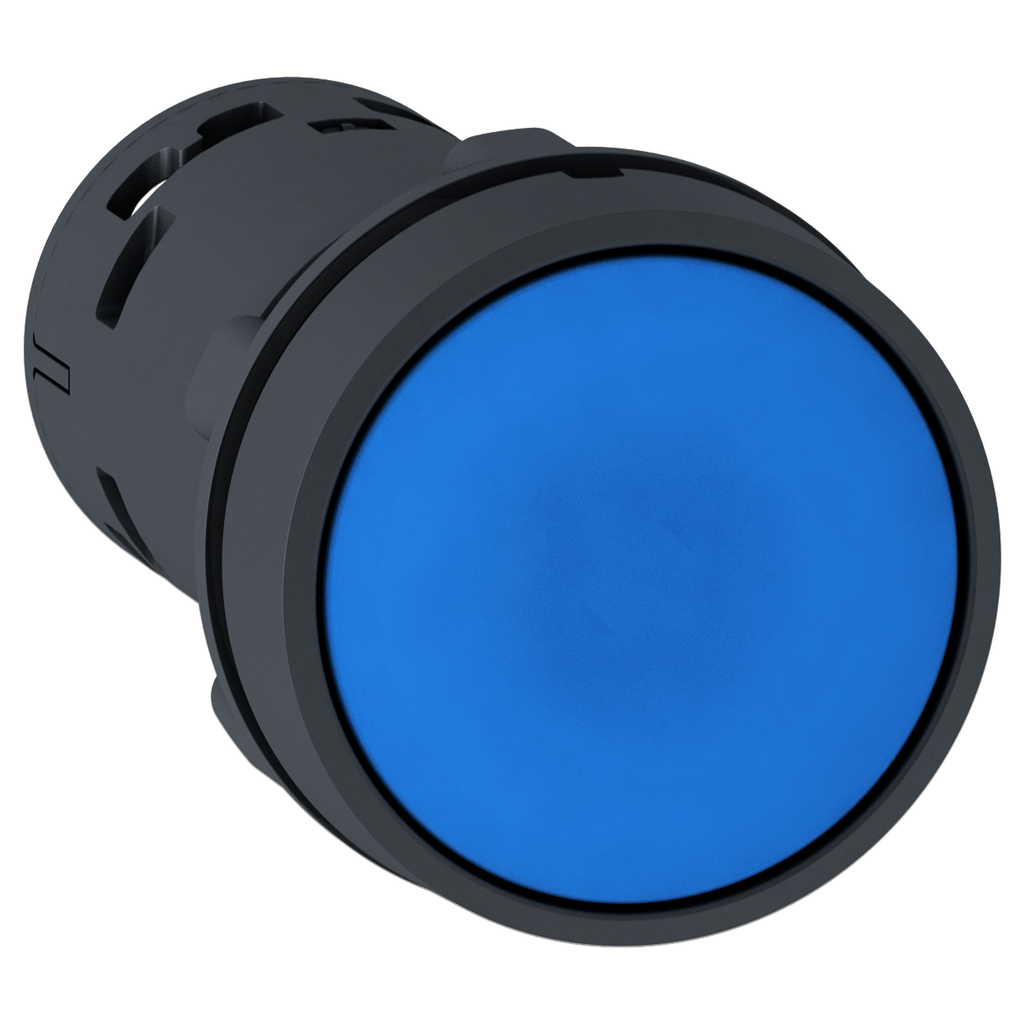

Monolithic push button, Harmony XB7, plastic, blue, 22mm, spring return, unmarked, 1NO+1NC
This Harmony XB7, monolithic blue push button operates with a spring return / impulse mechanism and screw clamp terminals. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XB7 |
|---|---|
| Mounting Diameter | 22 mm |
| Type Of Operator | spring return |
| Product Or Component Type | push-button |
| Shape Of Signaling Unit Head | round |
| Ip Degree Of Protection |
|
| Device Presentation | monolithic product |
| Connections - Terminals |
|
| Contacts Type And Composition | 1 NO + 1 NC |
| Sale Per Indivisible Quantity | 10 |
| Operator Profile | blue flush, unmarked |
| Device Short Name | XB7 |
| Warranty | 18 months |
| Terminals Description Iso N°1 |
|
| Short-Circuit Protection | 4 A cartridge fuse gG EN/IEC 60947-5-1 |
| Fixing Center |
|
| Positive Opening | with NC contact EN/IEC 60947-5-1 appendix K |
| Fixing Mode | fixing nut beneath head 2-2.4 N.m |
| Net Weight | 0.021 kg |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 |
| Cad Overall Height | 29 mm |
| Electrical Durability |
|
| [Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| [Ie] Rated Operational Current |
|
| Contact Operation | slow-break |
| Mechanical Durability | 1000000 cycles |
| Electrical Reliability | λ <= 10exp(-6) 17 V, 5 mA EN/IEC 60947-5-4 |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Cad Overall Width | 29 mm |
| Cad Overall Depth | 51.5 mm |
| Shape Of Screw Head |
|
| Device Mounting | fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1805012EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1805012EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 61140 |
| Nema Degree Of Protection |
|
| Protective Treatment | TH |
