XB7EV65P

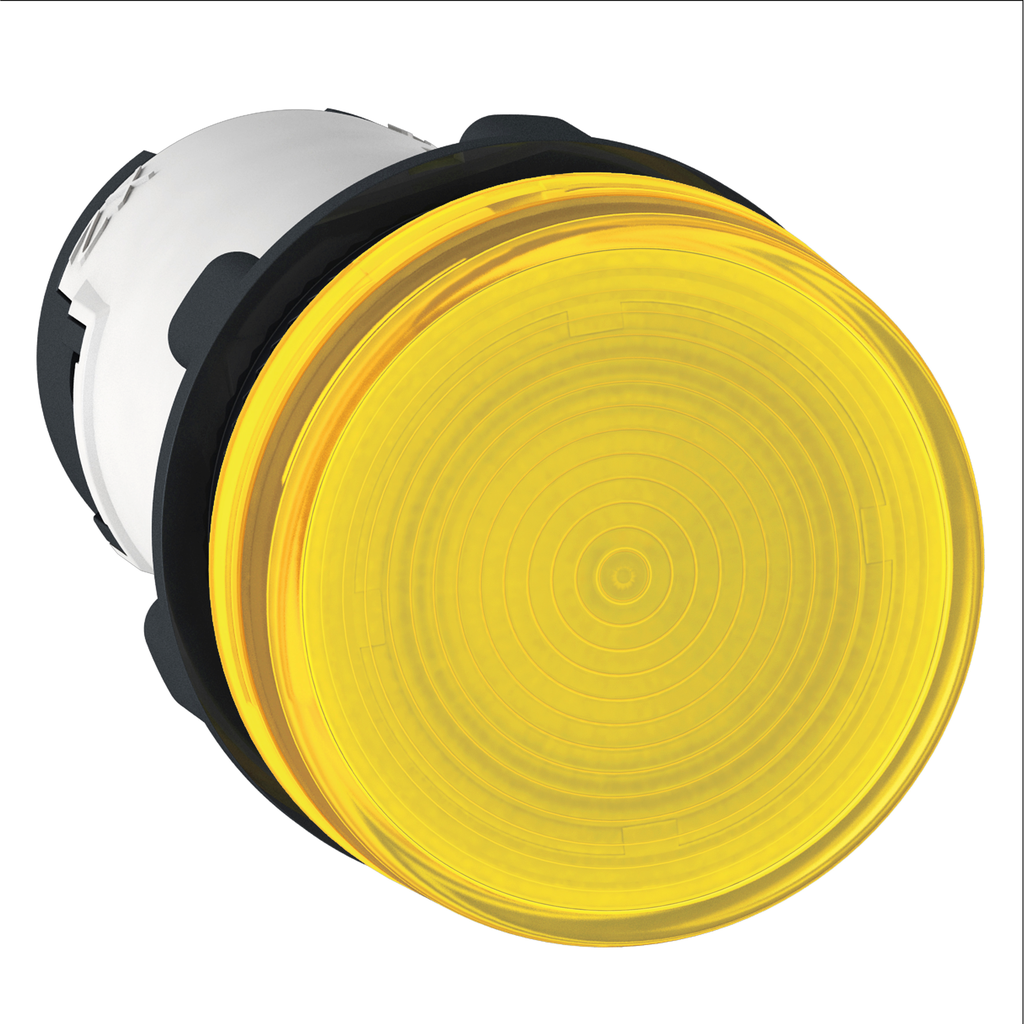

Monolithic pilot light, Harmony XB7, plastic, yellow, 22mm, plain lens for BA9s bulb, lt 250V
This Harmony XB7, monolithic yellow pilot light does not include bulb and is supplied with 250V AC, uses BA9s base and has screw-clamp terminals. It is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via BA9s base, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant thanks to its IP54, making it ideal for operation in low pressure environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Operator Additional Information | with plain lens |
|---|---|
| Range Of Product | Harmony XB7 |
| Light Source | incandescent (bulb not included) |
| Mounting Diameter | 22 mm |
| Product Or Component Type | pilot light |
| Device Presentation | monolithic product |
| Sale Per Indivisible Quantity | 10 |
| Device Short Name | XB7 |
| Warranty | 18 months |
| Height | 29 mm |
| Terminals Description Iso N°1 | (X1-X2)PL |
| Fixing Center |
|
| Light Block Supply | direct |
| Fixing Mode | fixing nut beneath head 2-2.4 N.m |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | yellow |
| Net Weight | 0.018 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
| Connections - Terminals |
|
| [Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| Signalling Type | steady |
| Overvoltage Category | class II IEC 60536 |
| Compatibility Code | XB7 |
| Width | 29 mm |
| Depth | 54 mm |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Shape Of Screw Head |
|
| Device Mounting | fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-5-1 |
| [Us] Rated Supply Voltage | <= 250 V |
| Bulb Base | BA 9s |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1805012EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1805012EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ambient Air Temperature For Operation | -25-55 °C |
| Standards |
|
| Electromagnetic Compatibility | disturbing field emissionclass B EN 55011 |
| Shock Resistance | 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection | NEMA 12 |
| Protective Treatment | TH |
