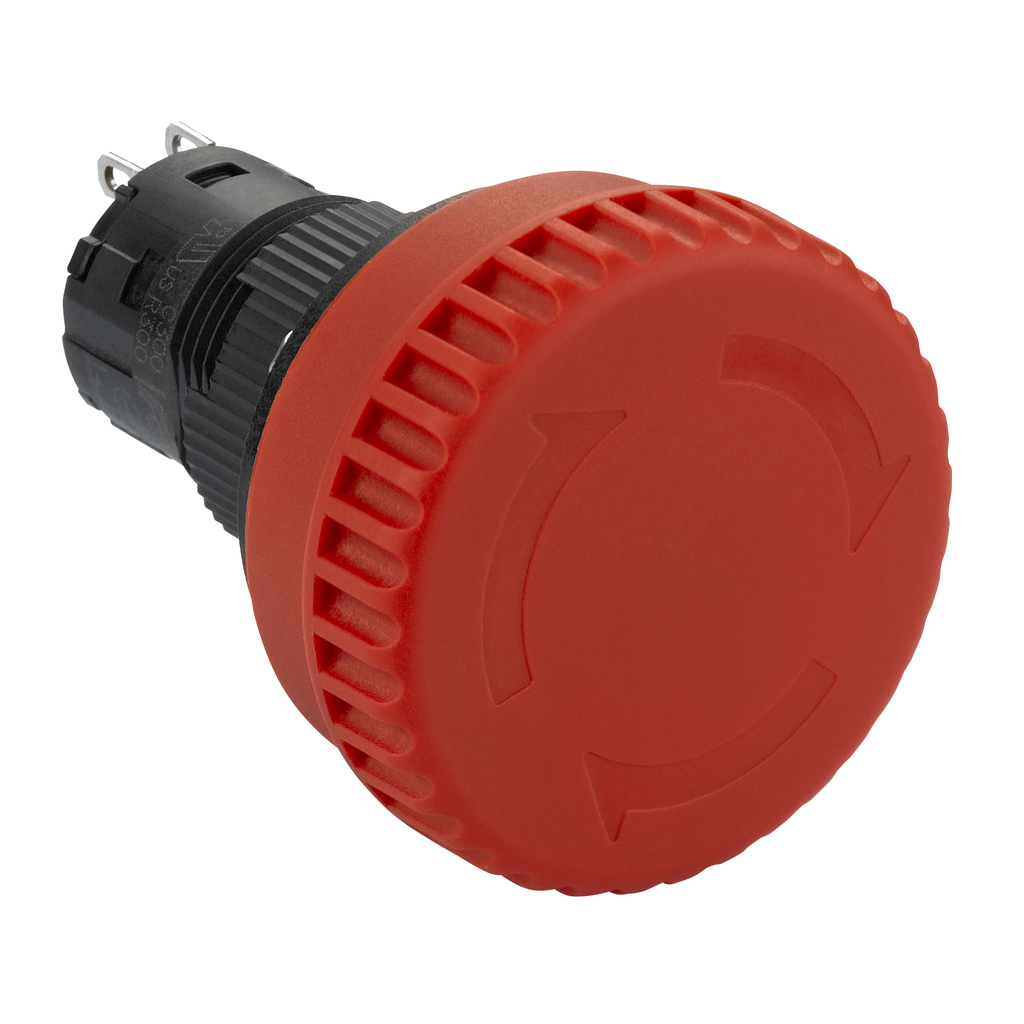

This Harmony XB6 red, complete emergency stop push button is part of the range diameter 16mm plastic, Harmony XB6 monolithic. It has a circular head shape, with a turn/pull to release mushroom, diameter 32mm, with trigger action. It features 2 NC slow break contacts and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.
Brand: Schneider Electric
Add to Quote CatalogueReset |
|
---|---|
Range Of Product | Harmony XB6E |
Mounting Diameter | 16 mm |
Type Of Operator | trigger action |
Connections - Terminals | solder terminal <= 0.75 mm² AWG 19 |
Product Or Component Type | complete non-illuminated mushroom head push-button |
Shape Of Signaling Unit Head | round |
Contacts Type And Composition | 2 NC |
Bezel Material | plastic |
Operator Profile | red mushroom Ø 32 mm |
Device Short Name | XB6E |
Short-Circuit Protection | 6 A fuse gG IEC 60269 |
[Ith] Conventional Free Air Thermal Current | 5 A |
Insulation Resistance | < 100 MOhm |
Marking | CE |
Net Weight | 0.0194 kg |
[Uimp] Rated Impulse Withstand Voltage | 2.5 kV |
Electrical Durability |
|
[Ui] Rated Insulation Voltage | 250 V 3) |
[Ie] Rated Operational Current |
|
Mechanical Durability | 100000 cycles |
Tightening Torque | 0.6-1 N.m |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1710010EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1710010EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Operation | -10-55 °C |
Standards |
|
Shock Resistance | 500 m/s²mechanical durability |
Vibration Resistance | +/- 0.7 mm 10-500 Hz) |
Ip Degree Of Protection | IP65 IEC 60529 |
Ambient Air Temperature For Storage | -40-70 °C |
