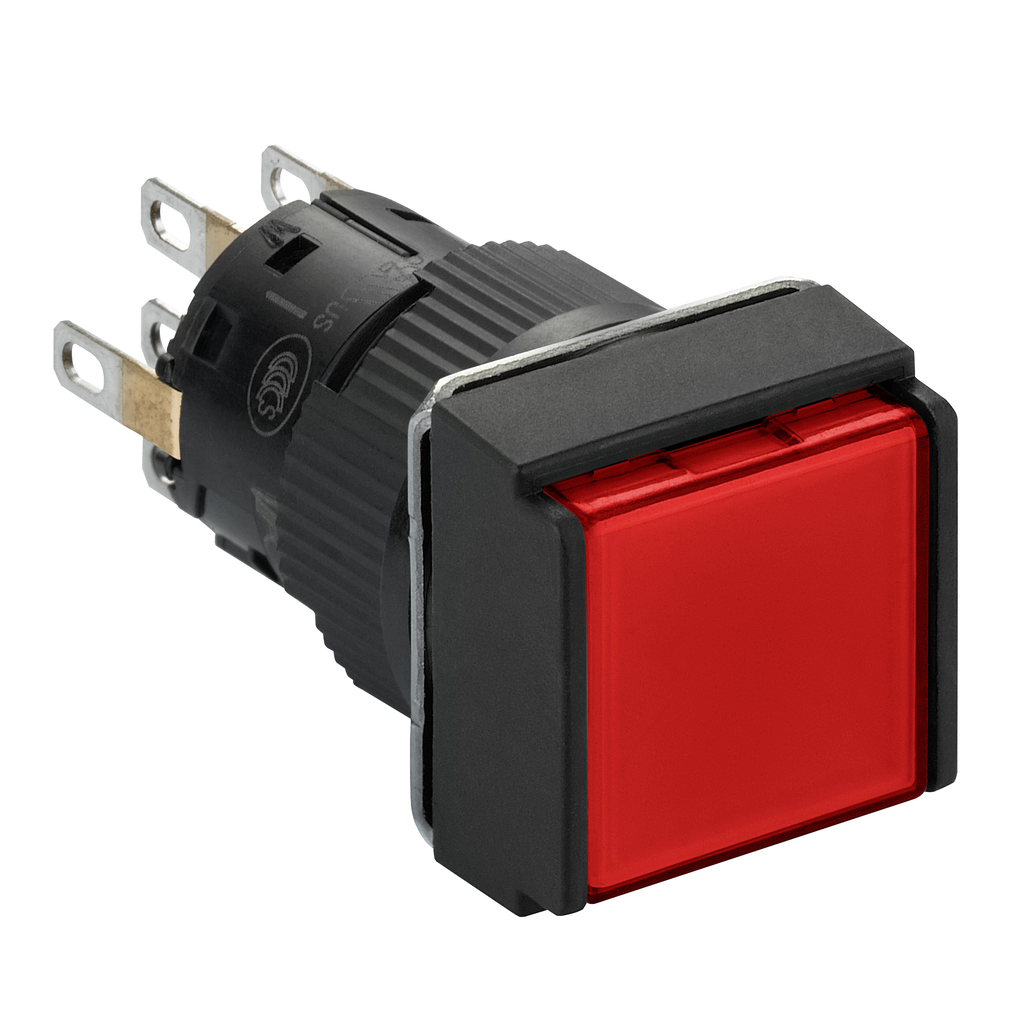

XB6ECF4B2P
Illuminated monolithic push button, Harmony XB6E, square red flush, 16mm, latching, 24V DC, 2CO
Specifications
| Range Of Product | Harmony XB6E |
|---|---|
| [Us] Rated Supply Voltage | 24 V DC polarised |
| Contacts Material | gold-flashed silver |
| Light Source | integral LED |
| Mounting Diameter | 16 mm |
| Type Of Operator | latching |
| Product Or Component Type | illuminated monolithic push-button |
| Shape Of Signaling Unit Head | square |
| Connections - Terminals |
|
| Contacts Type And Composition | 2 C/O |
| Sale Per Indivisible Quantity | 5 |
| Bezel Material | plastic |
| Contact Operation | snap action |
| Operator Profile | red flush |
| Device Short Name | XB6E |
| Warranty | 18 months |
| Height | 18 mm |
| Terminals Description Iso N°1 |
|
| Short-Circuit Protection | 3 A cartridge fuse gG |
| Operating Force | 1.3 N C/O changing electrical state |
| [Ith] Conventional Free Air Thermal Current | 3 A |
| Marking | CE |
| Net Weight | 0.006 kg |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV IEC 60947-1 |
| Current Consumption | 10 mA |
| Electrical Durability |
|
| Service Life | 50000 h |
| [Ui] Rated Insulation Voltage | 250 V 2)IEC 60947-1 |
| Signalling Type | steady |
| Overvoltage Category | II IEC 60536 |
| Mechanical Durability | 250000 cycles |
| Operating Position | any position |
| Electrical Reliability | λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4 |
| Width | 18 mm |
| Depth | 40 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710010EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -10-55 °C |
| Standards |
|
| Electromagnetic Compatibility | electrostatic discharge immunity test 8 kV IEC 61000-4-2 |
| Shock Resistance | 20 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration Resistance |
|
| Ip Degree Of Protection | IP65 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
